Fully auto cylinder Grooving Post Press Equipment for Grey board / MDF upto 3.0mm Dust Free
This Auto grooving machine is designed for industrial cardboard, grey board, MDF grooving
It adopts auto belt feeding, auto feeding correction, auto waste collecting, high accuracy, dust free, no noise, high efficiency, energy saving and environment protection.
Features:
1, slotting effect: no edges, no dust, V groove surface smooth.
2, environmental protection and energy saving: The total power consumption 3.7kw, cardboard slotted angle materials a whole intact recoverable (recycling material under the angle to arrive tariff revenue and tool consumption), low noise.
3, the production efficiency: automatic plate feeding speed 8 hours can produce about 30,000 boxes.
4, tool life: with a special sharpener (simple), grinding a knife just 2 minutes, customers can own sharpening.

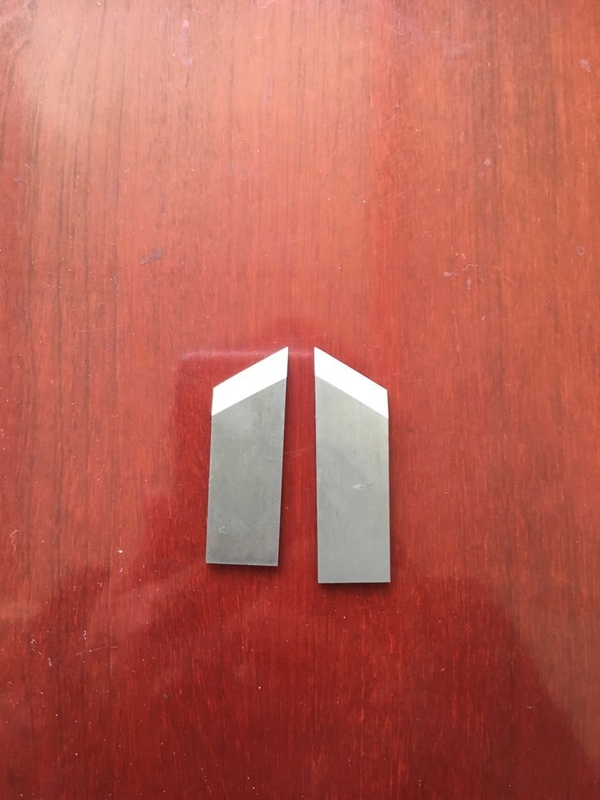

5, the tool angle adjustable: two separate blade fixed with clamps, different angles without custom blades, can adjust itself on the machine.
6, no need to adjust the different thickness of cardboard can be slotted, easy to use.
Technical Parameters
|
Feeding size width |
Width 50-850mm |
|
Feeding size length |
Length 110-950mm |
|
Accuracy highest |
±0.05mm |
|
Accuracy normal |
+/-0.1mm |
|
Highest speed |
30-32M/min (200x200mm) 110-120pcs/mins |
|
Normal speed |
20-25M/min(200x200mm)70-90pcs/min, 20-25m/min |
|
Grooving angle |
80-140 degree adjustable |
|
Board thickness |
300gsm-3.0mm |
|
Grooving lines |
9 lines at the same time |
|
Total power |
3.0kw |
|
Machine size |
2100x1400x1350mm |
|
Machine weight |
1480KG |
