Fully Automatic Steel Rule Auto Bender Machine For Diecut Maker

Fully Automatic Steel Rule Auto Bender Machine For Diecut Maker

Diecut Maker Auto Bender Machine

Auto Bender Machine For Steel Rule Dies

Dieboard making Auto Bender Machine

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Auto Bender
Dieboard Making
Size Of Machine:
550 Kgs
Cutting Blade Height:
Cutting Blade Thickness:
Supporting Design Format:
DXF、AI、PIT(AI, Plt Can Be Imported Directly)
Operating System:
90° Min. R No Need Manual Bender:
180°min. R No Need Manual Bender:
Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
Packed in Wood case 2440x800x1500mm
Delivery Time
Within 10 working days after received your payment
Payment Terms
T/T or L/C at sight
Supply Ability
10 sets per month
Product Description

Advanced Computerized steel rule Auto Bender Machine for Dieboard making





90° min. R no need manual bender

1.0 mm

180°min. R no need manual bender


Max. bend R


Max. bend angle


Min. 90° bend size

3 mm

Min . bend dia.


Tail min. cut size


Feeding accuracy


Bending flatness

±0.2 mm

Notching size

 Width 6mm   Any height adjustable

Design format

 dxf, ai, plt


 Ventilation, dry, below 40C

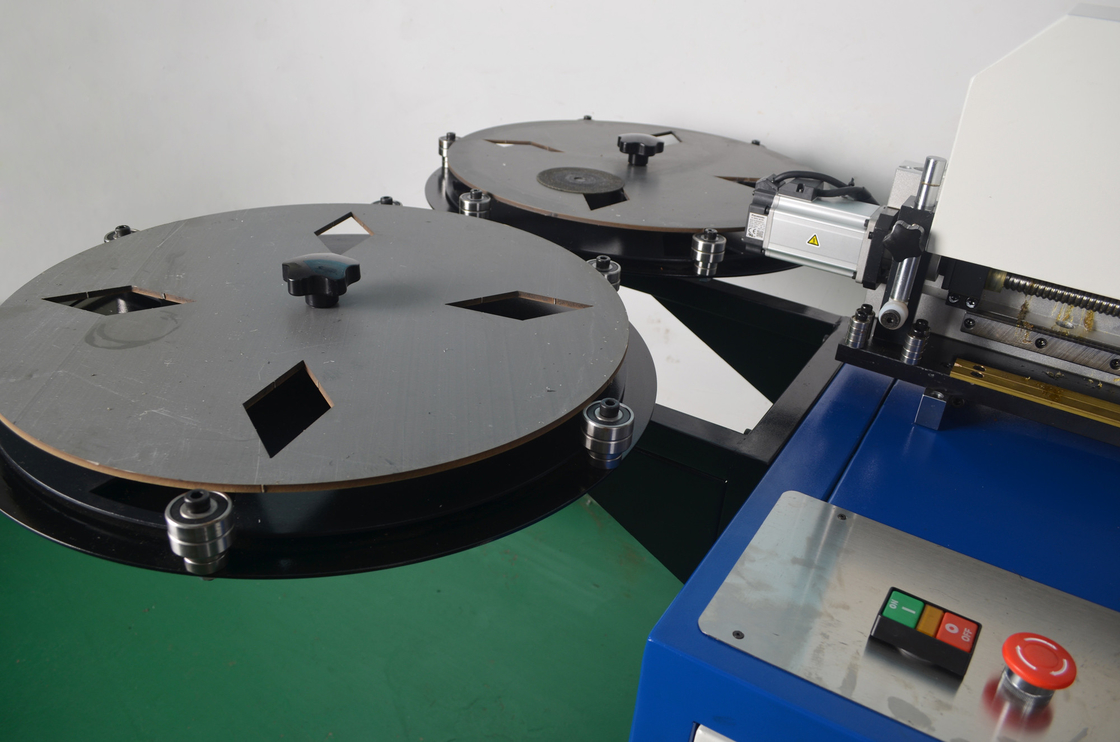

Fully Automatic Steel Rule Auto Bender Machine For Diecut Maker 0


A,Main specification:

Size: 2.3m×0.7m×1.45m

Weight: 450Kg

Electricity:220V AC    50Hz  1.4kw

Compressor requirement:5Kg/cm2 pressure,10mm pipe diameter

Operating system:Microsoft Windows XP Windows7

Supporting Design format:DXF,AI,PIT(AI, plt can be imported directly)

Cutting blade height:8.0-30.0mm

Cutting blade thickness:0.45-1.05mm

Lipping:Using electric motor control(23.8mm to 30mm height)Auto lipping, software controls lipping height

Notching (Bridge):Width 6.0mm, with any height


Rule cassette 2 sets

Bending stick 4 pcs
Notching tool 2 sets
Tool               1 box
Computer      1 set

Control software in English

Lipping matrix   1 set


Machine component:

Panasonic A5 servo, Japan Shimpo reducer, Taiwan HIWIN leading bar, OMRON sensor, Japan SMC Pneumatic, AirTAC magnetic valve


PM 2015 is a multi-functional automatic bending machine, the model with automatic level olecranon, automatic bridge site (anti-card knife with inflatable waste discharge), automatic bending, two-way cut, continuous screw feeding, Korean plug pin bend.

  1. Humanized design, operation easier. Its function; automatic continuous level bridge site, around the level of the olecranon automatic, two-way flat cut, continuous processing mode without manned.

(Advantage: supporting continuous feed screw pins are bent, not only to ensure accuracy while bending more in place, reducing the time to repair a knife)

  1. The portable pole plate design, the tool changer more secure, convenient and quick.

Cut mode, when the election is no need to identify the graphic chart automatically reverse direction can be easily cut, this function effectively solved due to the head-end graphics straight shorter or restricted and can not cut the drawbacks. Intuit do not play a significant role when unattended, saving time and cutting jobs expected to make more convenient machete.

  1. The software can be self-developed free lifetime upgrades, support layer selection, fully supported formats are: PLT, AI, DXF. (Can make changes according to customer special requirements)
  2. Matsushita servo feed fast and precise, using Taiwan silver rod, pneumatic double clip blade slip design, high accuracy. Highlighting the effect for bending flower knife, wavy knife.
  3. Operation is simple, the only Intuit shortcuts custom module, the user can customize the settings shortcut keys, editing and processing in real-time switching interface, full mouse operation also makes the operation easier. Click and marquee graphics support, from the pick to the processing without waiting, while the pick side processing. Processed map support save feature. Knife material suitable height: 8 mm-30 mm, thickness of ordinary type material for knife 0.45 mm-0.71 mm (thickness 1.07 special hydraulic system with optional)Scope: dolls, paper, cartoon, logo, suction Schomburg, stickers and so on. For industry: packaging, printing, footwear, electronics. All wearing parts quality assurance, high strength, toughness, and the implementation of quality assurance. Charge after the warranty period of wearing parts and maintenance costs of the company are the main pipe line transmission of information. Subject to final approval.
  4. 1 year warranty




Business Organizations

Dieshop, Dieboard factory, Printing press, Packaging factory



Competitive Advantage:

1. We have been specialized in Diecutting industry since 2001

2. Our machine is using Korean YDWS style bending to get very small angle, and using Japanese Multi-Bender style servo screw bar feeding rule to ensure accuracy

3. We provide complete set of dieboard making equipment like laser cutter, manual bender, jigsaw machine, etc.

4. Customized size and spec /OEM available

Auto bender machine for die cutting
