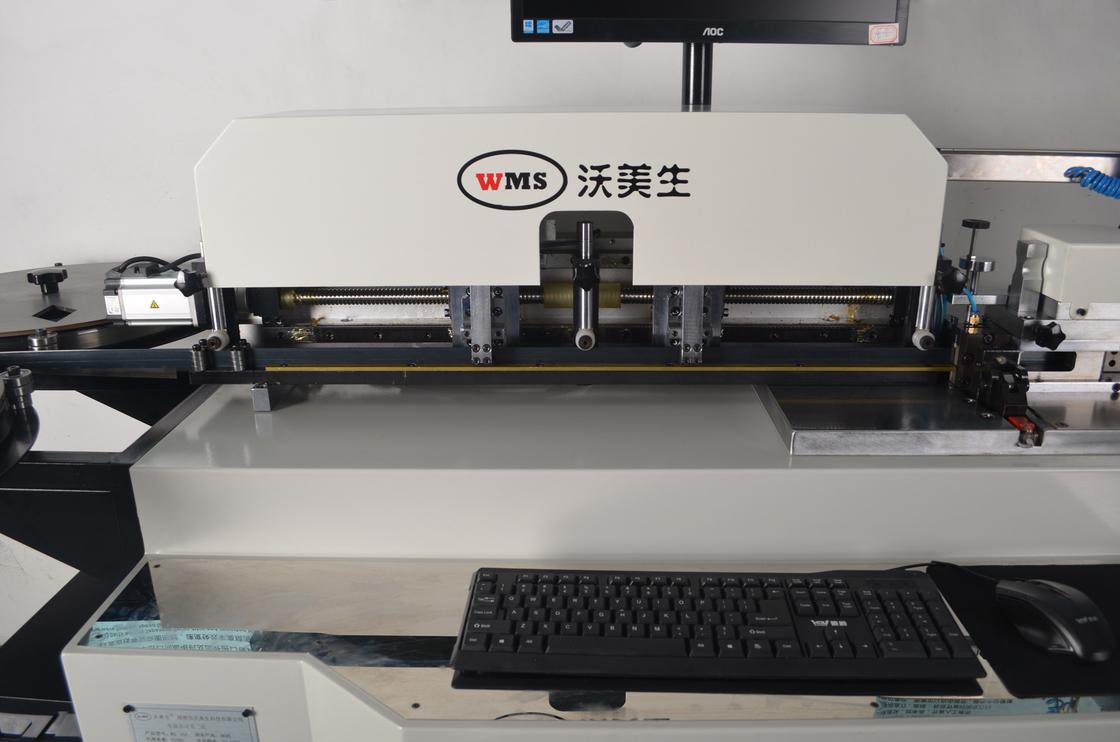

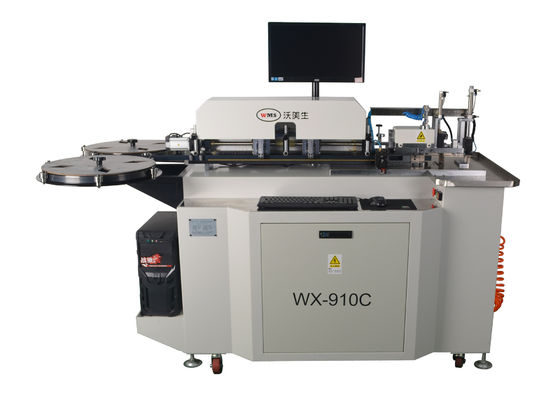

Steel Rule Auto Bender Fully Automatic Machine For Diecut Maker

Steel Rule Auto Bender Fully Automatic Machine For Diecut Maker
Steel Rule Auto Bender Fully Automatic Machine For Diecut Maker Steel Rule Auto Bender Fully Automatic Machine For Diecut Maker Steel Rule Auto Bender Fully Automatic Machine For Diecut Maker

Large Image :  Steel Rule Auto Bender Fully Automatic Machine For Diecut Maker

Product Details:
Place of Origin: China
Brand Name: ProMega
Certification: CE
Model Number: PM-2017-C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 12800USD--40000USD
Packaging Details: Packed in Wood case 2440x800x1500mm
Delivery Time: Within 10 working days after received your payment
Payment Terms: T/T or L/C at sight
Supply Ability: 2 sets per week

Steel Rule Auto Bender Fully Automatic Machine For Diecut Maker

Product Name: Auto Bender Application: Die Cutting Area
Size Of Machine: 2.4m×0.6m×1.5m Weight: 490 Kgs
Cutting Blade Height: 8.0-30.0mm Cutting Blade Thickness: 0.45-1.05mm
Supporting Design Format: DXF、AI、PIT(AI, Plt Can Be Imported Directly) Operating System: English
90° Min. R No Need Manual Bender: 1.0mm 180°min. R No Need Manual Bender: 2.0mm
High Light:

Steel Rule Auto Bender Machine


Diecut Maker Auto Bender


Auto Bender Machine For Die Cutting

Advanced Computerized steel rule Auto Bender Machine for Dieboard making





90° min. R no need manual bender

1.0 mm

180°min. R no need manual bender


Max. bend R


Max. bend angle


Min. 90° bend size

3 mm

Min . bend dia.


Tail min. cut size


Feeding accuracy


Bending flatness

±0.2 mm

Notching size

 Width 6mm   Any height adjustable

Design format

 dxf, ai, plt


 Ventilation, dry, below 40C


Steel Rule Auto Bender Fully Automatic Machine For Diecut Maker 0


A,Main specification:

Size: 2.3m×0.7m×1.45m

Weight: 450Kg

Electricity:220V AC    50Hz  1.4kw

Compressor requirement:5Kg/cm2 pressure,10mm pipe diameter

Operating system:Microsoft Windows XP Windows7

Supporting Design format:DXF,AI,PIT(AI, plt can be imported directly)

Cutting blade height:8.0-30.0mm

Cutting blade thickness:0.45-1.05mm

Lipping:Using electric motor control(23.8mm to 30mm height)Auto lipping, software controls lipping height

Notching (Bridge):Width 6.0mm, with any height


Rule cassette 2 sets

Bending stick 4 pcs
Notching tool 2 sets
Tool               1 box
Computer      1 set

Control software in English

Lipping matrix   1 set


Machine component:

Panasonic A5 servo, Japan Shimpo reducer, Taiwan HIWIN leading bar, OMRON sensor, Japan SMC Pneumatic, AirTAC magnetic valve


PM 2015 is a multi-functional automatic bending machine, the model with automatic level olecranon, automatic bridge site (anti-card knife with inflatable waste discharge), automatic bending, two-way cut, continuous screw feeding, Korean plug pin bend.

  1. Humanized design, operation easier. Its function; automatic continuous level bridge site, around the level of the olecranon automatic, two-way flat cut, continuous processing mode without manned.

(Advantage: supporting continuous feed screw pins are bent, not only to ensure accuracy while bending more in place, reducing the time to repair a knife)

  1. The portable pole plate design, the tool changer more secure, convenient and quick.

Cut mode, when the election is no need to identify the graphic chart automatically reverse direction can be easily cut, this function effectively solved due to the head-end graphics straight shorter or restricted and can not cut the drawbacks. Intuit do not play a significant role when unattended, saving time and cutting jobs expected to make more convenient machete.

  1. The software can be self-developed free lifetime upgrades, support layer selection, fully supported formats are: PLT, AI, DXF. (Can make changes according to customer special requirements)
  2. Matsushita servo feed fast and precise, using Taiwan silver rod, pneumatic double clip blade slip design, high accuracy. Highlighting the effect for bending flower knife, wavy knife.
  3. Operation is simple, the only Intuit shortcuts custom module, the user can customize the settings shortcut keys, editing and processing in real-time switching interface, full mouse operation also makes the operation easier. Click and marquee graphics support, from the pick to the processing without waiting, while the pick side processing. Processed map support save feature. Knife material suitable height: 8 mm-30 mm, thickness of ordinary type material for knife 0.45 mm-0.71 mm (thickness 1.07 special hydraulic system with optional)Scope: dolls, paper, cartoon, logo, suction Schomburg, stickers and so on. For industry: packaging, printing, footwear, electronics. All wearing parts quality assurance, high strength, toughness, and the implementation of quality assurance. Charge after the warranty period of wearing parts and maintenance costs of the company are the main pipe line transmission of information. Subject to final approval.
  4. 1 year warranty




Business Organizations

Dieshop, Dieboard factory, Printing press, Packaging factory



Competitive Advantage:

1. We have been specialized in Diecutting industry since 2001

2. Our machine is using Korean YDWS style bending to get very small angle, and using Japanese Multi-Bender style servo screw bar feeding rule to ensure accuracy

3. We provide complete set of dieboard making equipment like laser cutter, manual bender, jigsaw machine, etc.

4. Customized size and spec /OEM available

Auto bender machine for die cutting
