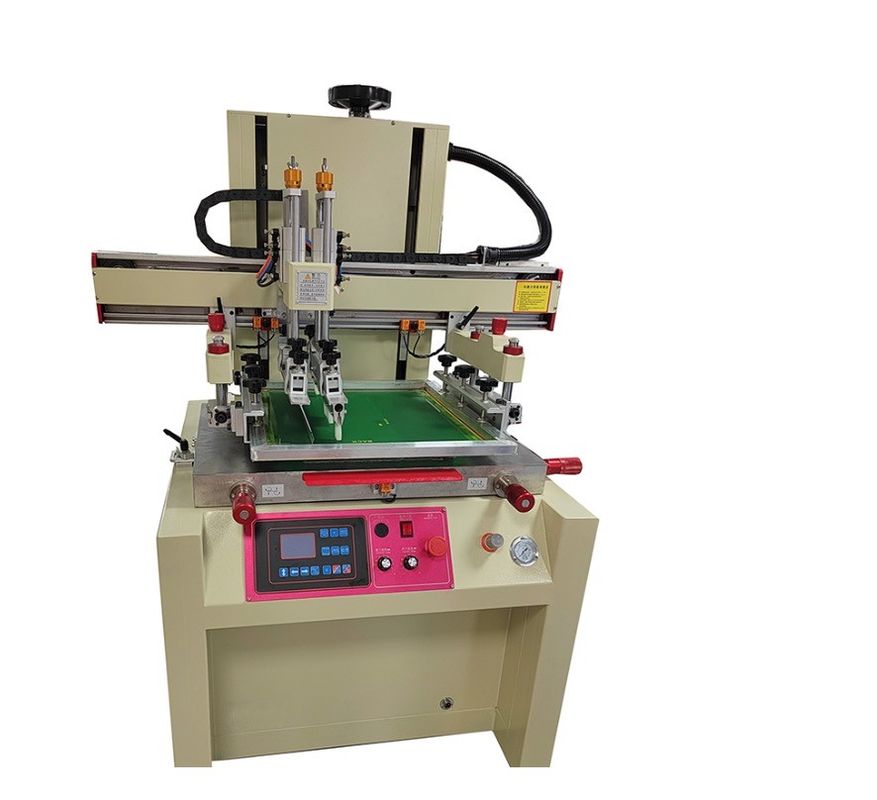

Plane Electric Flat Screen Printing Machine For Textiles Plastic

MK-4060MS plane electric screen printing machine:

This is a flat screen printing machine an electric electric type high precision and high efficiency, the original Japan and Taiwan imported pneumatic components. Double column structure, printing smoothly, small vibration, high precision, the polychromatic overprinter accurate; head left and right sliding guide with precision linear guide; double guide column master arm, version of the installation at the same distance regulating device, printing precision: ± 0.02MM, per hour speed can reach 800 times. Printing mode setting manual / semi-automatic / automatic three models, printing operation of indirect time digital control. Machine head lifting device independent design, the ink scraping knife / oil return, screen and screen cleaning convenient loading and unloading. This machine adopts full package, free maintenance. Safety and beautiful appearance, simple operation, convenient taking, greatly enhance the production efficiency.

Performance introduction:

1 PLC with four keys compiling program, durable, easy maintenance.

2 kinds of printing printing action design cycle, the user can freely choose the printing process.

3 all aluminum body, surface metal paint.

4 double column lifting structure, high precision, stable running.

The 5 blade head is driven by the motor, stable and reliable, high precision.

The 6 doctor constant pressure device, ensure that the pressure in the printing process stability

The 7 doctor / doctor blade angle adjustable.

8 high precision fine-tuning table, with self-locking device, adjusting precision can reach 0.01MM.

Net frame 9 position can be around, around, the level adjustment.

10 print head can be raised function, is convenient to take and put the screen.

11 Taiwan Shilin inverter to adjust the left and right sliding speed.

12 the work table is equipped with emergency stop device, to prevent the injury of hands.

Adaptation scope:

this machine is suitable for printing PCB plate, silica gel, textiles, plastic buttons, PET, cardboard, nameplate, trademark, IC plate, film switch circuit, mobile phone lens, glass, liquid crystal display and flat material etc..

Technical parameters:

Platen Size: 400*600mm printing speed: 800 times per hour

largest printing area: 350*500mm power source: 220V 50-60MHZ/600W

maximum frame size: 600*900mm air pressure: 0.4-0.6MPA

table of bidirectional trimming size: 10 ± 10mm size: 750*600*1700mm

blade angle adjustment: 0-45 ° weight: 300KG

maximum printing height: 0-50mm
