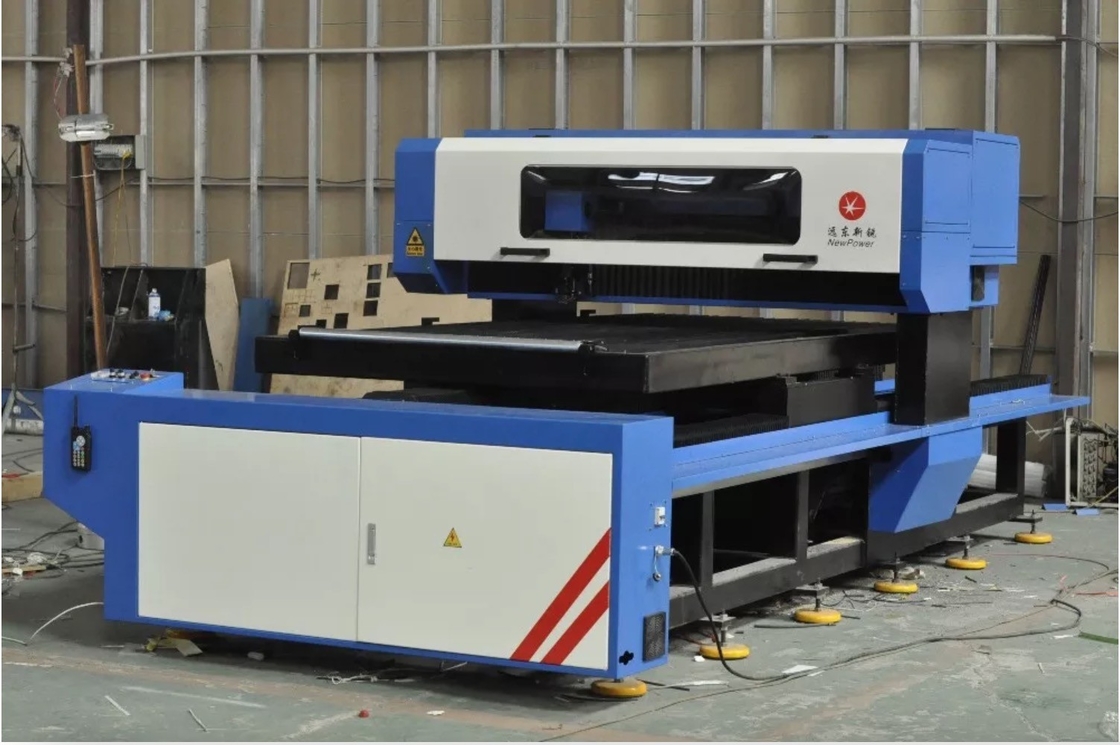

Flat Board Laser Cutting Machine For Die Cutting

Flat Board Laser Cutting Machine For Die Cutting

Flat Die Board Laser Cutting Machine

Die Cutting Laser Engraving Machine

20mm Acrylic Laser Cutter

Model Number:


Contact Us

Request A Quote
Product Details
LASER CUTTING, Laser Cutting Machine For Die Making
Applicable Material::
Acrylic, Leather, MDF, Metal, Plywood, Laser Cutting
Cutting Area::
1250*1250 Mm 1250*1850 Mm 1250*2500 Mm
Cutting Speed::
0-300mm/min, 20-25 Meter/hour
Graphic Format Supported::
AI, Dwg, DXF
Cutting Thickness::
Cooling Mode::
Control Software::
Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
wooden case
Delivery Time
Payment Terms
L/C, T/T
Product Description

Product Description

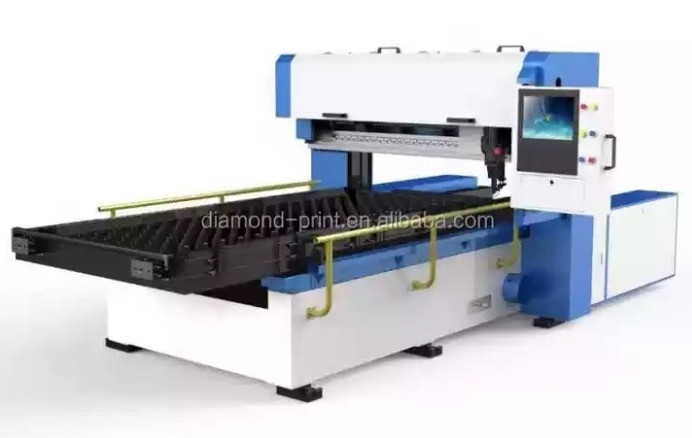

The laser cutting machine is configured with a travelling table and stationary gantry design, to provide a rigid and stable platform as well as a small floor space.

A specialized laser cutting machining process package is supplied with the machine, it is very convenient to use or modify the different machine parameter correspond to different slit width or different thickness.

Each laser cutting machine includes the proprietary laser machining technology, the High-speed response Laser Power Slope adjusts the switch light –spot, tool path compensation, leapfrog movement, re-positioning and retracting machining.

The laser cutting machine is configured with a three directions optical design, available for different customer environments. The machine is enclosed optical path and positive pressure dust removal, to ensure the long life of the lens.


Laser Source
Rofin 350W / Laser Tube 400w
Gross Power
Working Area
1250 x 1250 mm
1250 x 1850 mm
1250 x 2500 mm
The type of optical path

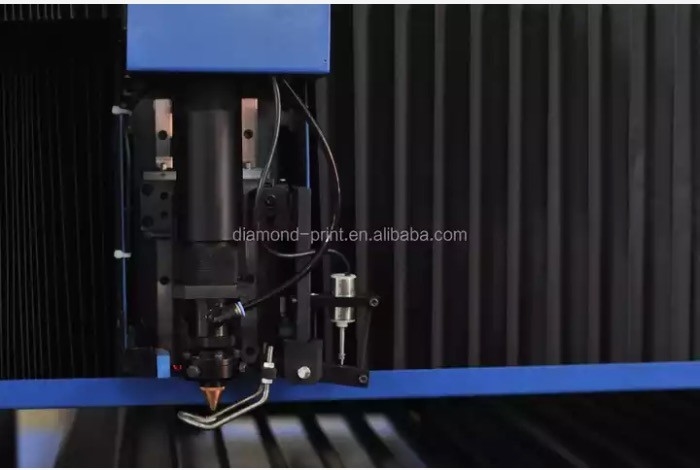

Fixed optical path / Cutting head moving in X axis, working table moving in Y axis
Driving Material
X,Y,Z axis are using precision ball screw drive
Engraving Material
Plywood: 6-20 mm; Acrylic: 3-20 mm; MDF: 3-12 mm; Steel: 1-3 mm
Working Temperature
Power supply
Our Service

※Manual and video will be sent to you for training and learning how to install the laser cutting machine.
Internet remote assistance is available everyday.
※Engineer could be sent to you for dealing with the installation and training.
Users will take responsibility to take care of tickets, accommodation, food and cooperating with the engineer we dispatch.
※You get 5 days for free training, if you are in our laser cutting machine factory.

Machine Features

1.Long men type structure, good rigidity, high stability, compact structure, small occupation area.
2.Adopts imported linear guide rail, high precision ball screw drive system.
3.Hybrid optical path, path is short, easy to maintain.
4.Machine tool light guide system, a closed path, to ensure that the lens clean.
5.The exhaust system, smooth ,smoke better.
6.Contact type accurate servo tracking system, sensitive reaction ,to ensure consistency of cutting quality.
7.lmport CNC special system, ensure the high stability of equipment and high anti-interference; cutting software ,special easy to use, automatic clamping system fast stable reliable convenient.
8.Multi parameter control. automatic timing, real-time monitoring, can store multiple sets of processing parameters, thereby reducing the auxiliary processing time.

Packing & Delivery

Packing Details : All parts will be packed in wooden case

Delivery Details : 3-30 days after order

Payment Terms: 30 as deposit, all balance before shipment

Flat Board Laser Cutting Machine For Die Cutting 0


Our Certifications

Flat Board Laser Cutting Machine For Die Cutting 1



Q: Are you trading company or manufacturer ?

A: We are trading company, but we have strategic relationship with some laser cutting machine factories. We have our own technician who will support the client directly.


Q: How long is your delivery time?

A: Generally it is 5-10 days if the laser cutting machines are in stock. or it is 20-30 days if the laser cutting machines are not in stock, it is according to situation.


Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight. We also can make some videos to show the whole cutting process according to clients desigh


Q: What is your terms of payment ?

A: 30% TT in advance. ,balance before shipment.
