Product description:

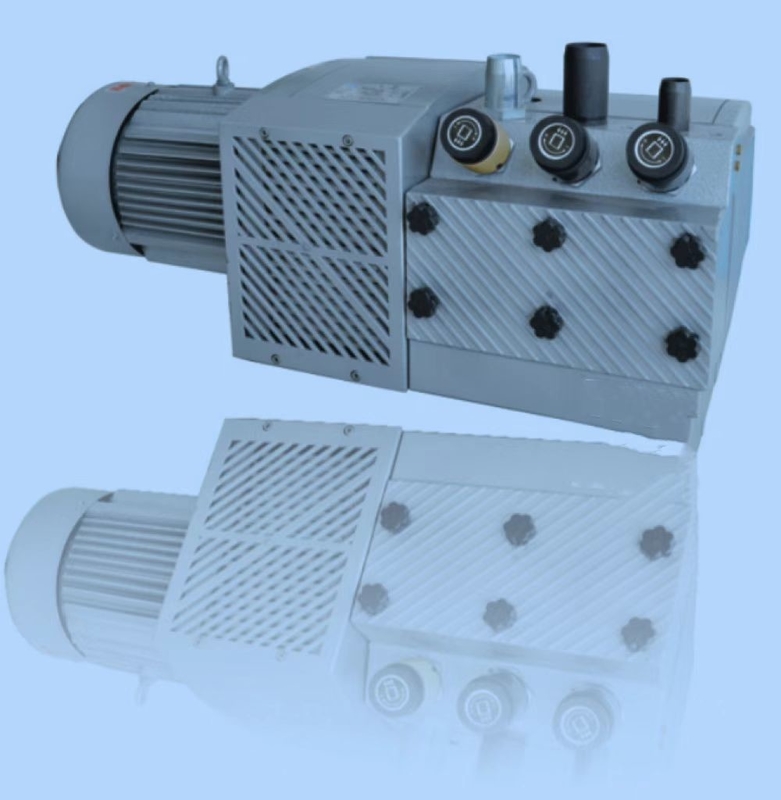

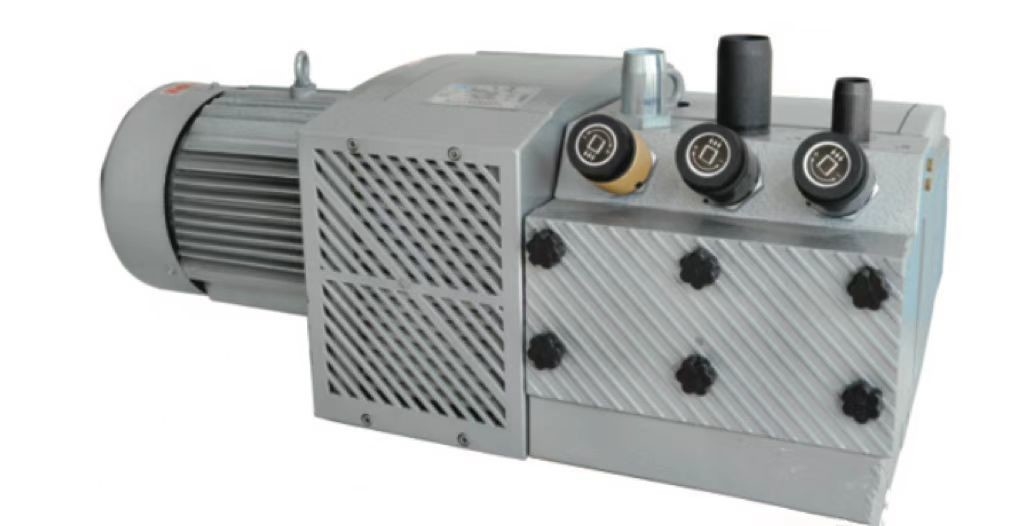

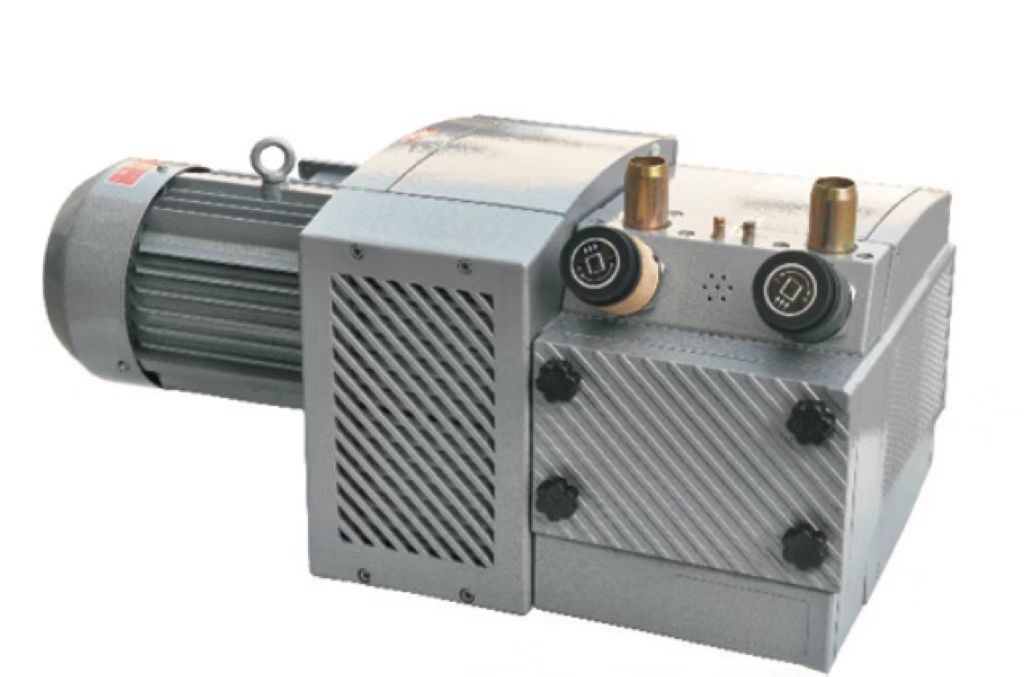

ZYBW-E Series
Self-Lubricating Pressure Air Pump
ZYBW-E Series can pump into air and pump out air at the same time,it has such advantages as excellent performance,low noise,low temperature rise,easy maintenance,and the original air is without oil.
It is vastly used in printing,automatic packing,grain processing,ceramics printing,environmental protection industy and other industries.We can design and manufacture them according to the special requirements of customers.
| Item | Unit | ZYBW60E | ZYBW80E | ZYBW100E | ZYBW140E |
| Capacity | M³/h | 60 | 80 | 100 | 140 |
| Rated pressure | kPa | 60 | 60 | 60 | 60 |
| Rated vacuum | kPa | -60 | -60 | -60 | -60 |
| Motor rating | Kw | 3 | 3 | 5.5 | 7.5 |
| Motor speed | r/min | 1420 | 1420 | 1420 | 1420 |
| Noise level | dB(A) | 66 | 70 | 72 | 76 |
| Intel port thread | G’ | 1’ | 1’ | 1½’ | 1½’ |
| Weight | Kg | 82 | 86 | 126 | 140 |
| Pump size | mm | 730*360*310 | 734*360*310 | 882*460*336 | 884*460*336 |
-
