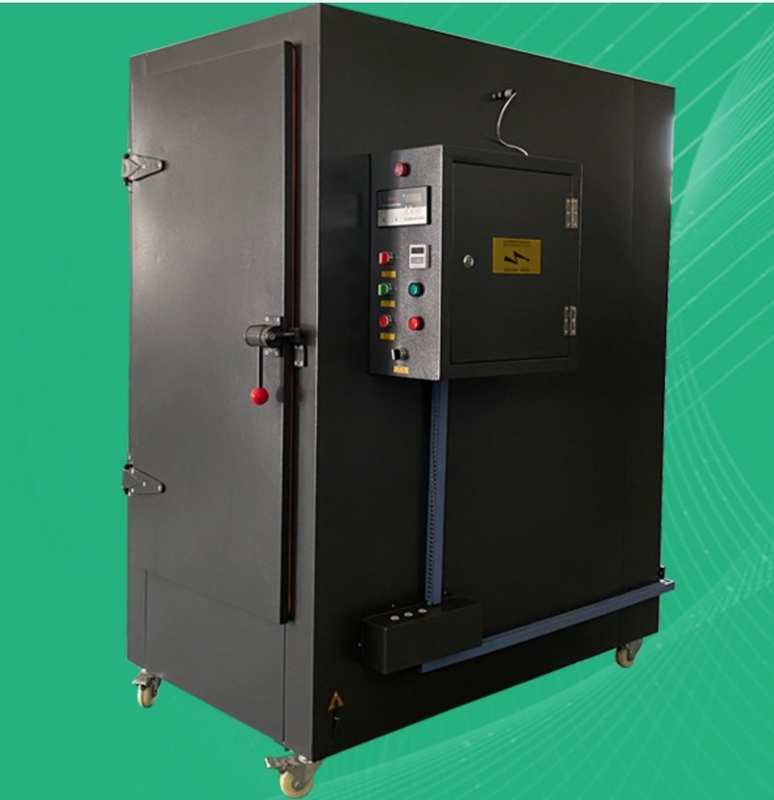

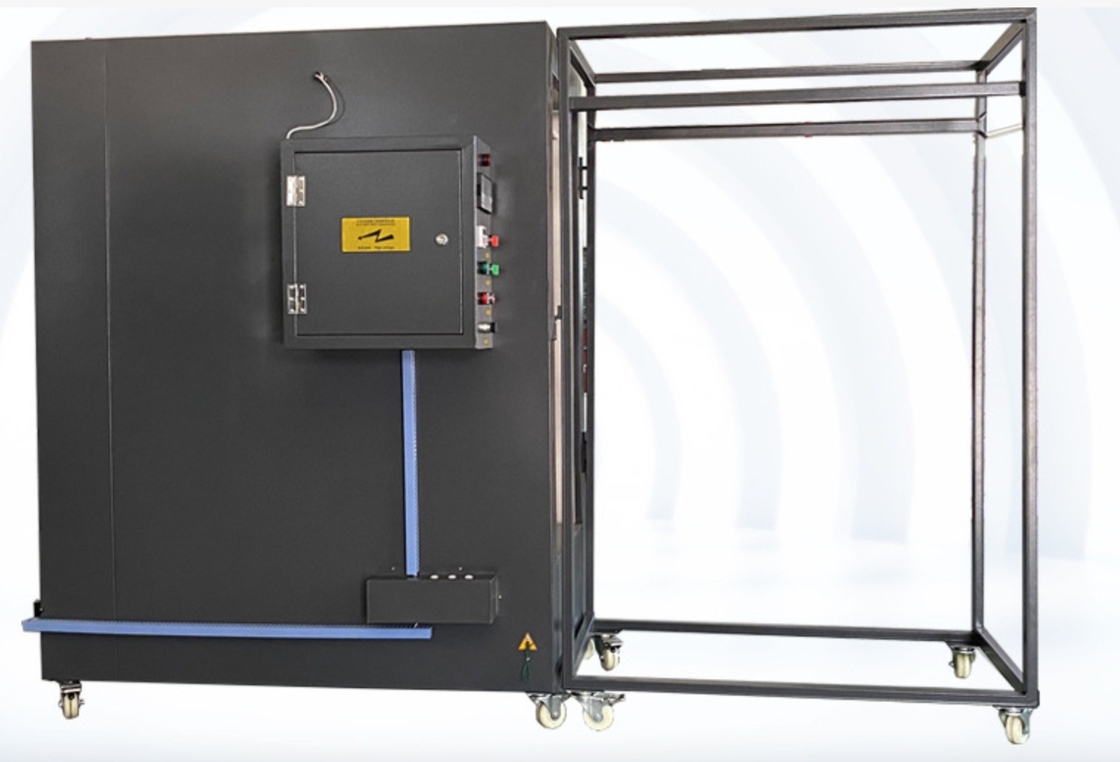

15kw CTP Plate Baking Oven For Offset Printing Plate
CTP Plate Baking Oven
,Offset Printing Plate Baking Oven
,15kw Plate Baking Machine
china CTP plate baking oven for offset printing plate
Performance Characteristics :
· Microcomputer temperature control, precise temperature control system and excellent heat insulation system.
·Fully closed hot air circulation, the temperature of the baking plate is stable, the heat distribution is uniform, and the plate deformation is avoided.
·Two separate temperature control system
could avoid the stopping for the single fault,to ensure the progress of the work.
·Vertical plate double suction plate frame, reduce high temperature leakage, save power consumption.
Timing starting/shutting equipment, whole sealing machine case design, avoiding the hot gas running out.
·Fine plate locking equipment, the plate can be taken out conveniently.
·
Automatic alarm when the roasting is over, accurate temperature control, fine heat insulation system, plates do
not bend.
| 机型 Model | KYHL-880型 | KYHL-1400型 |
| 烤版时间 Baking Time | 6-8 min | 6-8 min |
| 最大烤版规格 Max.Size | 1100×880mm | 1100×1400mm |
| 最大烤版量 Max.Quantity | 8张 | |
| 温控范围 Baking Temperature | 20-250℃ | |
| 电源 Power Supply | AC380V 50/60Hz60A | |
| 加热功率 Heating Power | 15kw | 18kw |
| 净重 Net Weight | 520kg | 620kg |
| 外形尺寸 Outline Dimension | 1280×800×1720mm | 1780×800×1720mm |
-
High - End Version 400w 600w 800w Laser Cutting Machine For Die Board Maker
MPS-DS1212 SERIES OF HIGH-END VERSION LASER CUTTING MACHINE FOR DIE BOARD MAKER MPS-DS, the high-end version of medium power laser cutting machine, adopts the principle of constant light path design.it keeps laser in the process of device running, materials are fixed on the platform with the moving platform, thus, it can ensure the stability of the optical path. The advantage of this laser cutting machine: 1. The laser cutting machine equipped with the laser generators
-
Laser Cutting Machine 1000W/1500W/2200W Fast Flow Generator For Die Board Making
1500W 3 Phase Metal Laser Cutting Machine for die cutting Factory Specifications: Model PMH-1812 Laser generator power 1500W max. Laser beam wave 10.6 m Power adjustment 50-1500W X axis travel 1250mm Y-axis travel 1850mm Positioning accuracy +/- 0.05mm/m Maximum positioning speed 10m/minute max. Control system motion control card / NC Transmission system screw guide Driving system Three-axis servo drive system Optical system X axis Laser moves Y axis table moves Moving system
-
Fully Automatic Auto Bender With Bending Cutting Notching And Lipping 910C Model For 1.5/2/3pt Steel Rule
Completely Computer Control Diecutting rule Auto Bending Machine for Dieboard making Main technical specifications 90 ° minimum R no repair knife 1.5 mm (support blade thickness 0.71) 2.0mm (support blade thickness 1.07) 180 ° minimum R no repair knife 2.5mm (support blade thickness 0.71) 3mm (support blade thickness 1.07) Maximum bending $ 1000 mm Maximum bending angle 120 ° Minimum 90 ° bend size 3 mm Minimum bending full circle diameter 5mm Feeding accuracy ± 0.05mm Tail
-
Digital Printing / Graphic Express Printing Unit Hydraulic Paper Cutting Machine
Hydraulic paper cutting machine Guillotine for Digital Printing for Graphic Express Printing Unit Product Description: Cutting knife and paperweight are controlled by hydraulic transmission. Fully hydraulic drive makes the machine more secure and imported hydraulic parts ensure the stability of the system. The machine has the function of a reference setting and keeping, and the effectiveness of the reference and self-diagnostic function; infrared protection and hands button
