Vertical High Temperature Plate Baking Oven Machine AC380V 50/ 60Hz

Name: Vertical High Temperature Plate Baking Oven Machine AC380V 50/ 60Hz
Brand: Shanghai ProMega Trading Co., Ltd.
SKU: KYHL880, KYHL1400
Price: 4,899.02 USD
Availability: InStock

Specifications

Highlight:

Plate Baking Oven Machine

,

60Hz Plate Baking Oven

,

Vertical Plate Baking Machine AC380V

Power Supply:

AC380V 50/60Hz60A

Baking Temperature:

20-250℃

Model:

KYHL-880； KYHL-1400

Heating Power:

15kw；18kw

name::

Plate Baking Machine

Tags:

Printer Accessories

Thermal Lamination Film

Positive PS Plate

Key Attributes

Brand Name: PM

Model Number: KYHL880, KYHL1400

Place of Origin: CHINA

Minimum Order Quantity: 1 SET

Delivery Time: 15 DAYS

Payment Terms: L/C, T/T

Standard Packaging: WOODEN CASE

Product Description

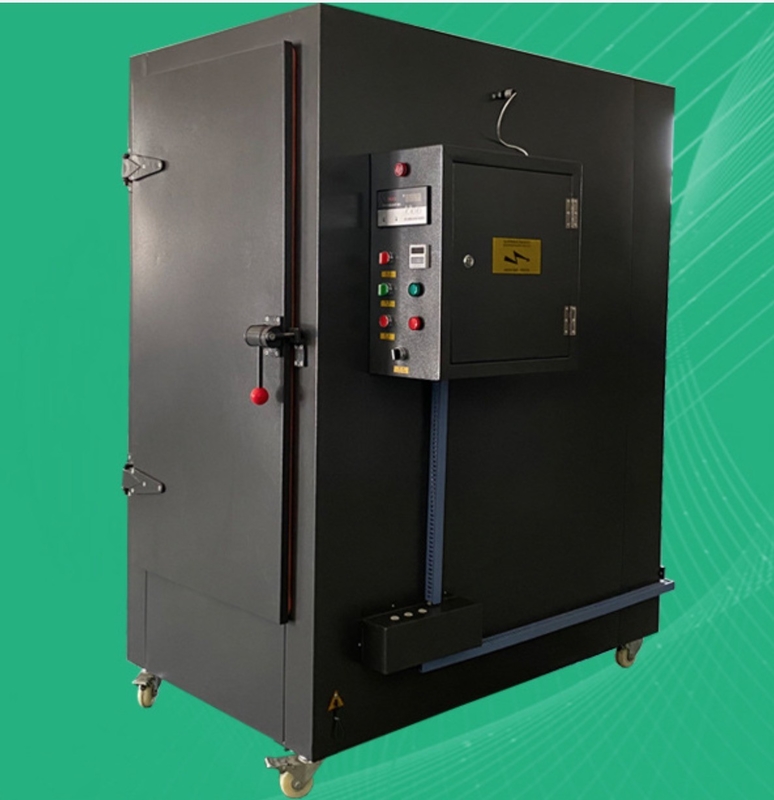

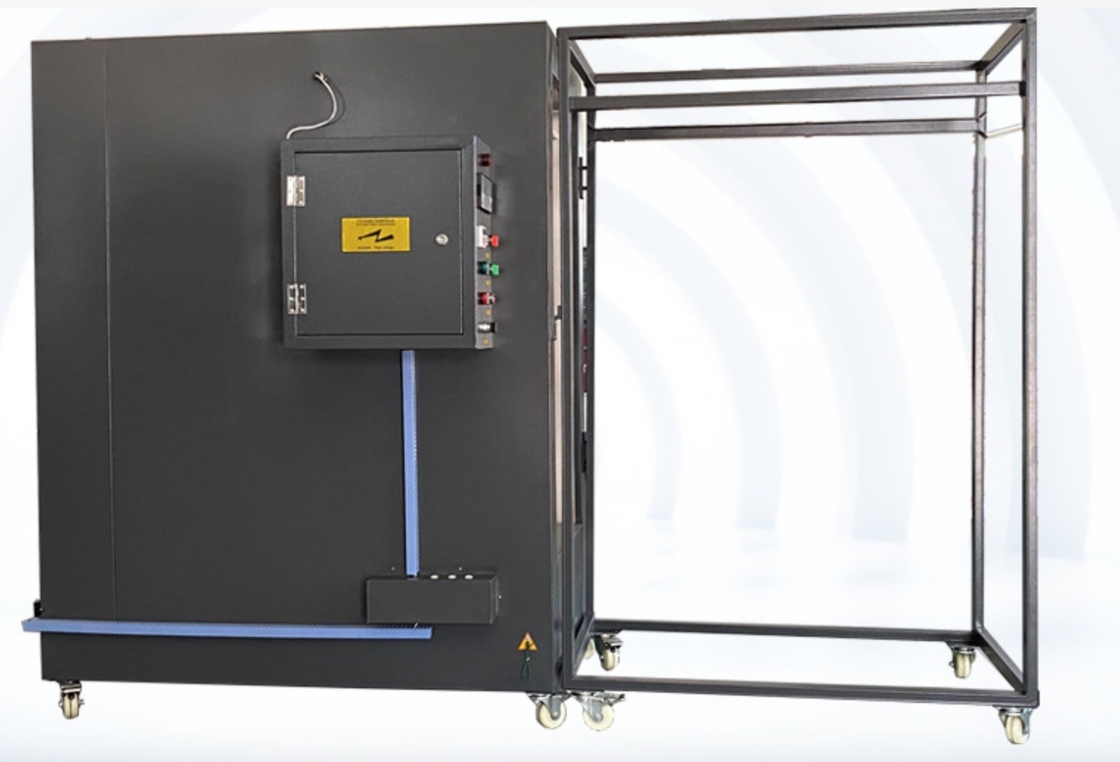

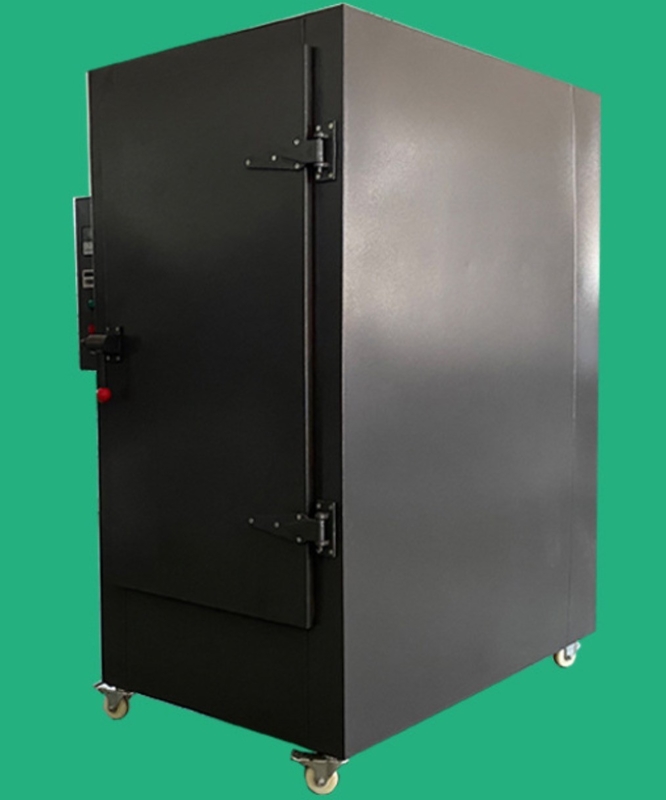

KYHL Vertical High Temperature Plate Baking Machine

Product Introduction:
KYHL Standing PS Plate whirl machine (High Temperature Oven) is special for roasting traditional PS plate and CTp tem-perature sensing plate, to improve the printing quantity of the material, the printing quantity of the roasted PS plate could increase 3-5 times.

Microcomputer temperature control, precise temperature control system and excellent heat insulation system.

Specifications:

机型 Model	KYHL-880型	KYHL-1400型
烤版时间 Baking Time	6-8 min	6-8 min
最大烤版规格 Max.Size	1100×880mm	1100×1400mm
最大烤版量 Max.Quantity	8张
温控范围 Baking Temperature	20-250℃
电源 Power Supply	AC380V 50/60Hz60A
加热功率 Heating Power	15kw	18kw
净重 Net Weight	520kg	620kg
外形尺寸 Outline Dimension	1280×800×1720mm	1780×800×1720mm
