Quality CNC Case Maker Corrugated White Cardboard Cutting Machine factory
<
Quality CNC Case Maker Corrugated White Cardboard Cutting Machine factory
Quality CNC Case Maker Corrugated White Cardboard Cutting Machine factory
Quality CNC Case Maker Corrugated White Cardboard Cutting Machine factory
>

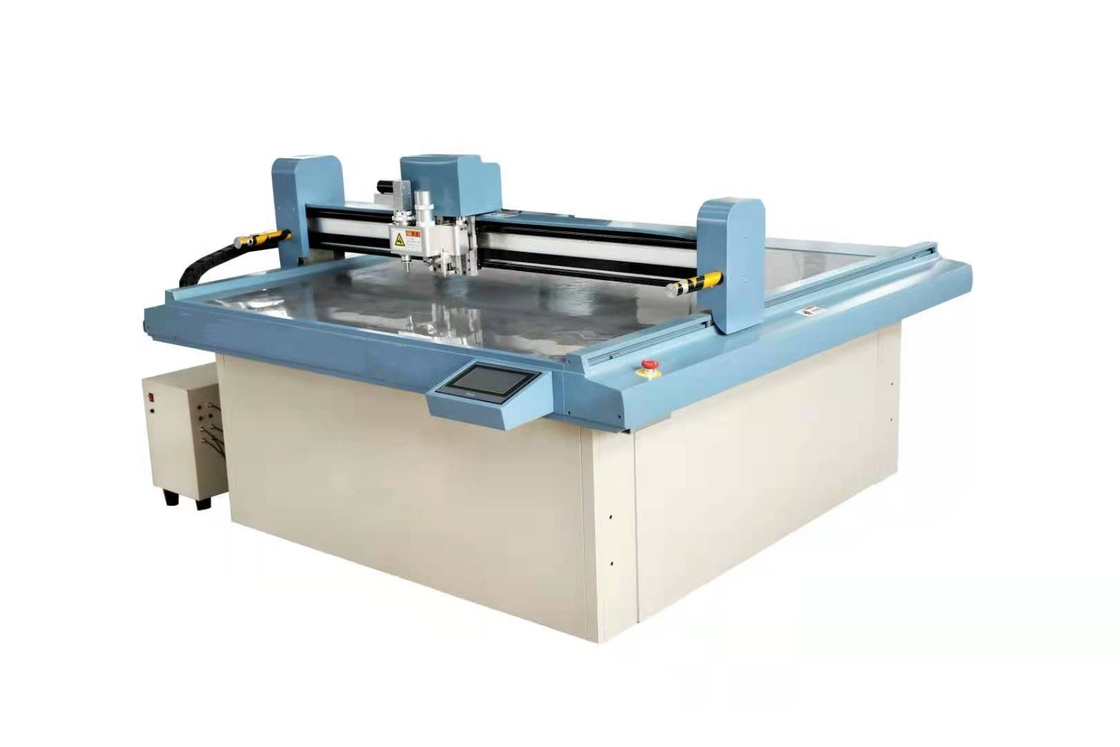

CNC Case Maker Corrugated White Cardboard Cutting Machine

Specifications
Highlight:

Corrugated Cardboard Cutting Machine

,

40mm/s CNC Case Maker

,

3mm Carton Cutting Machine
Product name:
Cnc Machine
Usage:
Sample Maker
Suitable for:
Corrugated Paper, Plastic, Cardboard, Honeycomb Paper, Pvc, Grey Paper
Cutting speed:
40-1500mm/s
min cutting radius:
3mm
Main Function:
Good Partner For Flatbed Uv Printer
Tags:

Bag Packaging Machine

Automatic Packaging Machine

Auto Bagging Machine
Key Attributes
Brand Name: HY
Model Number: 2516
Place of Origin: china
Minimum Order Quantity: 1 set
Price: USD15000-25000
Supply Ability: 5 SETS/MONTH
Delivery Time: 7 DAYS
Payment Terms: L/C, T/T, Western Union
Standard Packaging: WOODEN CASES
Product Description

Carton Box Sample Maker Cutting Machine



Application:
It is used in Packaging, paper box, corrugated paper box, color print etc.
1. Cutting different materials(up to 30 mm):
It can cut such materials as card paper, corrugated paper, duplex board, PVC, grey paper board and composite materials etc.
2.Pressing folding line:
It can press perfect line in the corrugated paper, cardboard, grey board etc.
3. Half-cut and dot line cutting:
It can half-cut on corrugated paper and also dot-line cut on grey board for folding.
4. Location:
It can accurately locate and cut the printed paper box.
5. Drawing function :
It can draw an accurate figure on a paper and a film.
6. V Cutting:

It can be cutting V groove
Specification
Model
ZXD2516
Cutting area(mm)
2500*1600
Floor area(mm)
3150*2440*1150
Cutting material
Cardboard, corrugated paper, PVC, grey paper , foam, composite materials etc
Max cutting thickness
30mm
Positioning precision
≤0.1mm
Fixed type
Vacuum absorption
Cutting precision
≤0.1mm
Min cutting radius
3mm

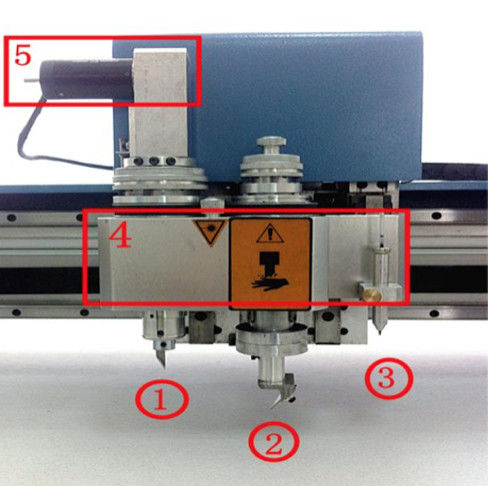

Tool
Oscillating blade , Pen ,Creasing wheel ,Drag knife ,V knife
Command system
HPGL
Travel speed
40-1350mm/S
Power supply
220V±10%50HZ/380V±10%50HZ
Driving system
Servo
Transmission materials
Straight-line guide rails and imported synchronous belts

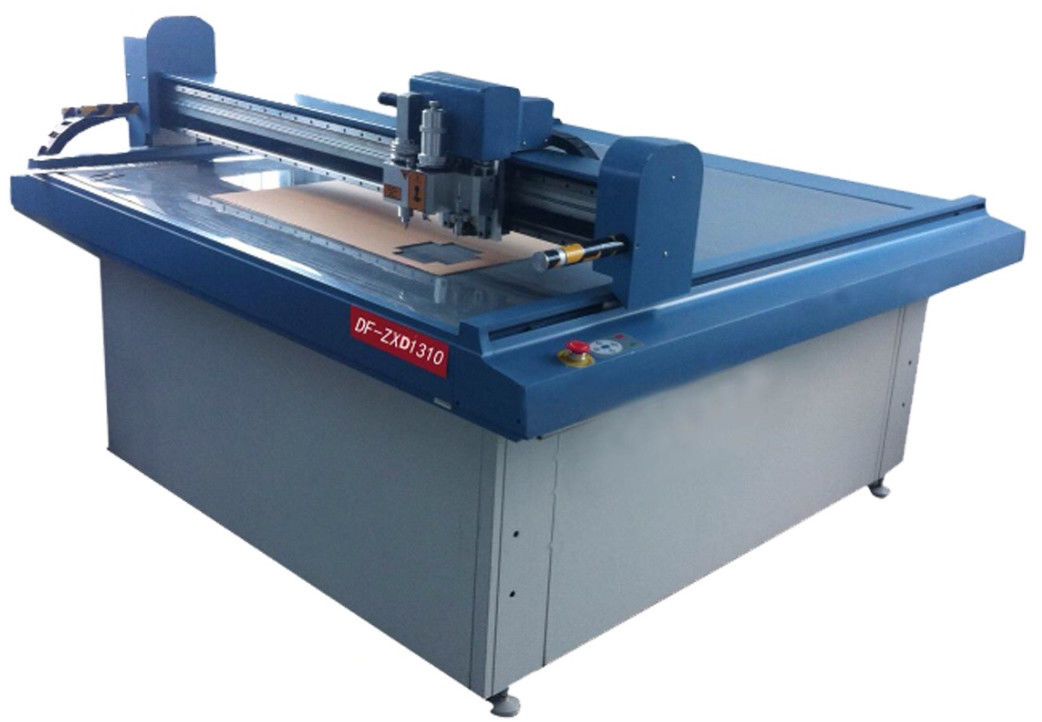

Sample pictures
CNC Case Maker Corrugated White Cardboard Cutting Machine 0

Company Profile

CNC Case Maker Corrugated White Cardboard Cutting Machine 1

Shanghai ProMega Trading Co., Ltd. is a professional manufacturer producing qualified products and equipment in printing and packaging industry. Our company was established in 1998.

Our main products are Auto Bender, Laser cutter, Diecutting machine, Hot stamping machine, Laminator, Dieboard making tools and consumables in Packaging and Printing industry.

FAQ
1. who are we?
We are based in Shanghai, China, start from 2008,sell to South America(25.00%),South Asia(20.00%),Mid East(15.00%),Eastern Europe(10.00%),Southeast Asia(9.00%),North America(5.00%),Africa(5.00%),Central America(5.00%),Southern Europe(5.00%),Oceania(00.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Cutting rule,Auto bender,Laser cutting machine

4. why should you buy from us not from other suppliers?
Our company is in the printing and packaging industry since 2008, we provide machines and consumables mainly in the after printing industry, especially diecutting, paper cutting, box folding and pasting, laser cutting and CNC engraving.

CNC Case Maker Corrugated White Cardboard Cutting Machine 2
