Nonwoven Melt Blown Fabric Automatic Slitting Machine Thermal Paper Bopp Tape Rewinding Machine
Nonwoven Melt Blown Fabric Slitting Machine
,Thermal Paper Rewinder Machine
,Bopp Tape Slitting Machine

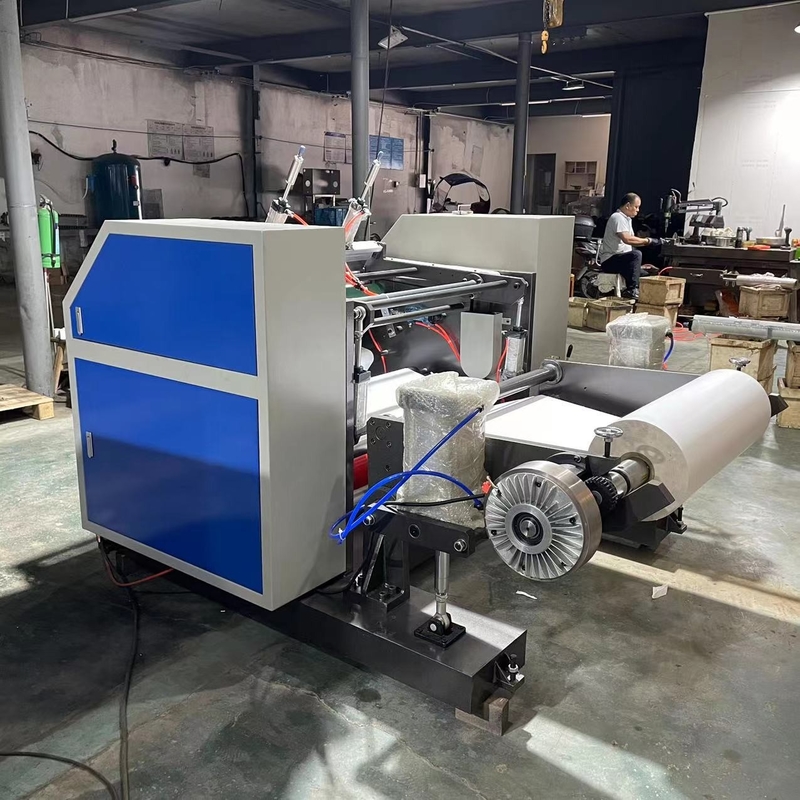

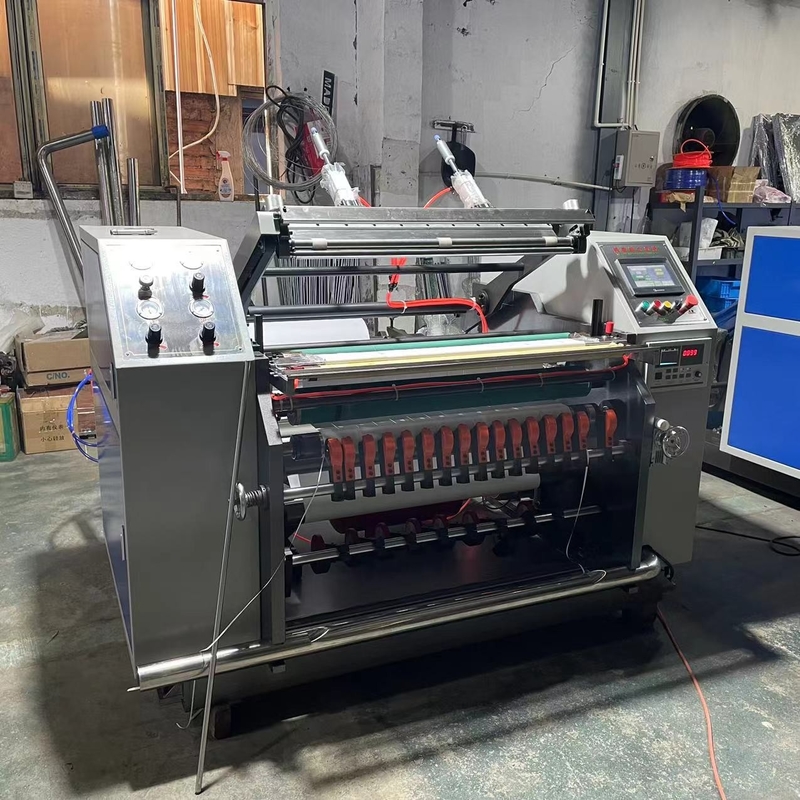

Fully automatic thermal paper slitting machine
Use and structure
The machine is mainly used to cut various specifications of fax paper, cash register paper, computer bills, medical records paper, POS printing paper, ATM paper, film and adhesive trademark paper.
Feature:
This machine adopts MIKOM controllable programming controller, stable control performance, high degree of automation;
The machine adopts MIKOM tension control device, which can precisely control the unwinding tension during slitting, thus ensuring the slitting precision.
The machine is equipped with color touch screen, which can change the related parameters of the equipment according to the user's needs, so that the performance of the equipment is more suitable for the user's production environment and paper performance.Meanwhile, the touch screen can also set the length, printing position and printing length of the product at will.
Main technical parameter:
1. The maximum roll width is 865mm
2. The maximum unwinding diameter is 1000mm
3. The maximum winding diameter is 150mm
4. Slitting width >20mm
5. Working speed: 180m/min
6. Winding core shaft 8mm
7. Orbital 1 pairs
8. Specifications of tubular mandrel: 12,15,17 each 2pcs
9. flattening device 1 set
10. traction device 1 set
11. Power: 3 ph / 380 v / 50 hz / 2.2 KW
12. The size 1800 * 1880 * 1450 mm
13. Weight 1800 kg
14. paper supply shaft 1 pc/layer (optional: air expansion shaft)
15. automatic marking device 1 set
16. automatic tension (sino-us joint venture)
17. fault alarm device for touch screen 1 set
18. automatic counting device 1 set
19. Exhaust device: air pump air supply
20. All cast iron wall board integral frame
21. Partial metal baking paint for the whole machine
