Double Sided Adhesive And Tear Tape Machine 0.1 mm - 2 mm thickness

Specifications
Highlight:

Double Sided Adhesive Tape Machine

,

2mm Tear Tape Machine

,

220V 50HZ Tear Tape Machine
product name:
Adhesive And Tear Tape Machine
Product width:
25mm (1") Upto 500mm (20"）
Applicator Heads standard:
1 Upto 3 Heads
Min tape strip length:
25 Mm (1")
Min distance between spots:
25 Mm (1")
Tape thickness:
0.1 Mm - 2 Mm
Tape width (max):
5mm(0.2") Upto 30mm(1.2")
Internal tape roll diameter:
76 Mm (3")
Weight:
65kg
Dimension:
800x500x680mm (L X W X H)
Tags:

Laser Cutter Machine

Laser Cutting Equipment

Laser Engraving Machine
Key Attributes
Brand Name: PM
Model Number: 500
Place of Origin: china
Minimum Order Quantity: 1 set
Price: USD6800
Delivery Time: 5-8 days
Payment Terms: L/C, T/T
Standard Packaging: wooden case
Product Description

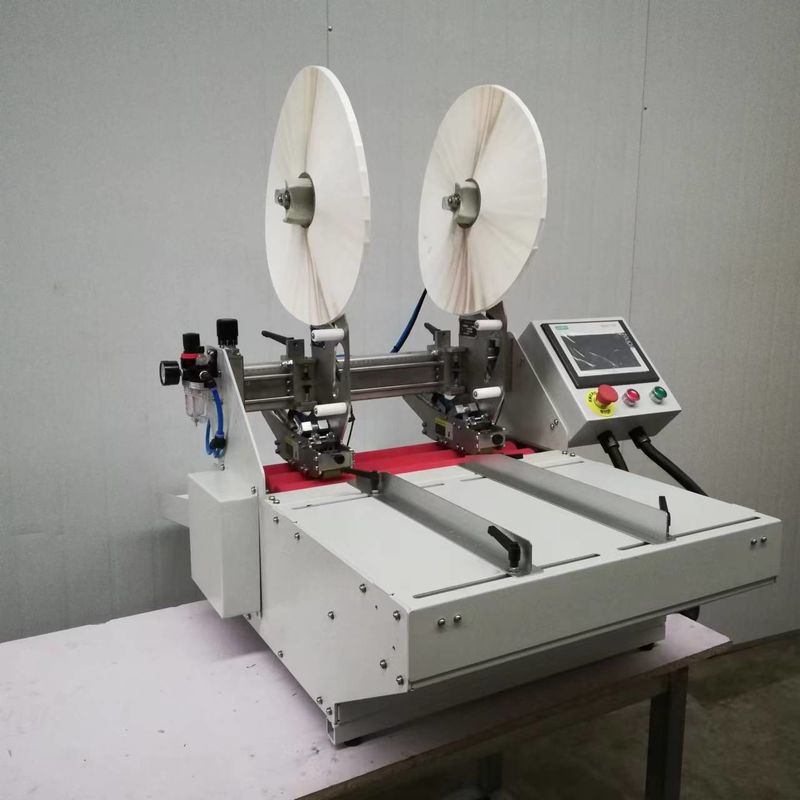

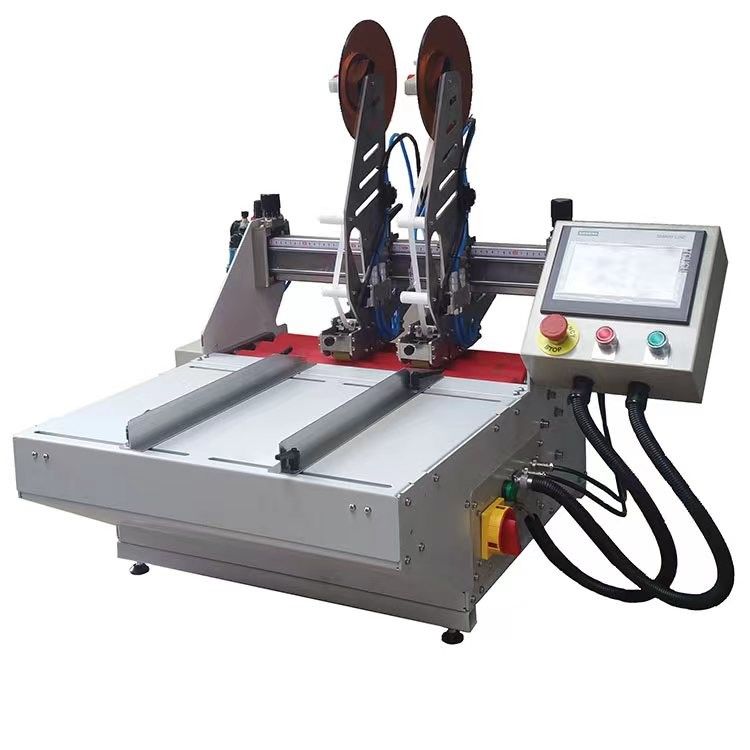

TMB 500 Double Sided Tape Application Machine
Application:
The machine often to be used for poster, it can tape four tapes on the corner of poster. And then people can adhere the poster to wall of market.


TMB 500 Semi-Automatic double sided tape applicator machine will reduce the time spends handing products which are folders,boxes, displays, stands etc.



The machine can apply the double sided tape to all the material which is with good hardness and flatness similar as Paper,Cardboard, Corrugated board, Wooden, PVC and the others. The thinnest paper 100 g/m² upto 20 mm thickness wooden.

Main performance and features:
1.Used for applying the double sided tape ,sealing tape and PVC tape on the envelope ,A4 paper ,carton box ,PVC material
and so on .
2.It is widely used in building materials, packaging and many other industries
3.Instead of manual operation
4.It is light and flexible,convenient to move, PLC programming, touching screen, operation simple.
5.With an adjustable feeding table and ability to load sheets up to 70x100cm
6.It is the perfect machine for small scale work.



 Specifications:

Model
TMB 500
Product width
25mm (1") upto 500mm (20")
Product materials
Envelope ,A4 paper ,carton box ,PVC, floor board,and the others
Product Thickness (Min paper grammage)
100 g/m2 (for paper)
Product Thickness (The other material)
0.1mm upto 20mm (0.8")
(Such as floor board ,Corrugated board )
Applicator Heads standard/max
1 upto 3 Heads
Max number of spots
4 spots (8 spots can be customized)
Min spot length/
Min tape strip length
25 mm (1")
Min distance between spots/
Min distance between tape strip and the next
25 mm (1")
Min horizontal distance between tape strips
76 mm (3") (center to center)
Tape thickness
0.1 mm - 2 mm
Tape width (max)
5mm(0.2") upto 30mm(1.2")
Internal tape roll diameter
76 mm (3")
Max external tape roll diamete
400 mm (15.75")
Languages
English, Italian, German, French, Spanish,Russia
Speed
30m/min (100 ft/min)
Electricity needs
220V 50HZ /110V 50HZ
Compressor air needs
6 bar
Weight
65 kg
Dimension
800x500x680mm (L x W x H)
Warranty
12 Months



 Double Sided Adhesive And Tear Tape Machine 0.1 mm - 2 mm thickness 0
