High Speed Fully Automatic Paper Cup Machine 380V / 220V

220V Automatic Paper Cup Machine

95pcs/min High Speed Paper Cup Machine

Vertical Axis Paper Cup Forming Machine

Place of Origin:

CHINA

Brand Name:

Certification:

Model Number:

Request A Quote

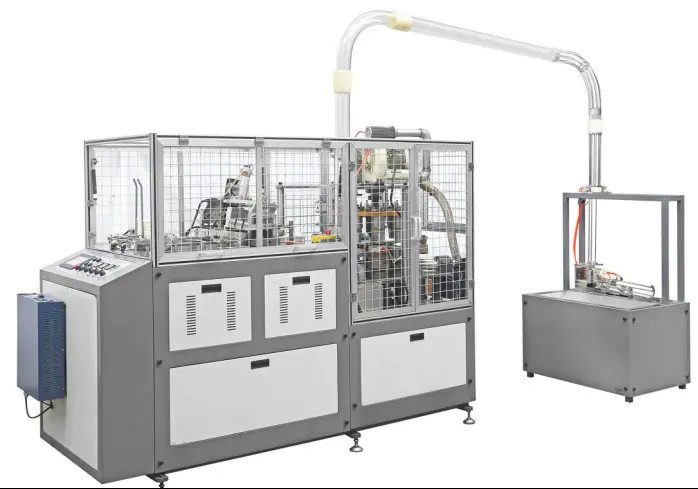

High Speed Fully Automatic Paper Cup Machine 380V / 220V

Product Details

Dimension(L*W*H)::

2250 X 1350 X 1800 Mm

Warranty::

1 Year

After Warranty Service::

Video Technical Support, Online Support

Speed::

80-95pcs/min

Function::

Forming Paper Cup

Cup Material::

Single PE/Double PE Coated Paper

Gas Source::

0.2-0.3m3/min

Product Name::

Automatic Paper Cup Machine

Application::

Paper Processing

Voltage::

380V/220V

Cup Size::

6-16oz,16-22oz

Paper Specification::

160-340g/m2

Power Supply::

11KW

Payment & Shipping Terms

Minimum Order Quantity

1 SET

Price

USD19800

Packaging Details

WOODEN CASE

Delivery Time

10 DAYS

Payment Terms

L/C, T/T

Automatic Round Cardboard Cylindrical Paper Can Tube Curling Machine

Get Best Price

Inside and Outside Edge Curling Paper Tube Machine

Get Best Price

Customizable Paper Bag Forming Machine for Small Envelope Manufacturing with Air Suction

Get Best Price

Paper Cup Printing Machine Coffee Cup Making Machine

Get Best Price

86-21-20232967

pm@diamond-prin.cn

86-21-51564107

Contact Now

Product Description

Automatic paper cup making machine

Product description:

The PM 16 medium speed paper cup forming machine is based on the vertical axis paper cup machine. Through innovation and improvement, the stability and production speed of the whole machine have been greatly improved. It is suitable for the production of single and double-sided coated hot and cold beverage paper cups through continuous processes such as automatic paper feeding, middle sealing into cylinder, cup mouth lubrication, upper curling, cup bottom, cup bottom heating, rolling, and finished product blowing. Ice cream paper cups.

SPECIFICATIONS
Paper cup material Main feature	Paper cup material	g/m3	160-340
	Speed	pcs/min.	80-95
	Power	V/Hz	380v 50Hz / 220 50HZ
Others	Total power	KW	11
	Air pressure	M3/MIN	0.2-0.3
	Weight	KGS	2500
Packing	Plywood case size	LxWxH	2600x1200x1580mm

Reliability of ZF-HC16:

The ZF-HC16 intelligent medium speed paper cup forming machine is an upgraded version of the vertical axis paper cup machine;

(The vertical axis paper cup machine has a capacity of 60-65 per minute, and the ZF-HC16 reaches 80-95 per minute)

The overall steel plate body and the oil-leading lubrication system ensure long-term normal and stable operation of the equipment;

(There is an automatic refueling system at the bottom of the machine, automatic filtration, automatic lubrication, PLC operation, no need to manually refuel, hygienic and quick)

Gear transmission, cylindrical barrel indexing groove wheel, optimize internal layout, ensure machine transmission precision, high synchronization performance, so as to achieve coordination between strokes, avoid collision damage parts, make up for the congenital deficiency of chain transmission jitter and transmission instability .

Packaging:

High Speed Fully Automatic Paper Cup Machine 380V / 220V 4

Company Profile

Our main products are Auto Bender, Laser cutter, Diecutting machine, Hot stamping machine, Laminator, Dieboard making tools and consumables in Packaging and Printing industry.

With our Auto Bender and Laser cutter, manual tools, users can set up or upgrade dieshop easily and raise efficiency greatly. Our high quality cutting rules feature good hardness and perfect flexibility and we also have various kinds of creasing rules, perforating rules, wave rules, cut-crease rules, zipper rules and glue flap rules.

FAQ

1. who are we?

We are based in Shanghai, China, start from 2008, sell to South America(25.00%),South Asia(20.00%),Mid East(15.00%),Eastern Europe(10.00%),Southeast Asia(9.00%),North America(5.00%),Southern Europe(5.00%),Central America(5.00%),Africa(5.00%),Oceania(1.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;

3.what can you buy from us?

Cutting rule,Auto bender,Laser cutting machine

4. why should you buy from us not from other suppliers?

Our company is in the printing and packaging industry since 2008, we provide machines and consumables mainly in the after printing industry, especially die cutting, paper cutting, box folding and pasting, laser cutting and CNC engraving.

5. what services can we provide?

Delivery Terms: FOB, CFR, CIF,EXW,CIP,FCA,CPT,DDP,DDU,Express Delivery；

Payment Currency: USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;

Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;

Language Spoken:English,Chinese,Spanish,French
