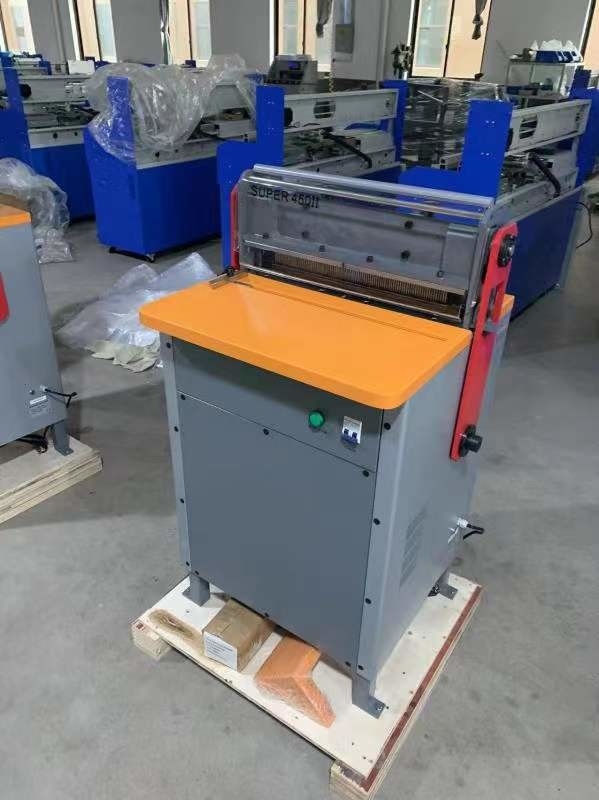

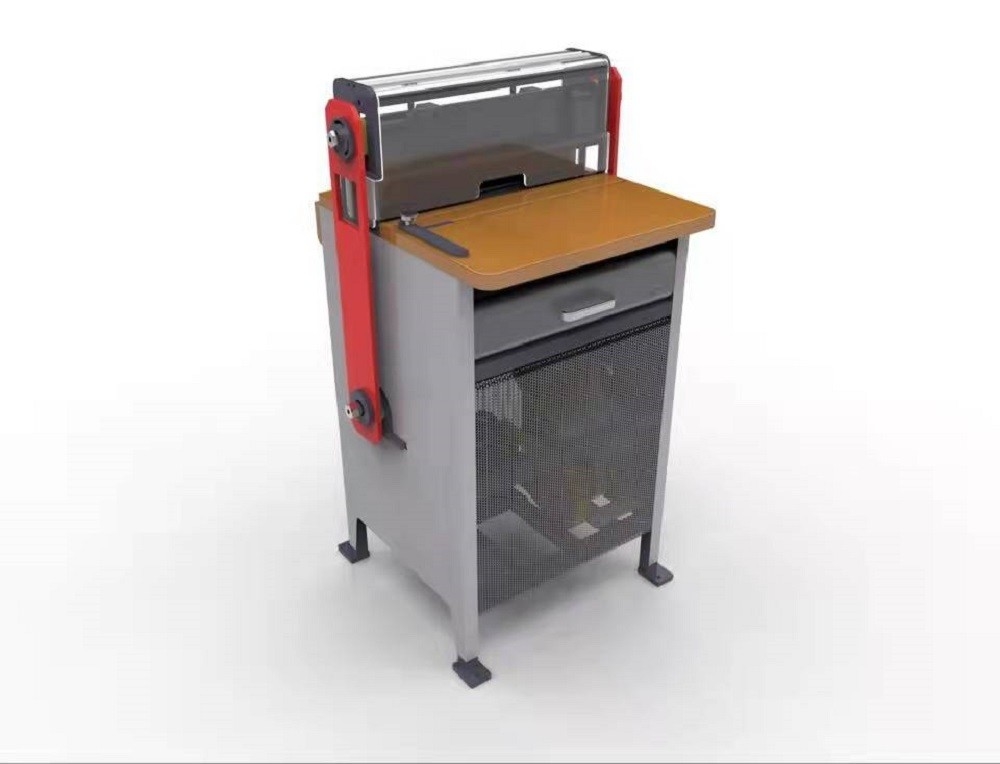

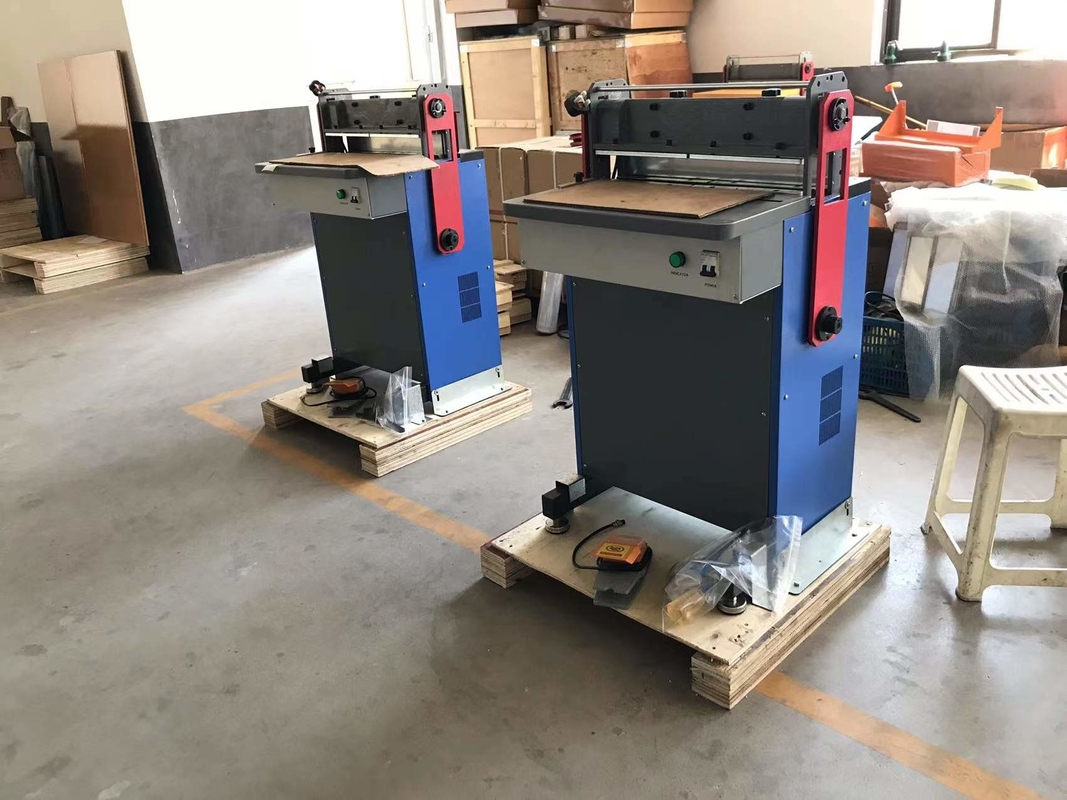

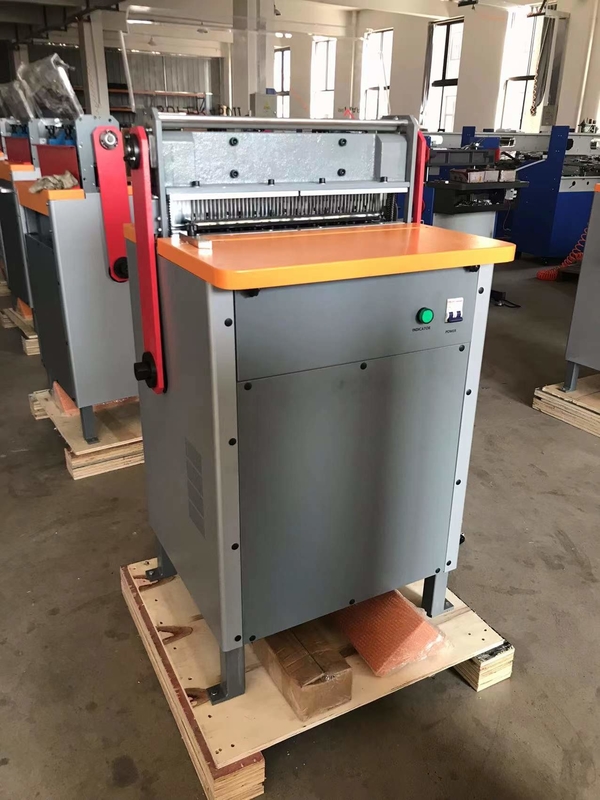

Heavy Duty Paper Punching Machine / Moulding Machine 2 In 1
A3 Paper Punching Machine
,430mm Paper Moulding Machine
,Electric Paper Punching Machine
2: Paper: A3
3: Electric punch and double coil binding machine
4:Die Cutter can change
|
Model number
|
Super 450
|
|
Max punching width
|
430mm
|
|
Max punching thickness
|
4mm
|
|
Punching speed
|
150 times/minutes
|
|
Motor power
|
220v/50hz, 750w, 110v/60hz, 750w
|
|
Material
|
Metal
|
|
|
|
Features:
2: punching margin is adjustable from 2.5mm to 6.5mm
3: with wire closing system for both 3:1&2:1 on the back of machine
4: can close wire from 4.8mm to 38mm(3/16" to 1 1/2")
5: easy operation by foot pedal
6: exchangeable punching dies for all kinds of punching pattern
7: change die is easy and fast, take 5minutes
Please note: the punching dies are exchangeable and can be made according to customers' need.
We are based in Shanghai, China, start from 2008,sell to South America(25.00%),South Asia(20.00%),Mid East(15.00%),Eastern Europe(10.00%),Southeast Asia(9.00%),North America(5.00%),Southern Europe(5.00%),Central America(5.00%),Africa(5.00%),Oceania(1.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Cutting rule,Auto bender,Laser cutting machine
4. why should you buy from us not from other suppliers?
Our company is in the printing and packaging industry since 2008, we provide machines and consumables mainly in the after printing industry, especially diecutting, paper cutting, box folding and pasting, laser cutting and CNC engraving.
5. what services can we provide?
Accepted Delivery Terms: FOB, CFR,CIF,EXW,CIP,FCA,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency: USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Heavy duty 2 in 1 paper punching machine moulding machine
-
