220v Double Wire Binding Machine 800 - 1500 books/hour
Double Wire Binding Machine 800books/hour
,Double Wire Binding Machine 220v
,Double Wire Binding Automatic Packing Machine

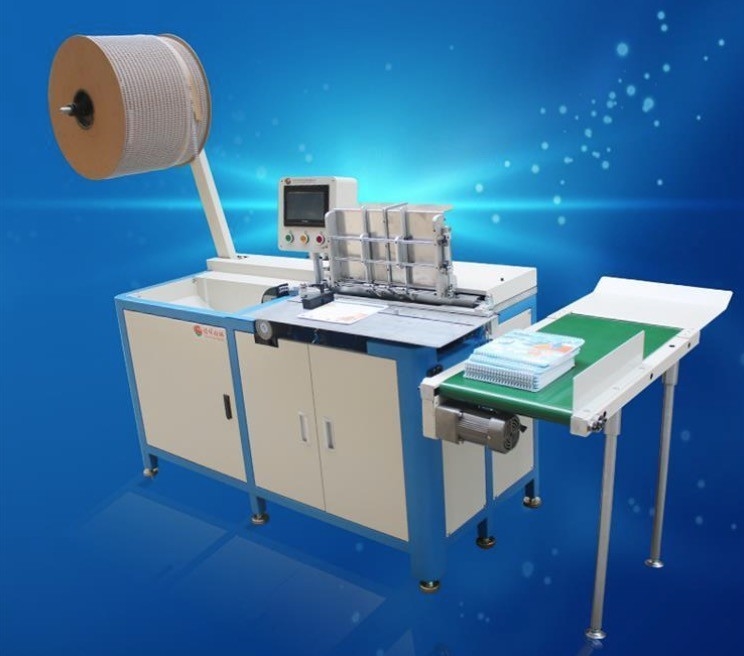

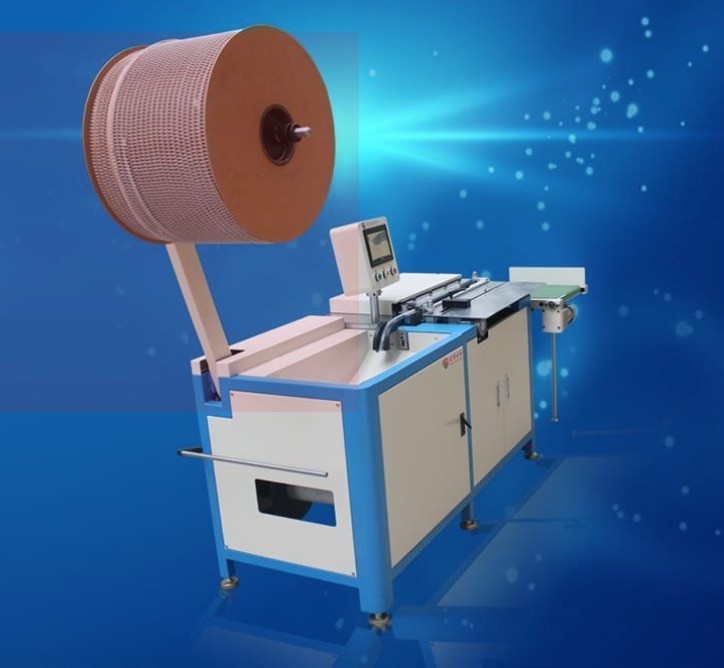

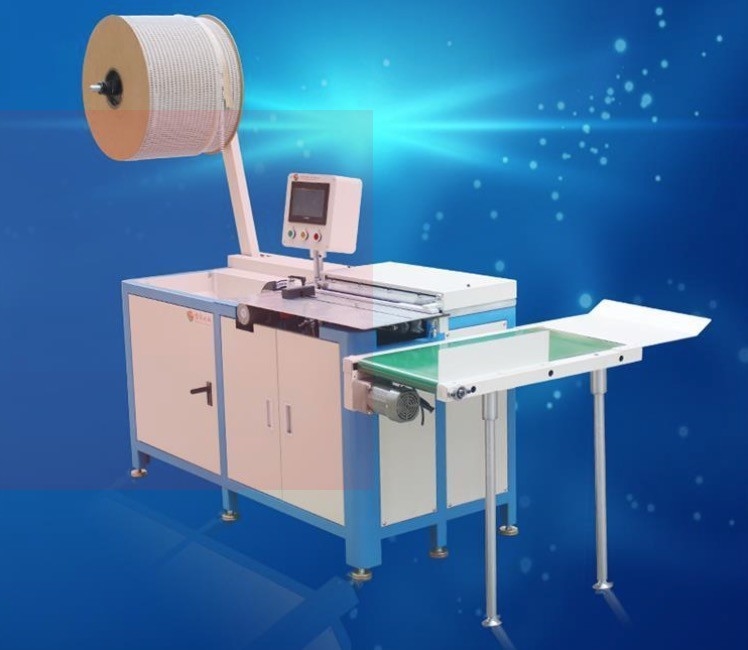

double wire binding machine
Characteristics:
1. Can bind 800-2000 books/hr, according to the book size and operator's working speed .
2.Book thickness range is wide, from 1-18mm.For spiral wire spec range is 1/4" to 7/8 ".

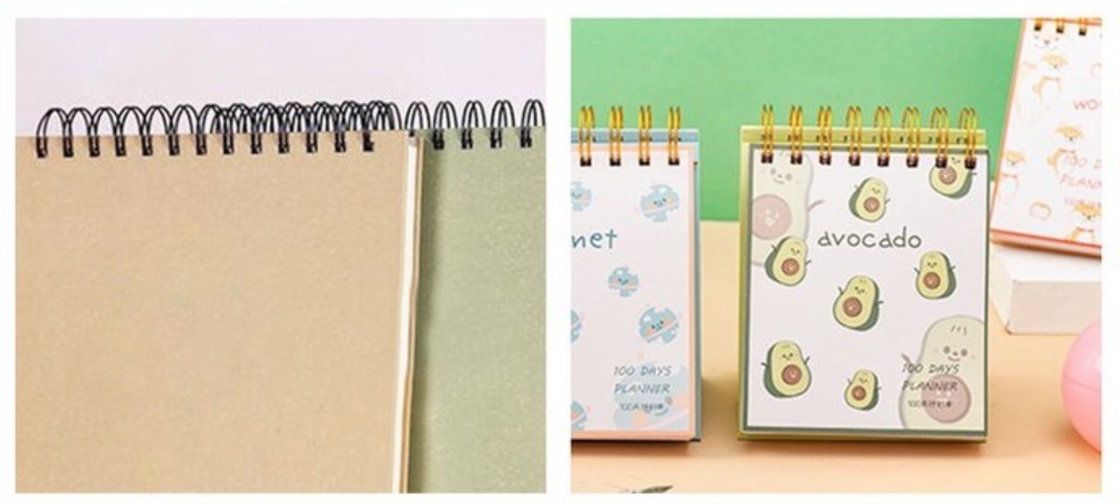

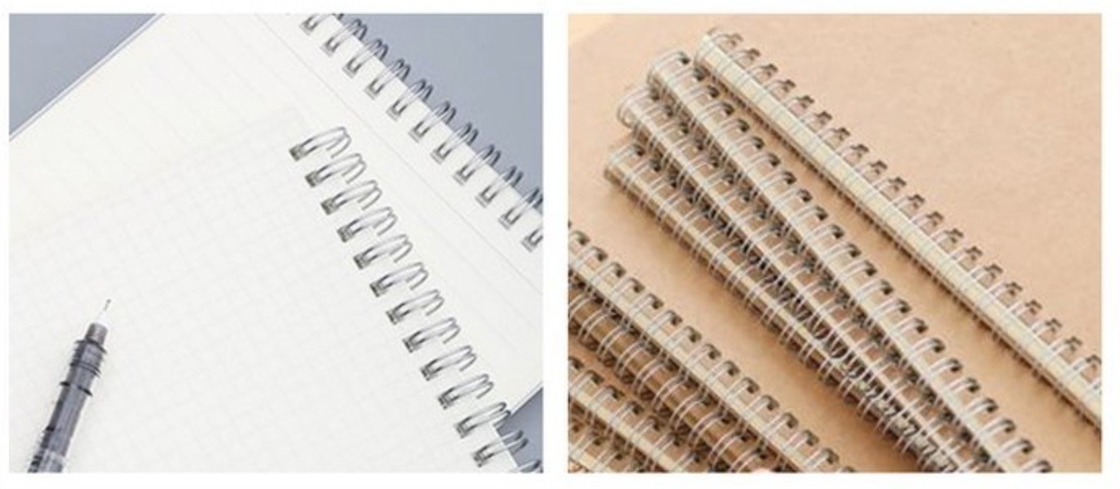

3.Suitable for Diary, notebook, hand-pad ,calender,all kind of loose-leaf product binding use.
4.Machine has functions of YO sending, cut off ,inserting into the book hole, auto hanger inserting ,closing, auto delivery.
5. Automatic remind the malfunction.
| specifications: | |
| model | HB-520A |
| working speed | 800-1500 books/hour |
| binding wire spec range | 1/4''-7/8'' |
| binding book width | 70-520mm |
| work table size | 660*300mm |
| machine dimension | 1740*940*1550mm |
| machine weight | 400kg |
| power | 220v/50hz/60hz |
| air compressor(not include with machine) | 1.5kw |
1. who are we?
We are based in Shanghai, China, start from 2008,sell to South America(25.00%),South Asia(20.00%),Mid East(15.00%),Eastern Europe(10.00%),Southeast Asia(9.00%),North America(5.00%),Africa(5.00%),Central America(5.00%),Southern Europe(5.00%),Oceania(00.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Cutting rule,Auto bender,Laser cutting machine
4. why should you buy from us not from other suppliers?
Our company is in the printing and packaging industry since 2008, we provide machines and consumables mainly in the after printing industry, especially diecutting, paper cutting, box folding and pasting, laser cutting and CNC engraving.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DDP,DDU,Express Delivery;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,French
-
