Quality Offset Printing CTP Plate Baking Oven 15kw 18kw factory
<
Quality Offset Printing CTP Plate Baking Oven 15kw 18kw factory
Quality Offset Printing CTP Plate Baking Oven 15kw 18kw factory
Quality Offset Printing CTP Plate Baking Oven 15kw 18kw factory
>

Offset Printing CTP Plate Baking Oven 15kw 18kw

Specifications
Highlight:

CTP Offset Printing Plate Machine

,

15kw CTP Plate Baking Oven
Power Supply:
AC380V 50/60Hz60A
Baking Temperature:
20-250℃
Model:
KYHL-880； KYHL-1400
Heating Power:
15kw；18kw
product name:
Offset Printing Plate Machine
keyword:
Ctp Plate
Tags:

Printer Accessories

Thermal Lamination Film

Positive PS Plate
Key Attributes
Brand Name: PM
Model Number: KYHL
Place of Origin: china
Minimum Order Quantity: 1 SET
Delivery Time: 15 DAYS
Payment Terms: L/C, T/T
Standard Packaging: WOODEN CASE
Product Description

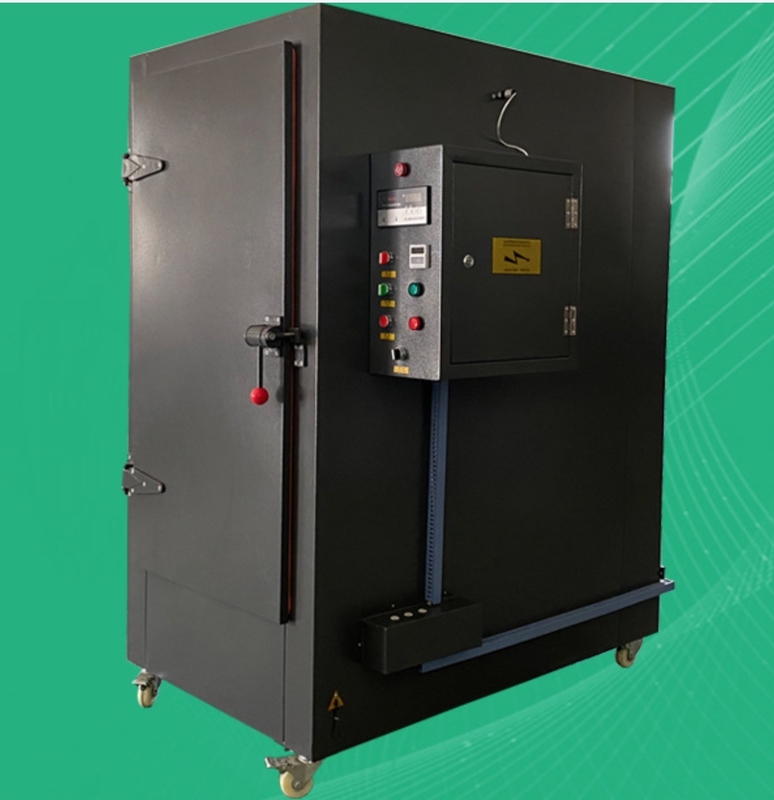

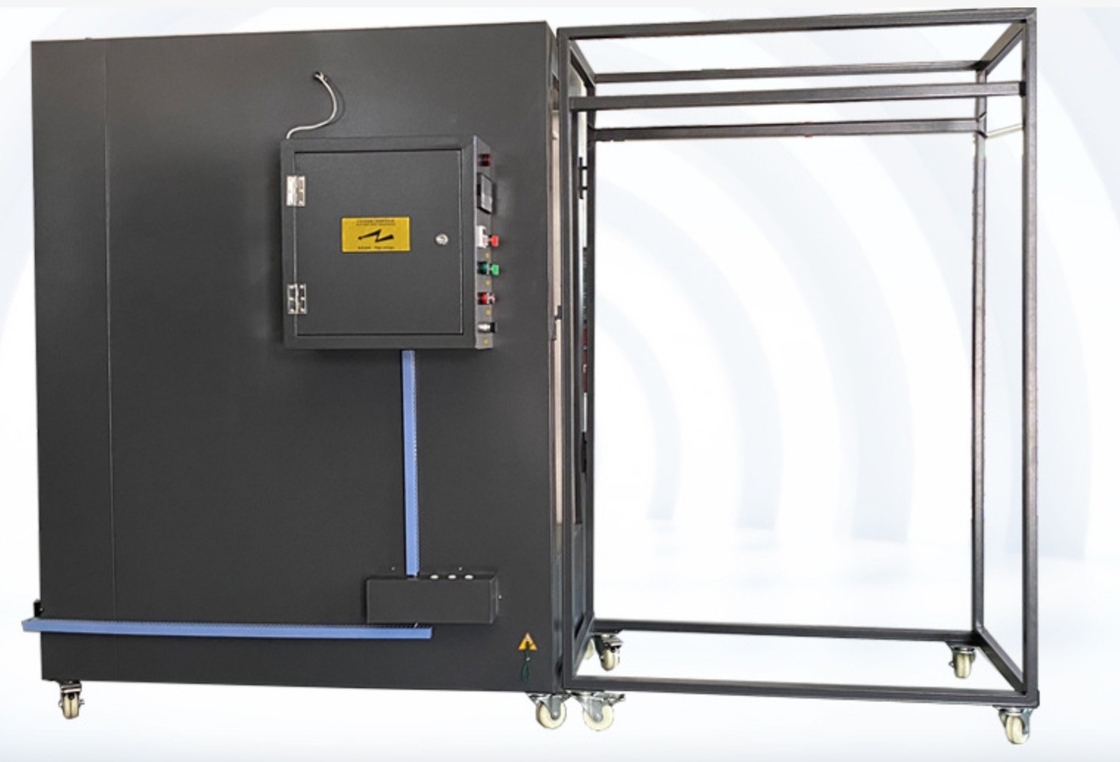

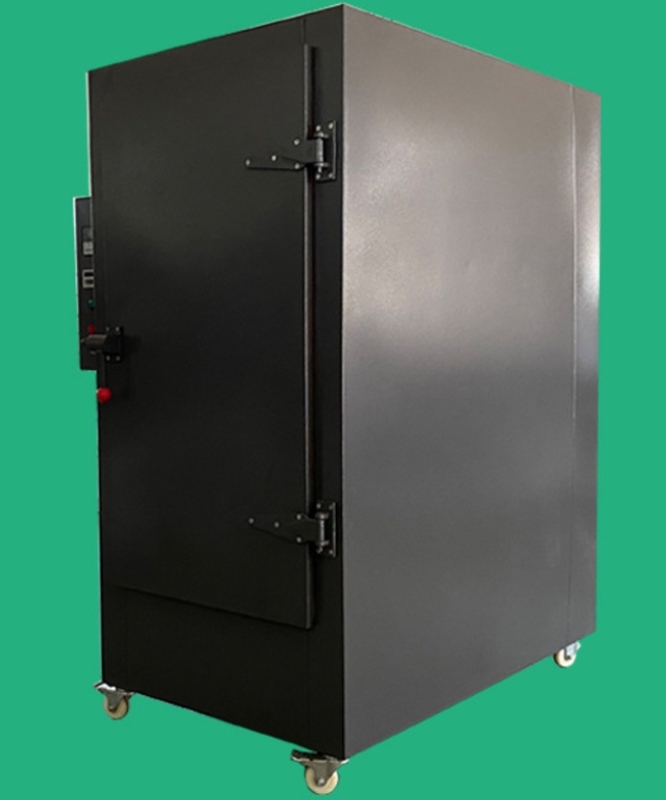

China CTP plate baking oven for offset printing plate



 Characteristics :
· Microcomputer temperature control, precise temperature control system and excellent heat insulation system.


·Fully closed hot air circulation, the temperature of the baking plate is stable, the heat distribution is uniform, and the plate deformation is avoided.


·Two separate temperature control system


could avoid the stopping for the single fault,to ensure the progress of the work.


·Vertical plate double suction plate frame, reduce high temperature leakage, save power consumption.

Timing starting/shutting equipment, whole sealing machine case design, avoiding the hot gas running out.

·Fine plate locking equipment, the plate can be taken out conveniently.
·

Automatic alarm when the roasting is over, accurate temperature control, fine heat insulation system, plates do
not bend.


 Model KYHL-880 KYHL-1400
 Baking Time 6-8 min 6-8 min
 Max.Size 1100×880mm 1100×1400mm
 Max.Quantity 8
 Baking Temperature 20-250℃
Power Supply AC380V 50/60Hz60A
 Heating Power 15kw 18kw
 Net Weight 520kg 620kg
Outline Dimension 1280×800×1720mm 1780×800×1720mm



Offset Printing CTP Plate Baking Oven 15kw 18kw 0

Company Profile

Offset Printing CTP Plate Baking Oven 15kw 18kw 1

Our main products are Auto Bender, Laser cutter, Diecutting machine, Hot stamping machine, Laminator, Dieboard making tools and consumables in Packaging and Printing industry.

We also specialize in doctor blades, creasing matrix, jigsaw blades and different kinds of punches, click die steel, plywood as dieboards, drawing films, ejection rubber and equipment related in die cutting industry. We are always ready to provide complete products for cutting products making, printing and packaging.
