Place of Origin:

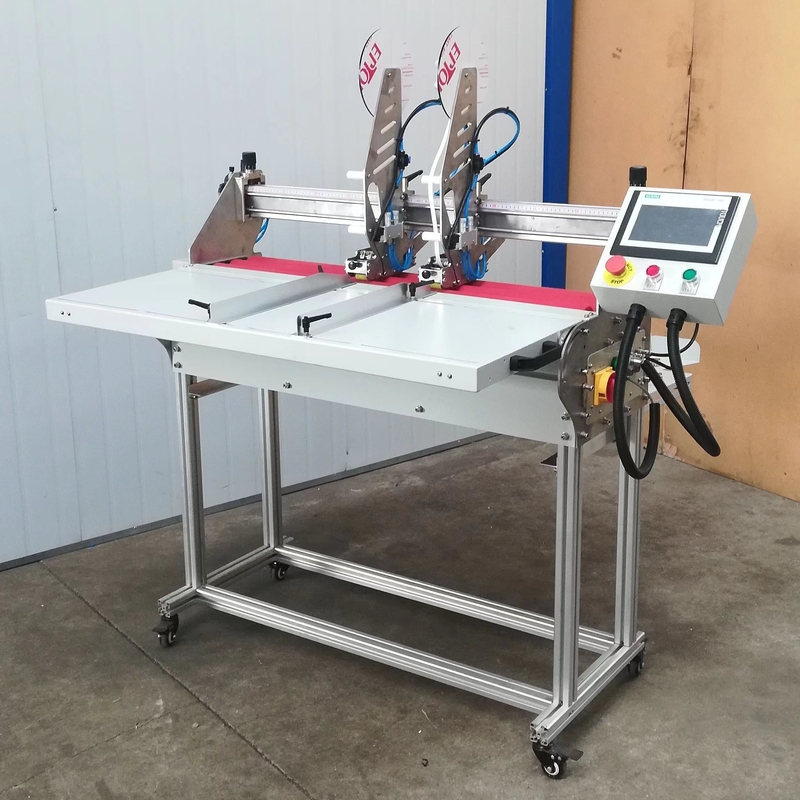

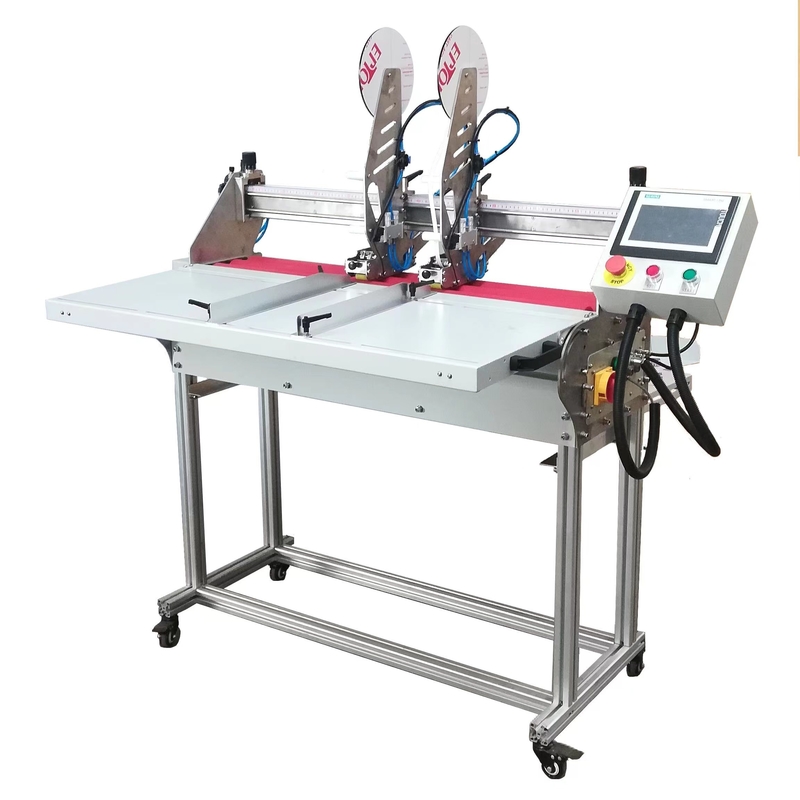

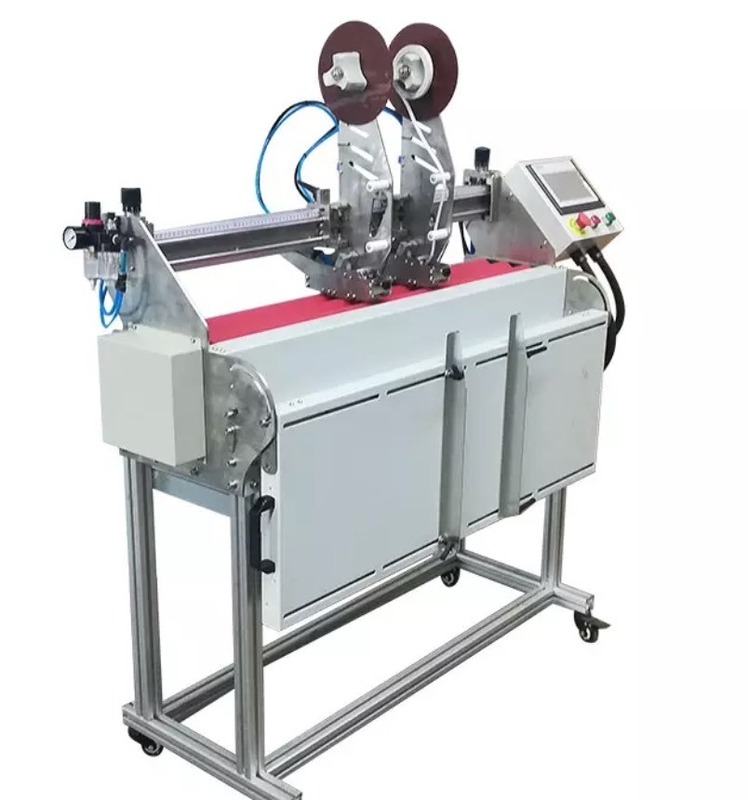

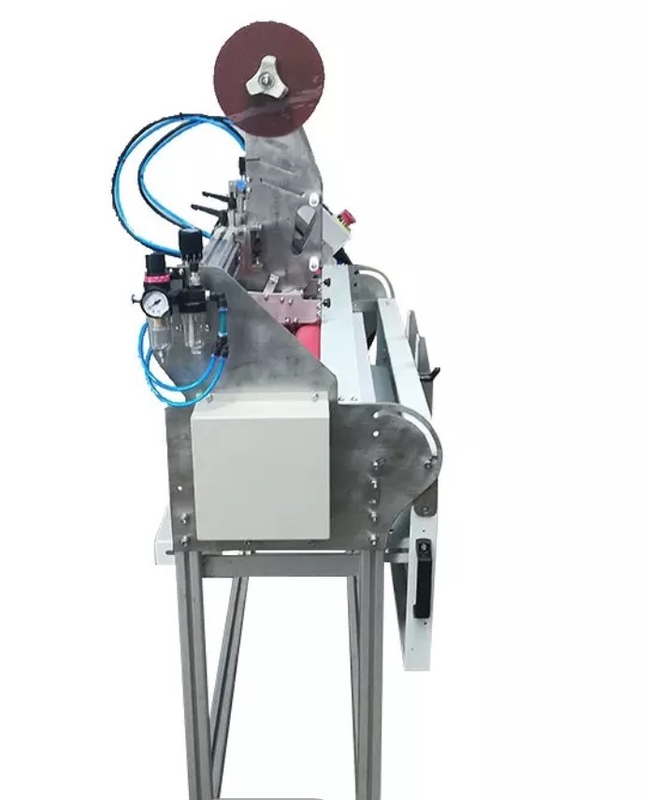

Double Sided Tape Application Machine Tape Machine
The machine often to be used for poster, it can tape four tapes on the corner of poster. And then people can adhere the poster to wall of market.
Main performance and features:
1.Used for applying the double sided tape ,sealing tape and PVC tape on the envelope ,A4 paper ,carton box ,PVC material,decoration material and so on .
2.It is widely used in building materials, packaging, printing and many other industries
3.Instead of manual operation,and saving the labor force.
4.It is light and flexible,convenient to move, PLC programming, touching screen, operation simple.
5.With an adjustable feeding table and ability to load sheets up to 70x100cm it is the perfect machine for small scale work.
25mm (1") upto 1000mm (39")
|Product materials||Envelope ,A4 paper ,carton box ,PVC, floor board,and the others|
|Product Thickness (Min paper grammage)||100 g/m2 (for paper)|
|Product Thickness (The other material)||0.1mm upto 20mm (0.8")
(Such as floor board ,Corrugated board )
|Applicator Heads standard/max||1 upto 4 Heads|
|Max number of spots||4 spots (8 spots can be customized)|
|Min spot length/
Min tape strip length
25 mm (1")
0.1 mm - 2 mm
|Tape width (max)||5mm(0.2") upto 30mm(1.2")|
|Internal tape roll diameter||76 mm (3")|
|Max external tape roll diameter||400 mm (15.75")|
|Speed||30m/min (100 ft/min)|
|Compressor air needs||6 bar|
|Dimension||156 x 69 x 165 CM (L x W x H)|
Our main products are Auto Bender, Laser cutter, Die cutting machine, Hot stamping machine, Laminator, Die board making tools and consumables in Packaging and Printing industry.
