High Speed Automatic Paper Cup Machine Popcorn Paper Bucket Machine

380V Popcorn Paper Bucket Machine

High Speed Automatic Paper Cup Machine

Automatic Paper Cup Machine 95pcs/min

Place of Origin:

CHINA

Brand Name:

Certification:

Model Number:

Request A Quote

High Speed Automatic Paper Cup Machine Popcorn Paper Bucket Machine

Product Details

Dimension(L*W*H)::

2250 X 1350 X 1800 Mm

Warranty::

1 Year

After Warranty Service::

Video Technical Support, Online Support

Speed::

80-95pcs/min

Function::

Forming Paper Cup

Cup Material::

Single PE/Double PE Coated Paper

Gas Source::

0.2-0.3m3/min

Product Name::

Automatic Paper Cup Machine

Application::

Paper Processing

Voltage::

380V/220V

Cup Size::

6-16oz,16-22oz

Paper Specification::

160-340g/m2

Power Supply::

11KW

Payment & Shipping Terms

Minimum Order Quantity

1 SET

Price

USD19800

Packaging Details

WOODEN CASE

Delivery Time

10 DAYS

Payment Terms

L/C, T/T

20 - 125mm Disc Type Paper Core Curling Machine Easy To Operate

Get Best Price

Automatic Paper Tube Core Edges Curling Machine Amazing Perfect Working

Get Best Price

Convenient Operation Paper Tube Curling Machine PLC Control Color Touch Screen

Get Best Price

1.5kw Small Paper Envelope Making Machine 12000pcs/h

Get Best Price

86-21-20232967

pm@diamond-prin.cn

86-21-51564107

Contact Now

Product Description

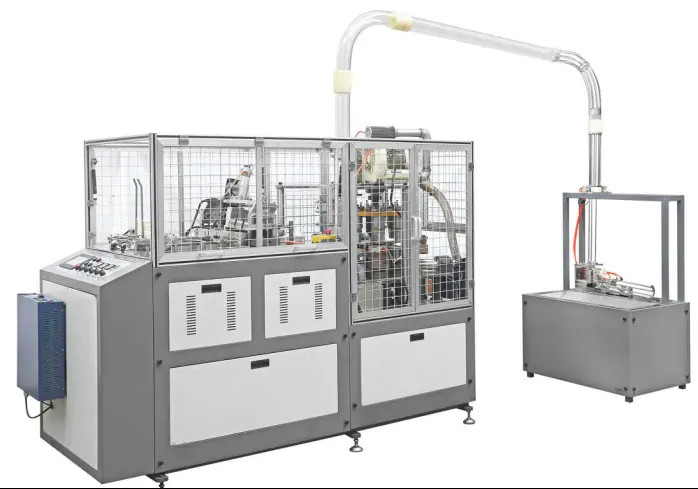

Popcorn paper cup /bucket machine

Product description:

Paper cup machine is suitable for the production of single and double-sided coated hot and cold beverage paper cups through continuous processes such as automatic paper feeding, middle sealing into cylinder, cup mouth lubrication, upper curling, cup bottom, cup bottom heating, rolling, and finished product blowing. Ice cream paper cups.

SPECIFICATIONS
Paper cup material Main feature	Paper cup material	g/m3	160-340
	Speed	pcs/min.	80-95
	Power	V/Hz	380v 50Hz / 220 50HZ
Others	Total power	KW	11
	Air pressure	M3/MIN	0.2-0.3
	Weight	KGS	2500
Packing	Plywood case size	LxWxH	2600x1200x1580mm

Reliability of ZF-HC16:

The ZF-HC16 intelligent medium speed paper cup forming machine is an upgraded version of the vertical axis paper cup machine;

(The vertical axis paper cup machine has a capacity of 60-65 per minute, and the ZF-HC16 reaches 80-95 per minute)

The overall steel plate body and the oil-leading lubrication system ensure long-term normal and stable operation of the equipment;

(There is an automatic refueling system at the bottom of the machine, automatic filtration, automatic lubrication, PLC operation, no need to manually refuel, hygienic and quick)

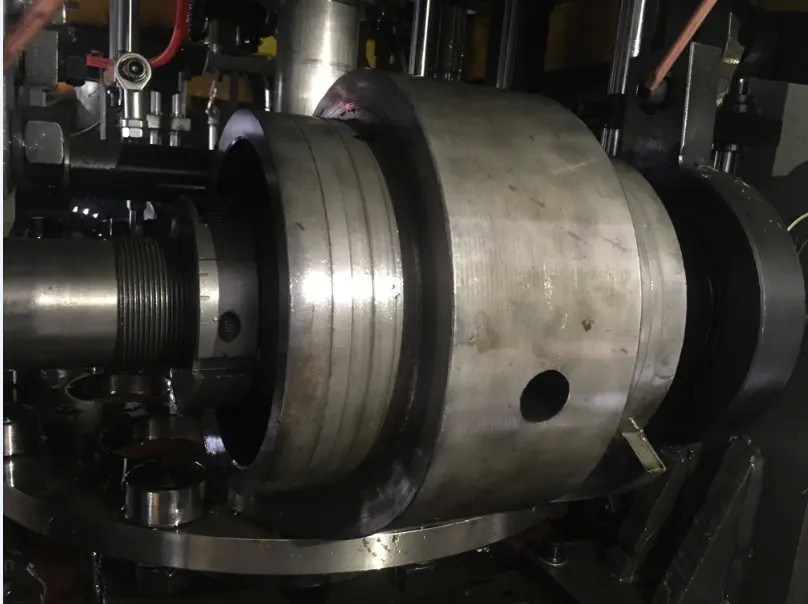

Gear transmission, cylindrical barrel indexing groove wheel, optimize internal layout, ensure machine transmission precision, high synchronization performance, so as to achieve coordination between strokes, avoid collision damage parts, make up for the congenital deficiency of chain transmission jitter and transmission instability .
