100mm Foil Blocking Machine 570×420mm 4.8kw Hot Stamping

100mm Foil Blocking Machine 570×420mm 4.8kw Hot Stamping

Hot Stamping Foil Blocking Machine

100mm Foil Blocking Machine

4.8 kw foil block making machine

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Foil Blocking Machine
Max. Pressure:
15 Ton
Max. Stamping Size:
Max. Cutting Area:
Worktable Area:
Max. Working Height:
Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
Delivery Time
Payment Terms
L/C, T/T, Western Union, MoneyGram
Supply Ability
Product Description

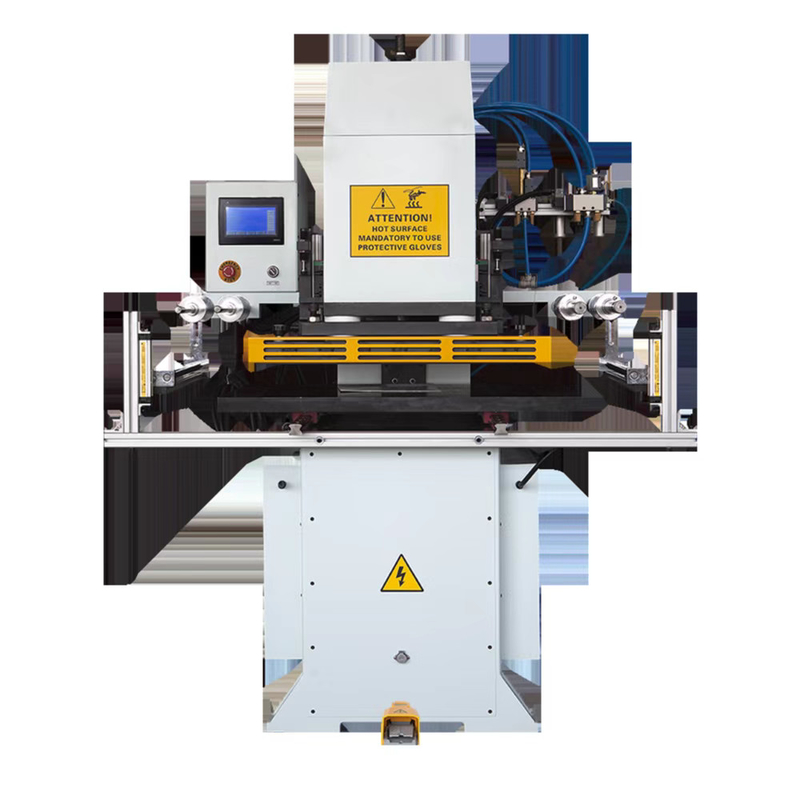

Hot stamping die cutter


1. One man operation with easy parameters setting on touch screen, mainly used for hot stamping, embossing and die cutting on various materials.

2. Boosting cylinder from German technology, air over hydraulic reinforcement driving system, freely switching from two-stroke and three-stroke, ensure high efficiency and energy-saving.

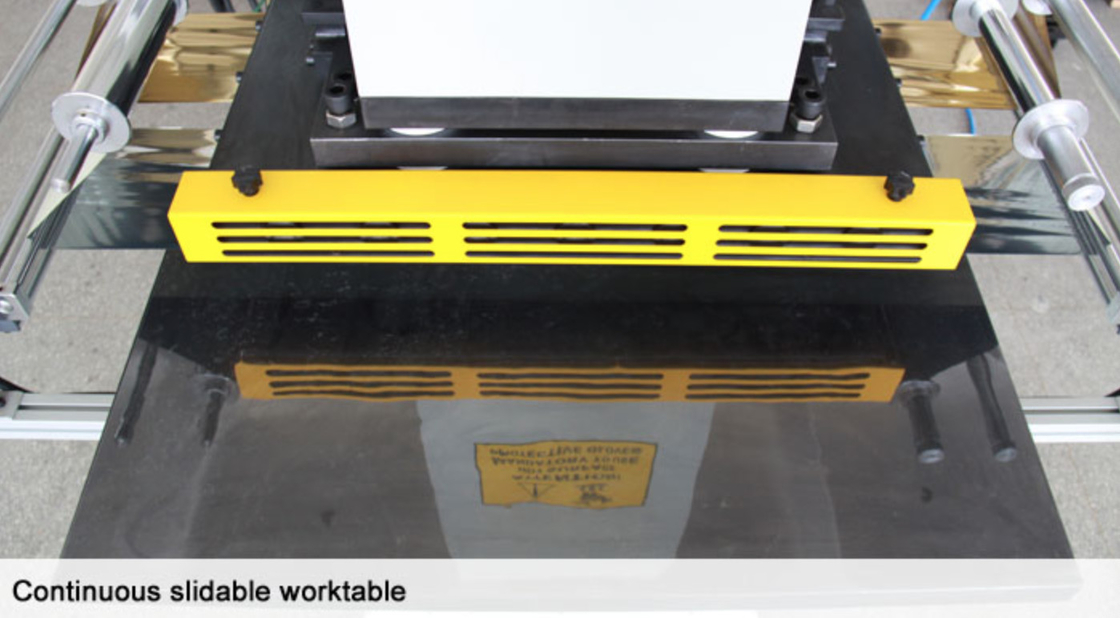

3. Linear guideway from HIWIN, Taiwan, ensure high precision on sliding out and in of the worktable.

4. CE standard, safety device and electrical system is equipped: Omron Safety light curtain, Heat protective cover, Omron touch screen, Digital control, Working status display.

5. Adjustable delay time and pressure for hot stamping to achieve various results.

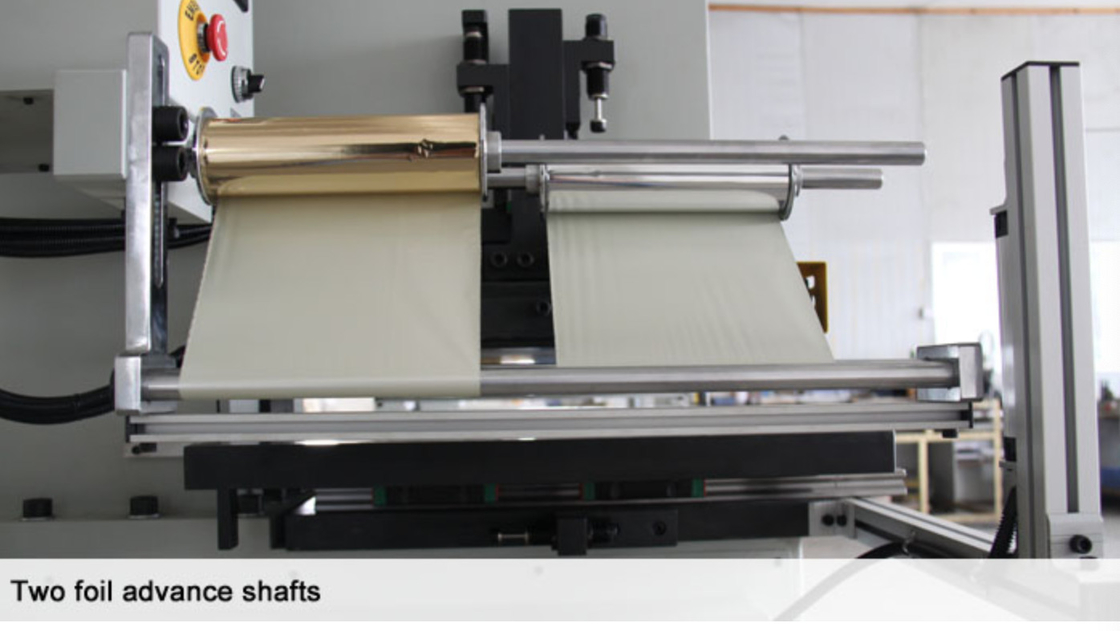

6. Two groups foil running, length and skip steps can be set on touch screen as you wish.

7. Foot pedal for more efficiency working and easy operation.



 Hot Stamping & Die Cutting Machine

Model TJM-568-8T TJM-568-15T TJM-568-30T
Max. Pressure 8 Ton 15 Ton 30 Ton
Max. Stamping Size 510×390mm 590×440mm 780×540mm
Max. Cutting Area 490×370mm 570×420mm 760×520mm
Worktable Area 780×490mm 880×540mm 980×640mm
Max. Working Height 100mm 100mm 100mm
Workable Stroke 160mm 200mm 250mm
Temperature 0~300℃ 0~300℃ 0~300℃
Air Supply 0.8~1.2mpa 0.8~1.2mpa 0.8~1.2mpa
Total Power 4.8kw 5.8kw 7.8kw
Weight 900kgs 1200kg 1600kg
Dimension(LxWxH) 1120×890×1940mm 1200×960×1990mm 1440×1330×2010mm


100mm Foil Blocking Machine 570×420mm 4.8kw Hot Stamping 0


100mm Foil Blocking Machine 570×420mm 4.8kw Hot Stamping 1100mm Foil Blocking Machine 570×420mm 4.8kw Hot Stamping 2
