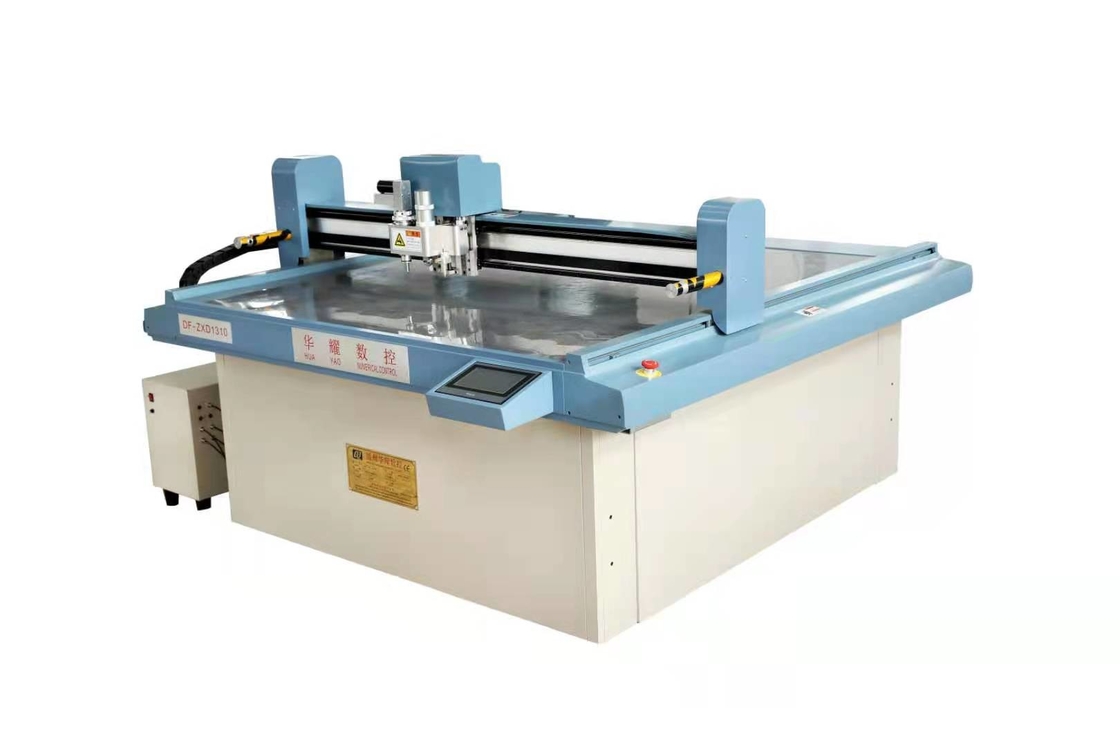

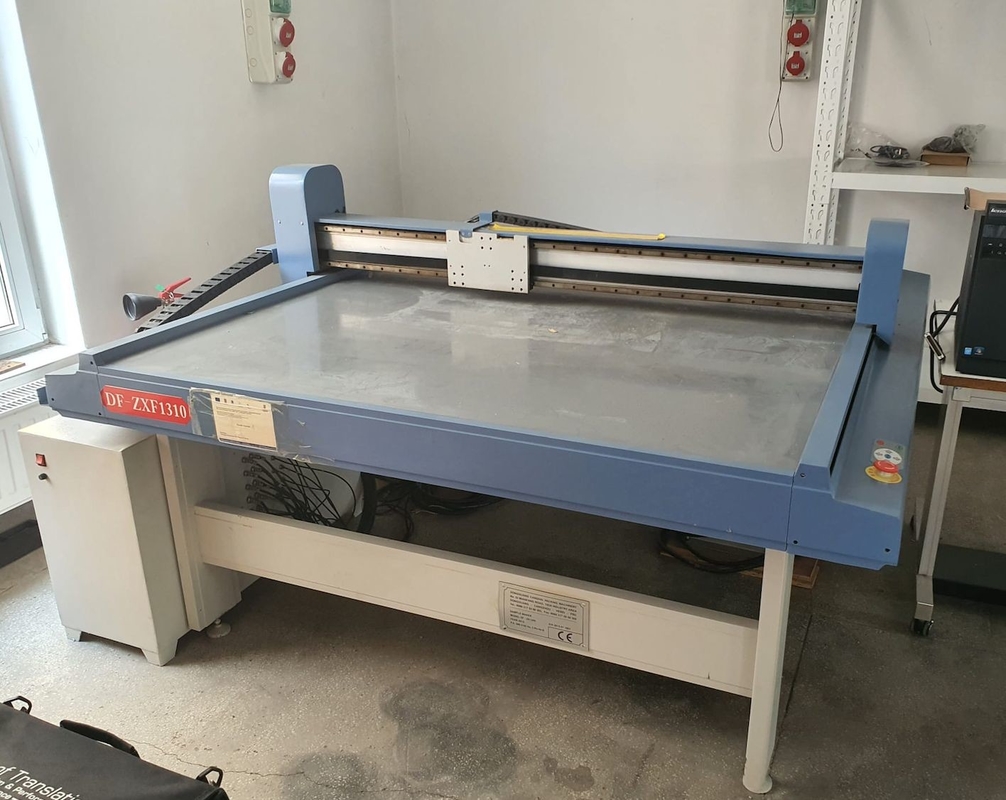

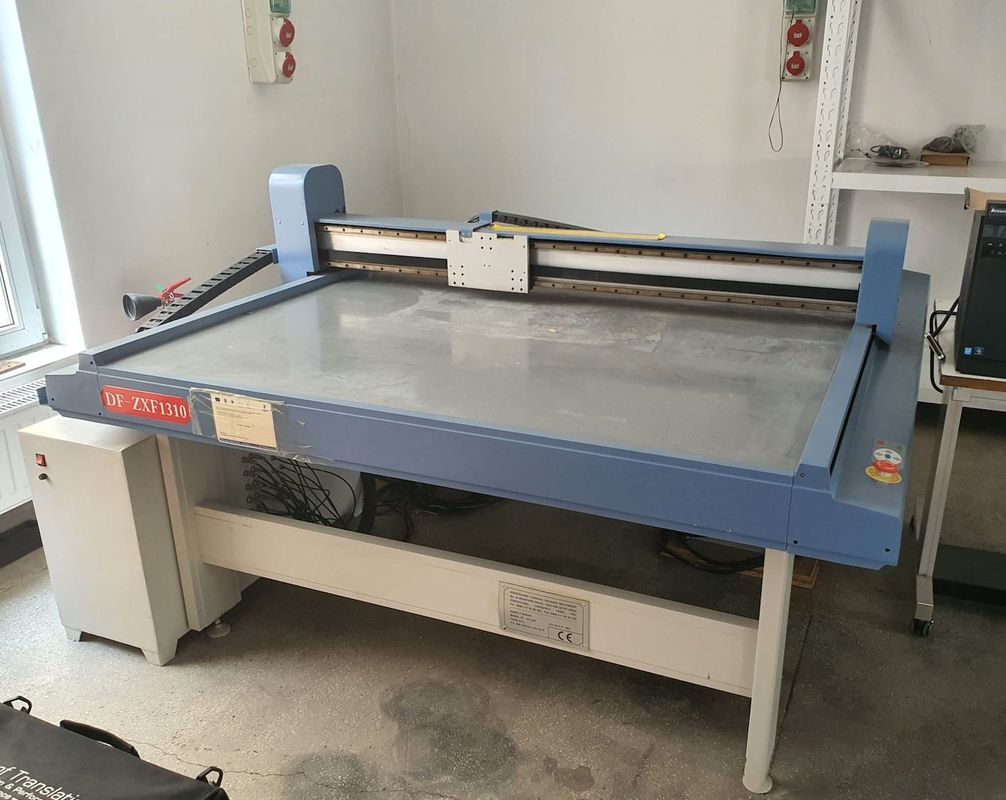

Semi Automatic Corrugated Box Sample Maker Cutting Machine 40 - 1500mm/s
Corrugated Box Sample Maker Cutting Machine
,15mm Box Sample Maker Cutting Machine
,Semi Automatic Packing Machine
Corrugated Box Sample Maker Cutting Machine
Description:
The carton box sample maker cutting machine used in Packaging, paper box, corrugated paper box, color print etc.
It can cut such materials as card paper, corrugated paper, duplex board, PVC, grey paper board and composite materials etc.
Application:
It is used in Packaging, paper box, corrugated paper box, color print etc.
1. Cutting different materials(up to 30 mm):
It can cut such materials as card paper, corrugated paper, duplex board, PVC, grey paper board and composite materials etc.
2.Pressing folding line:
It can press perfect line in the corrugated paper, cardboard, grey board etc.
3. Half-cut and dot line cutting:
It can half-cut on corrugated paper and also dot-line cut on grey board for folding.
4. Location:
It can accurately locate and cut the printed paper box.
5. Drawing function :
It can draw an accurate figure on a paper and a film.
6. V Cutting:
|

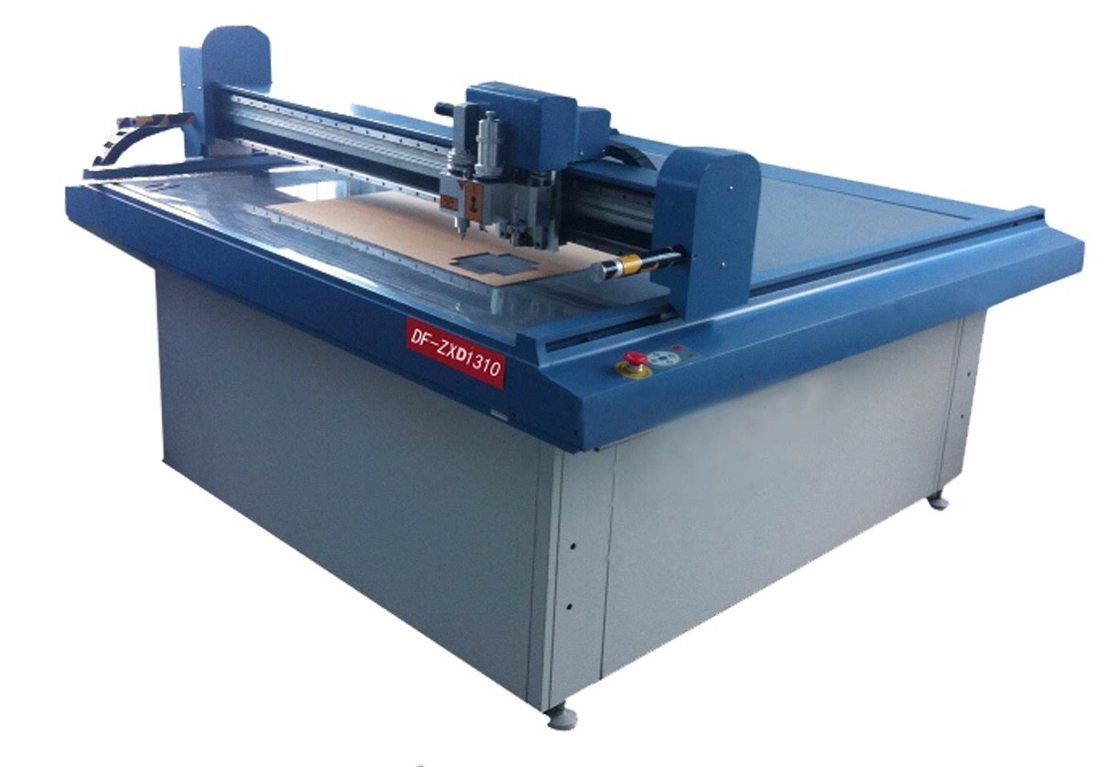

Model
|
ZXD1310
|
|
Cutting area(mm)
|
1300*1000
|
|
Floor area(mm)
|
2450*2140*1150
|
|
Cutting material
|
Cardboard, corrugated paper, PVC, grey paper , foam, composite materials etc
|
|
Max cutting thickness
|
30mm
|
|
Positioning precision
|
≤0.1mm
|
|
Fixed type
|
Vacuum absorption
|
|
Cutting precision
|
≤0.1mm
|
|
Min cutting radius
|
3mm
|
|

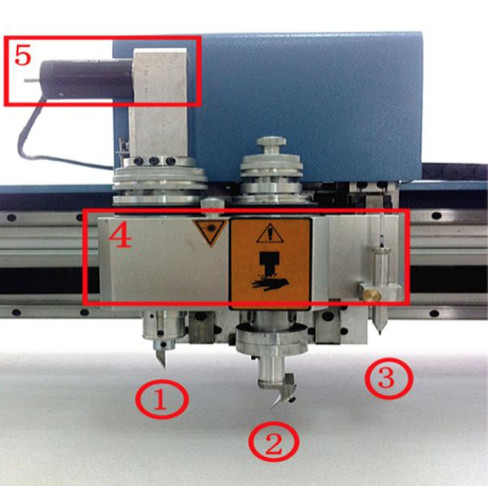

Tool
|
Oscillating blade , Pen ,Creasing wheel ,Drag knife ,V knife
|
|
Command system
|
HPGL
|
|
Travel speed
|
40-1350mm/S
|
|
Power supply
|
220V±10%50HZ/380V±10%50HZ
|
|
Driving system
|
Servo
|
|
Transmission materials
|
Straight-line guide rails and imported synchronous belts
|
Company Profile
1. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.what can you buy from us?
Cutting rule,Auto bender,Laser cutting machine
3. Why should you buy from us not from other suppliers?
Our company is in the printing and packaging industry since 2008, we provide machines and consumables mainly in the after printing industry, especially diecutting, paper cutting, box folding and pasting, laser cutting and CNC engraving.
-
