Microcomputer Temperature Control Machine PS Plate Baking Machine AC380V
Microcomputer Temperature Control Machine
,PS Plate Baking Machine
,AC380V Plate Baking Machine
High Temperature Plate Baking Machine
Product Introduction:

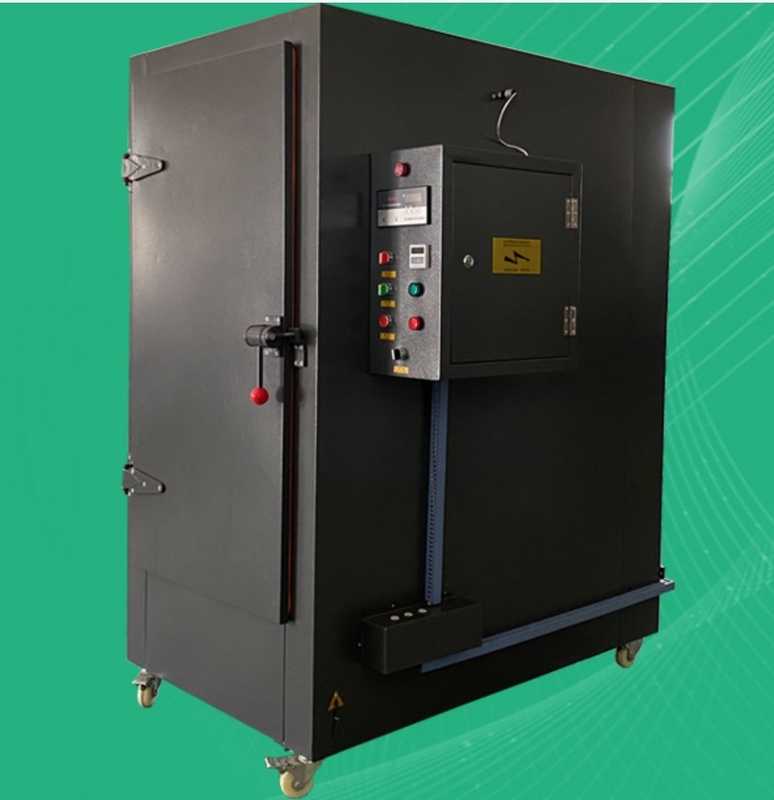

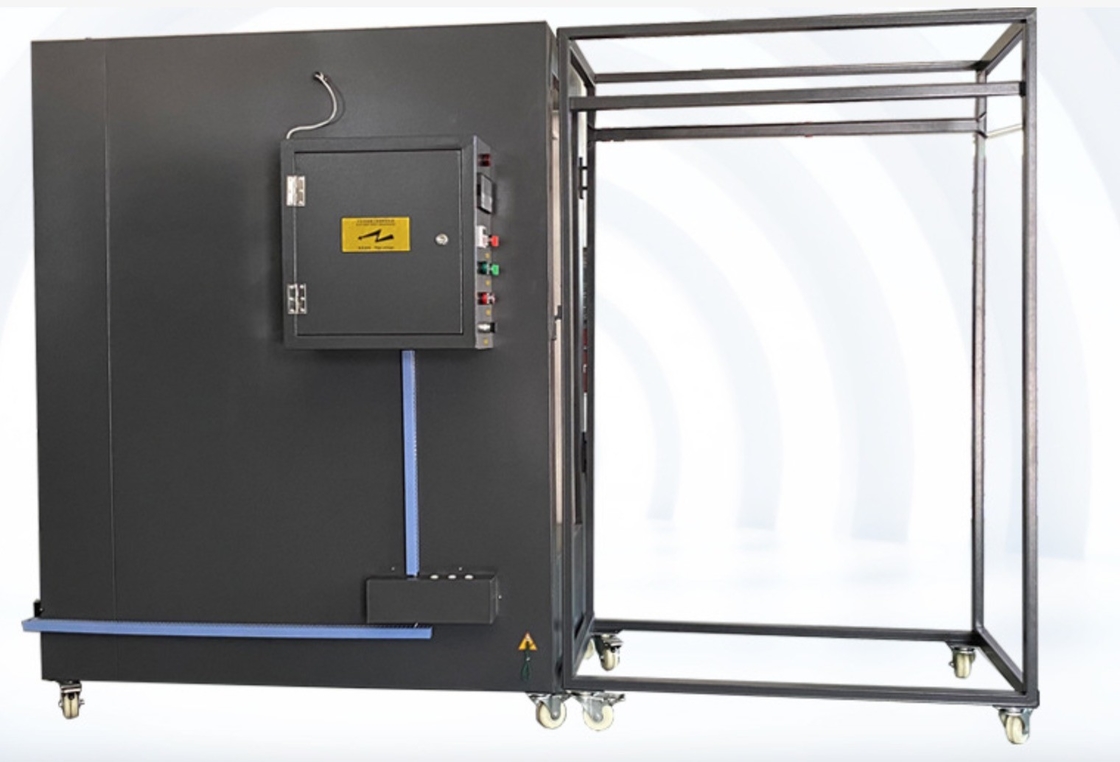

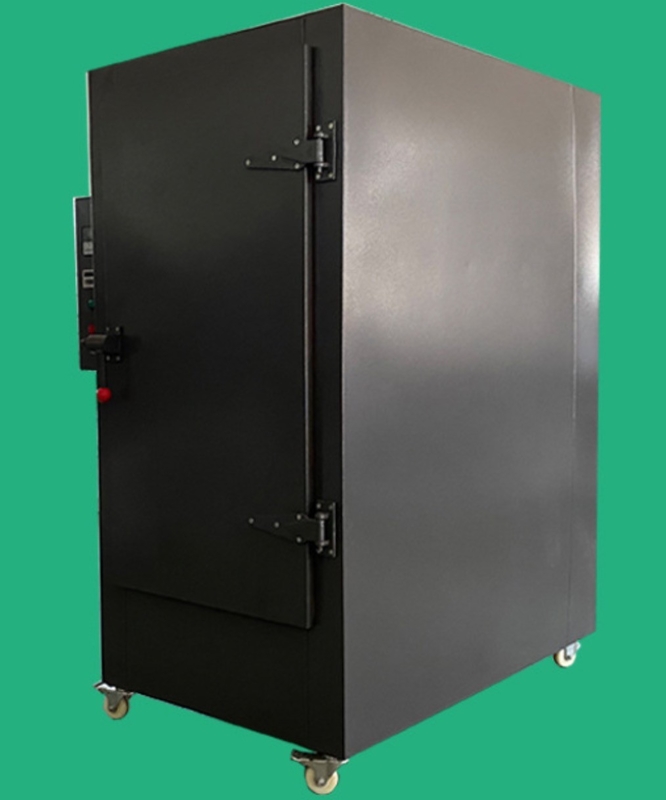

KYHL Standing PS Plate whirl machine (High Temperature Oven) is special for roasting traditional PS plate and CTp tem-perature sensing plate, to improve the printing quantity of the material, the printing quantity of the roasted PS plate could increase 3-5 times.
Microcomputer temperature control, precise temperature control system and excellent heat insulation system.
Specifications:
| Model | KYHL-880 | KYHL-1400 |
| Baking Time | 6-8 min | 6-8 min |
| Max.Size | 1100×880mm | 1100×1400mm |
| Max.Quantity | 8PCS | |
| Baking Temperature | 20-250℃ | |
| Power Supply | AC380V 50/60Hz60A | |
| Heating Power | 15kw | 18kw |
| Net Weight | 520kg | 620kg |
| Outline Dimension | 1280×800×1720mm | 1780×800×1720mm |
Performance Characteristics :
1. Microcomputer temperature control, precise temperature control system and excellent heat insulation system.
2.Fully closed hot air circulation, the temperature of the baking plate is stable, the heat distribution is uniform, and the plate deformation is avoided.
3.Two separate temperature control system
could avoid the stopping for the single fault,toensure the progress of the work.
