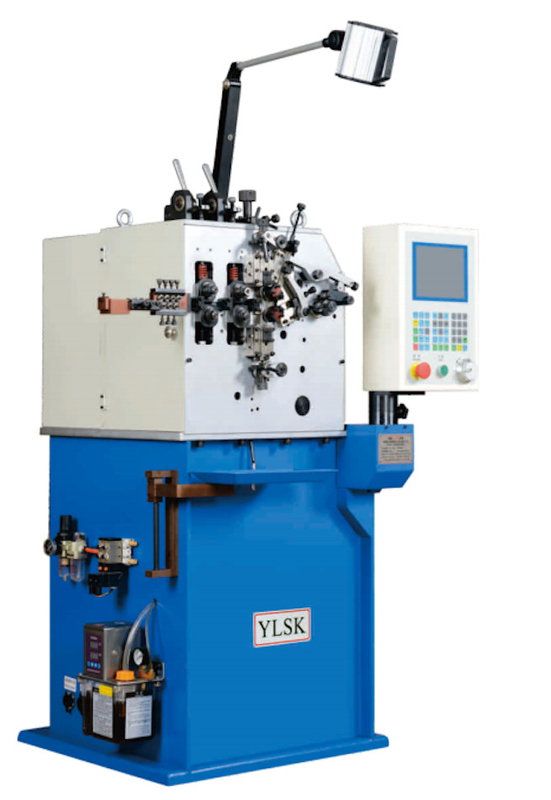

CNC Spring coiling machine
Features:
Two Axis Compression Spring Machine, first is wire feed axis which controls wire feeding and second is cam axis which drives the cam to form the spring by controlling outside diameter, pitch & cutting blade. Machine is equipped with Torsion device, suitable for producing a variety of right or left handed torsion & special shape spring.
Machine can produce various types of compression springs, oil seal rings, conical sping, tension spring and special purpose springs.
Specifications:
| Model |
YLSK-08 |
YLSK-212 |
| wire diameter(mm) |
Φ0.15-Φ0.8 |
Φ0.3-Φ1.2 |
| Axis count |
2 Axis |
2 Axis |
| outside diameter(mm) |
max Φ20 |
max Φ32 |
| max. feeding length |
unlimited |
unlimited |
| max. wire feed speed |
110m/min |
110m/min |
| cam seting value(mm) |
±0.10~±359.90 |
±0.10~±359.90 |
| servo motor of wire feed |
0.75kw |
1.0kw |
| servo motor of cam |
0.75kw |
1.0kw |
| machine size ( L*W*H) |
750*700*1400mm |
750*800*1400mm |
| Weight |
350 |
450 |
| Power |
3 phase 380V AC 50HZ |
3 phase 380v AC 50HZ |
