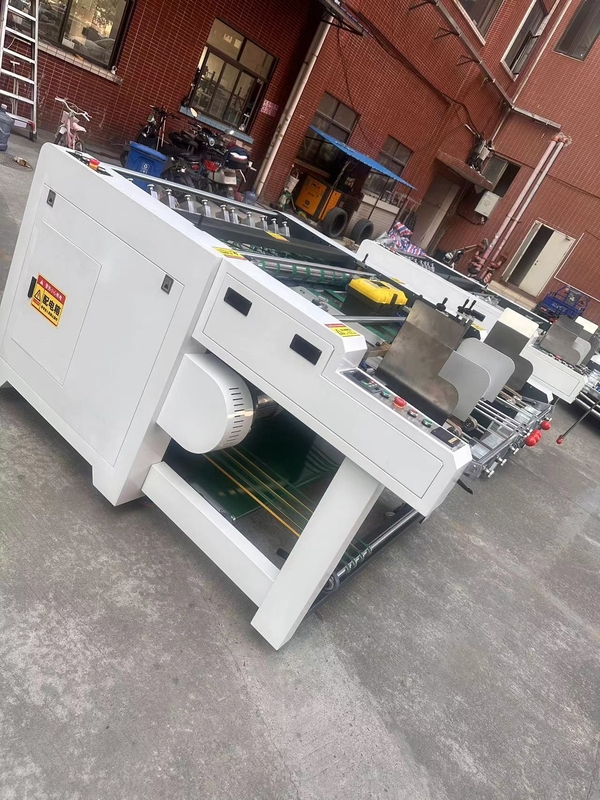

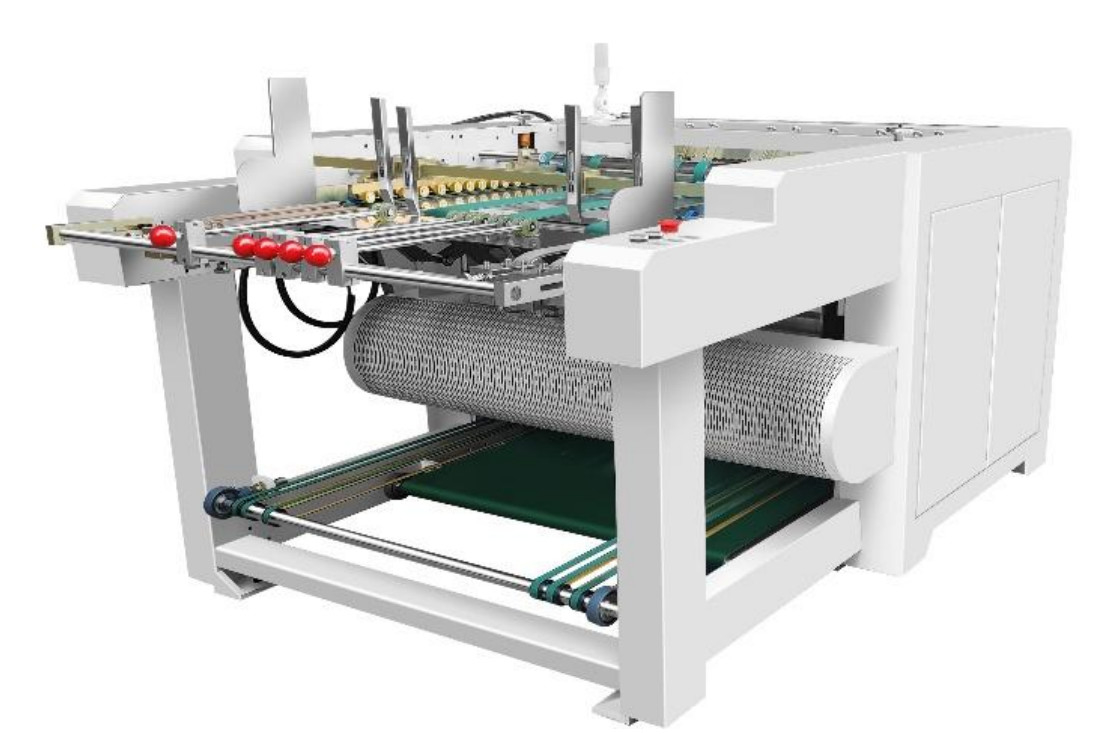

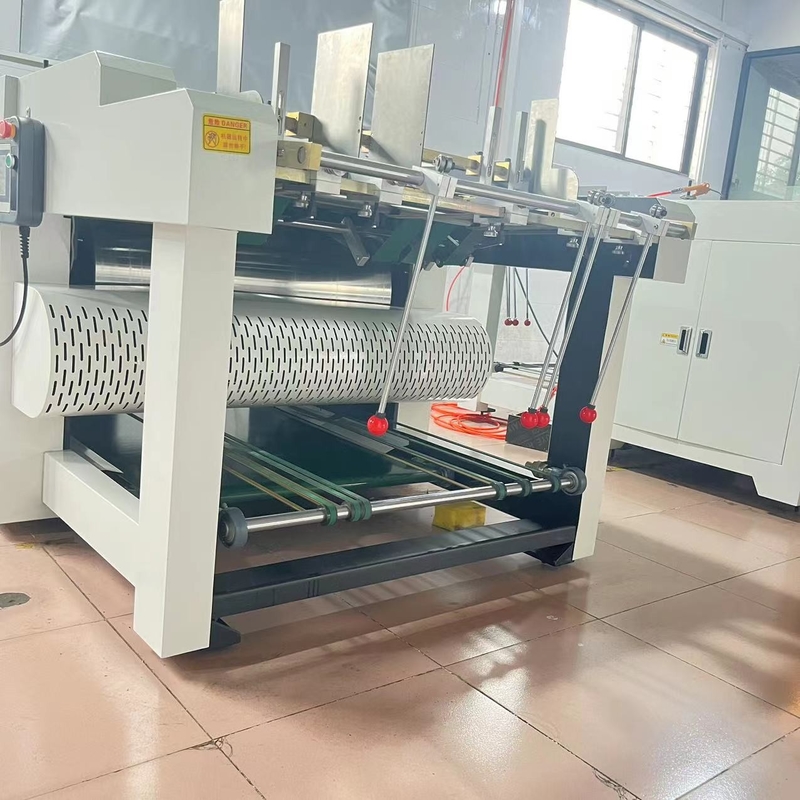

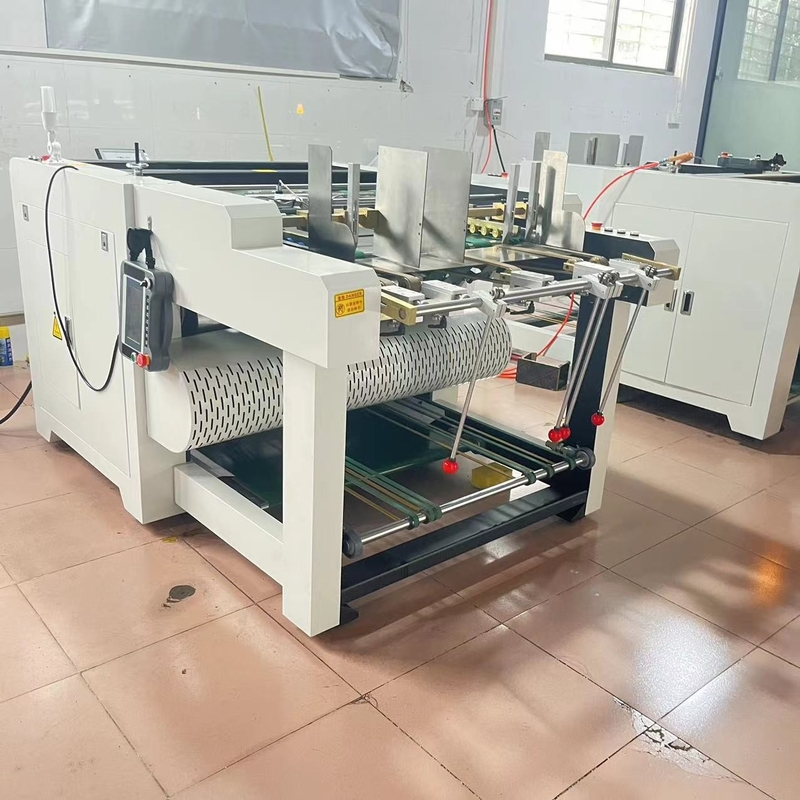

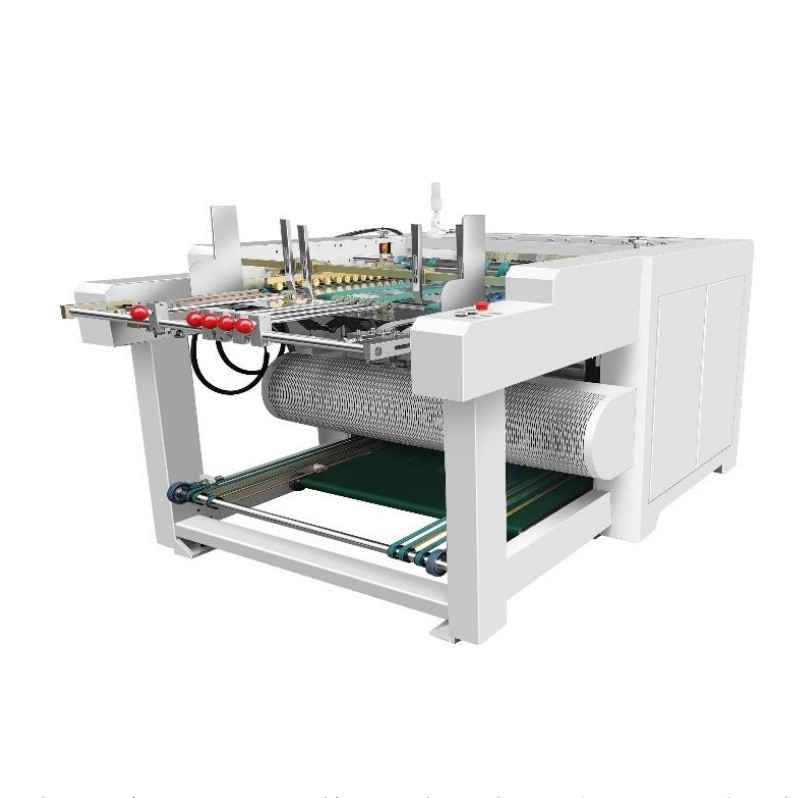

High Stability High Performance Semi Automatic V Grooving machine for Paperboard Box
Description:
DG-960/DG-1100G series automatic grooving machine is wide used for V type grooving on various hardcovers and rigid boxes, it is available to work on cardboard, grey board and wooden board.

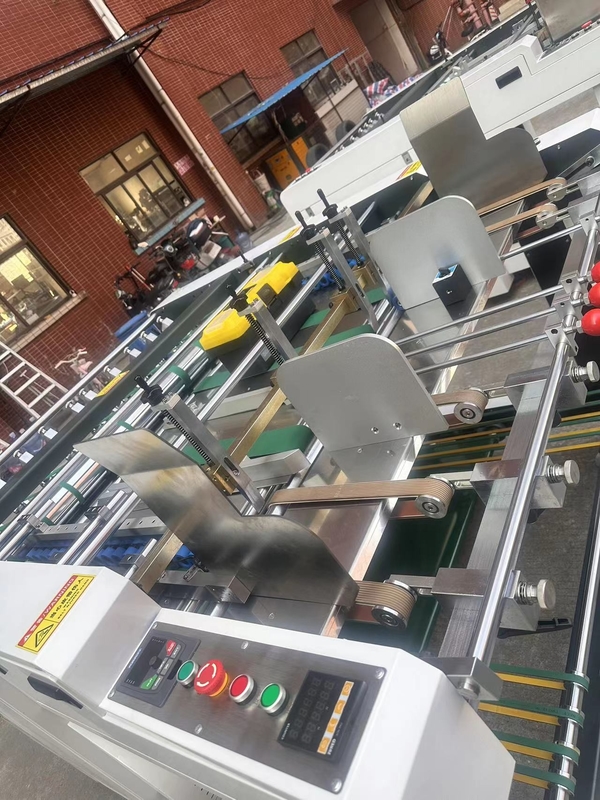

This machine is with automatic correcting structure which is easy to change materials and non-adjustment on material convey structure.It is also with new structure on V Slotting part which designed to avoid the damages of waggling.
Model
|
DG-960G
|
DG1160G |
Cardboard size
|
L80-600MM
|
L80-600MM |
W80-960MM
|
W80-1100MM | |
T0.5-4MM
|
T0.5-4MM | |
Voltage/power
|
AC380V/50HZ/1.75KW
|
AC380V/50HZ/1.75KW |
Grooving angle
|
80-140 degree
|
80-140 degree |
Air pressure
|
0.4-0.8MPa
|
0.4-0.8MPa |
Number of cutter holders
|
8 sets
|
10 sets |
Machine Dimension
|
L2150MM*W1450MM*H1300MM
|
L2250*W1750*H1300MM |
Weight
|
1400kg
|
1900Kg |
Company Profile:
Shanghai ProMega Trading Co., Ltd. is a professional manufacturer producing qualified products and equipment in printing and packaging industry. Our company was established in 1998. Our main products are Auto Bender, Laser cutter, Diecutting machine, Hot stamping machine, Laminator, Dieboard making tools and consumables in Packaging and Printing industry.
We also specialize in doctor blades, creasing matrix, jigsaw blades and different kinds of punches, click die steel, plywood as dieboards, drawing films, ejection rubber and equipment related in die cutting industry. We are always ready to provide complete products for cutting products making, printing and packaging.
