Paper Cup Printing Machine Coffee Cup Making Machine

Paper Cup Printing Machine Coffee Cup Making Machine

Coffee Cup Making Machine

Paper Cup Printing Machine

Place of Origin:

CHINA

Brand Name:

PM

Certification:

CE

Model Number:

16

Contact Us

Request A Quote
Product Details
Dimension(L*W*H)::
2250 X 1350 X 1800 Mm
Warranty::
12 Months
After Warranty Service::
Video Technical Support, Online Support
Speed::
80-95pcs/min
Function::
Forming Paper Cup
Cup Material::
Single PE/Double PE Coated Paper
Gas Source::
0.2-0.3m3/min
Product Name::
Automatic Paper Cup Machine
Application::
Paper Processing
Voltage::
380V/220V
Cup Size::
6-16oz,16-22oz
Paper Specification::
160-340g/m2
Power Supply::
11KW
Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
USD19800
Packaging Details
WOODEN CASE
Delivery Time
10 DAYS
Payment Terms
L/C, T/T, Western Union
Supply Ability
5 sets/month
Product Description



paper cup making machine



Product description:

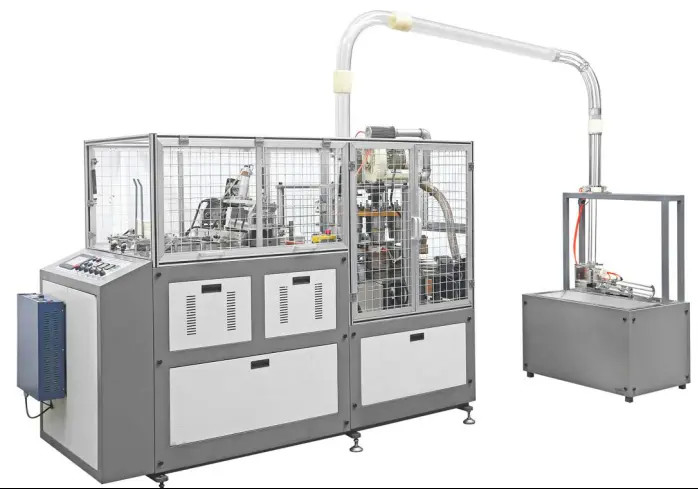

The PM 16 medium speed paper cup forming machine is based on the vertical axis paper cup machine. Through innovation and improvement, the stability and production speed of the whole machine have been greatly improved. It is suitable for the production of single and double-sided coated hot and cold beverage paper cups through continuous processes such as automatic paper feeding, middle sealing into cylinder, cup mouth lubrication, upper curling, cup bottom, cup bottom heating, rolling, and finished product blowing. Ice cream paper cups.

SPECIFICATIONS
Paper cup material
Main feature
Paper cup material
g/m3
160-340
Speed
pcs/min.
80-95
Power
V/Hz
380v 50Hz / 220 50HZ
Others
Total power
KW
11
Air pressure
M3/MIN
0.2-0.3
Weight
KGS
2500
Packing
Plywood case size
LxWxH
2600x1200x1580mm
Paper Cup Printing Machine Coffee Cup Making Machine 0

Paper Cup Printing Machine Coffee Cup Making Machine 1Paper Cup Printing Machine Coffee Cup Making Machine 2Paper Cup Printing Machine Coffee Cup Making Machine 3

Reliability of ZF-HC16:

The ZF-HC16 intelligent medium speed paper cup forming machine is an upgraded version of the vertical axis paper cup machine;

(The vertical axis paper cup machine has a capacity of 60-65 per minute, and the ZF-HC16 reaches 80-95 per minute)

The overall steel plate body and the oil-leading lubrication system ensure long-term normal and stable operation of the equipment;

(There is an automatic refueling system at the bottom of the machine, automatic filtration, automatic lubrication, PLC operation, no need to manually refuel, hygienic and quick)


Gear transmission, cylindrical barrel indexing groove wheel, optimize internal layout, ensure machine transmission precision, high synchronization performance, so as to achieve coordination between strokes, avoid collision damage parts, make up for the congenital deficiency of chain transmission jitter and transmission instability .



Packaging:

Paper Cup Printing Machine Coffee Cup Making Machine 4



Company Profile
Paper Cup Printing Machine Coffee Cup Making Machine 5
Shanghai ProMega Trading Co., Ltd. is a professional manufacturer producing qualified products and equipment in printing and packaging industry. Our company was established in 1998. Our main products are Auto Bender, Laser cutter, Diecutting machine, Hot stamping machine, Laminator, Dieboard making tools and consumables in Packaging and Printing industry.

We also specialize in doctor blades, creasing matrix, jigsaw blades and different kinds of punches, click die steel, plywood as dieboards, drawing films, ejection rubber and equipment related in die cutting industry. We are always ready to provide complete products for cutting products making, printing and packaging.
