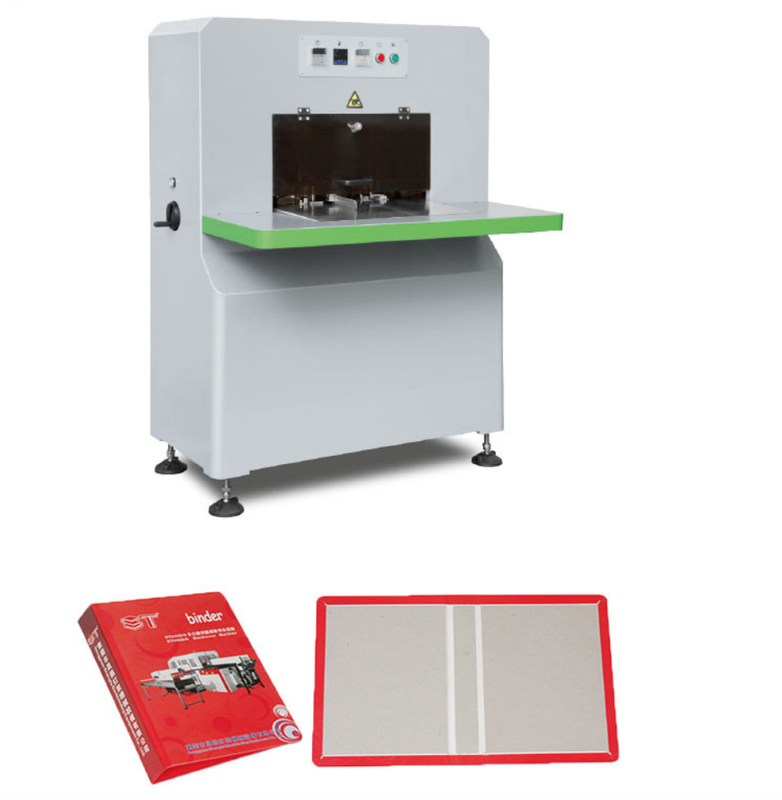

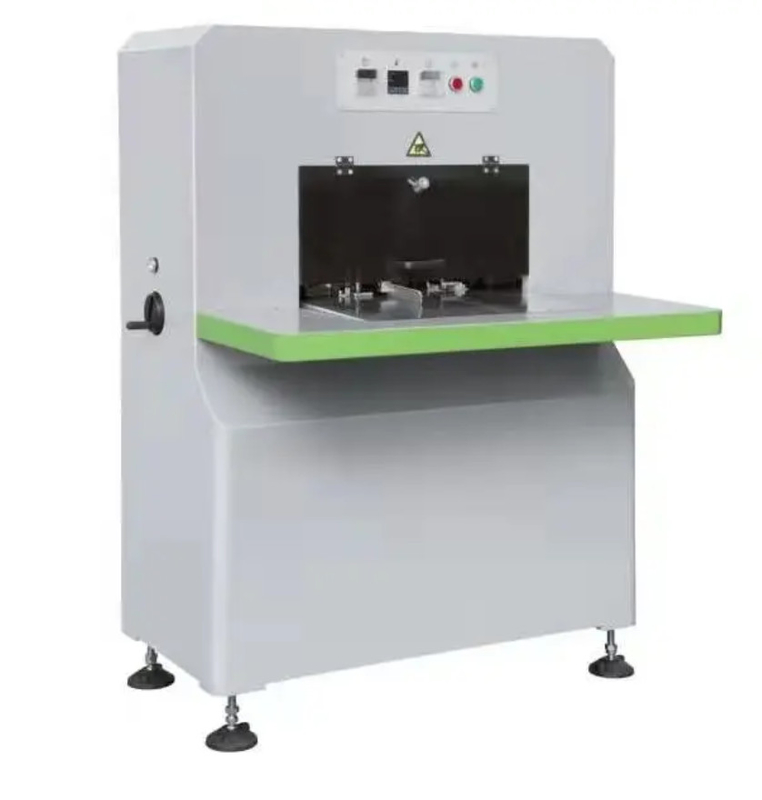

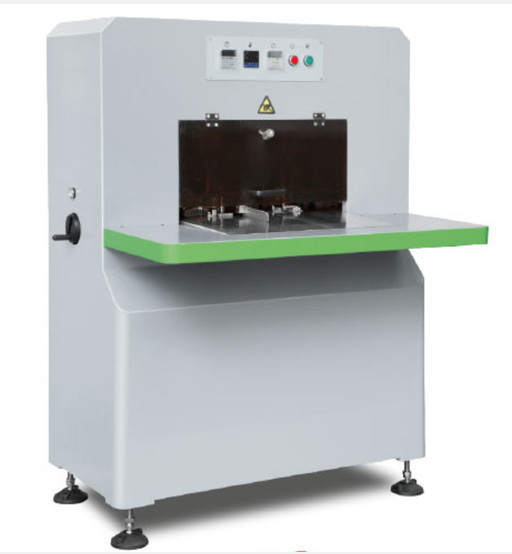

Automatic Hard Cover Round Corner Cutting Machine
Automatic Hard Cover Cutting Machine
,Round Corner Cutting Machine
,Automatic Round Corner Cutting Machine
Automatic Hard Cover Round Corner Cutting Machine
Product description:
For different rounded shell, you only need to change the rounded mold, the size adjustment is very convenient, it only takes 1 minute to change the size.
Function:
1. Temperature adjustment control
2. Pressure delay control
3. Products counter function
Workflow:
1. Cut the boards into round corner
2. Make the standard case with straight corner in normal process
3. Press the standard case with straight corner into round one by round-in machine
|
Model
|
RC19
|
|
Case size
|
Min.125mm, Max. 415mm
|
|
Round corner radius
|
R6, R8, R10, R12 (One size free)
|
|
Case thickness
|
1~4mm
|
|
Working speed
|
15-25 pcs/min
|
|
Air supply
|
0.6Mpa
|
|
Power supply
|
AC 220V, 50Hz 60Hz
|
|
Machine weight
|
210kg
|
|
Machine dimension
|
L1000*W780*H1370mm
|
Company Profile
FAQ
We are based in Shanghai, China, start from 2008, sell to South America(25.00%),South Asia(20.00%),Mid East(15.00%),Eastern Europe(10.00%),Southeast Asia(9.00%),North America(5.00%),Southern Europe(5.00%),Central America(5.00%),Africa(5.00%),Oceania(1.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Cutting rule,Auto bender,Laser cutting machine
4. why should you buy from us not from other suppliers?
Our company is in the printing and packaging industry since 2008, we provide machines and consumables mainly in the after printing industry, especially die cutting, paper cutting, box folding and pasting, laser cutting and CNC engraving.
5. what services can we provide?
Delivery Terms: FOB, CFR, CIF,EXW,CIP,FCA,CPT,DDP,DDU,Express Delivery；
Payment Currency: USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,French
-
