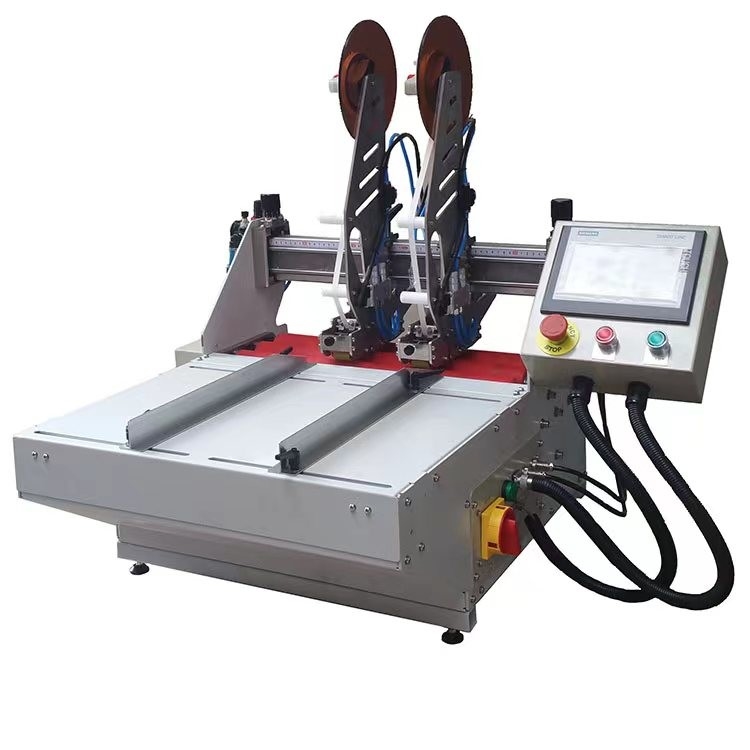

Customizable Double Side Adhesive Machine In Building Materials
Double Side Adhesive Machine
,Customizable Double Side Adhesive Machine
Customizable Double Side Adhesive Machine to Fit Your Specific Requirements
Description:
Application:
1.Used for applying the double sided tape ,sealing tape and PVC tape on the envelope ,A4 paper ,carton box ,PVC material,decoration material and so on .
2.It is widely used in building materials, packaging, printing and many other industries
3.Instead of manual operation,and saving the labor force.
Specifications:
|
Model
|
TMB 500
|
|
Product width
|
25mm (1") upto 500mm (20")
|
|
Product materials
|
Envelope ,A4 paper ,carton box ,PVC, floor board,and the others
|
|
Product Thickness (Min paper grammage)
|
100 g/m2 (for paper)
|
|
Product Thickness (The other material)
|
0.1mm upto 20mm (0.8")
(Such as floor board ,Corrugated board ) |
|
Applicator Heads standard/max
|
1 upto 3 Heads
|
|
Max number of spots
|
4 spots (8 spots can be customized)
|
|
Min spot length/
Min tape strip length |
25 mm (1")
|
|
Min distance between spots/
Min distance between tape strip and the next |
25 mm (1")
|
|
Min horizontal distance between tape strips
|
76 mm (3") (center to center)
|
|
Tape thickness
|
0.1 mm - 2 mm
|
|
Tape width (max)
|
5mm(0.2") upto 30mm(1.2")
|
|
Internal tape roll diameter
|
76 mm (3")
|
|
Max external tape roll diamete
|
400 mm (15.75")
|
|
Languages
|
English, Italian, German, French, Spanish,Russia
|
|
Speed
|
30m/min (100 ft/min)
|
|
Electricity needs
|
220V 50HZ /110V 50HZ
|
|
Compressor air needs
|
6 bar
|
|
Weight
|
65 kg
|
|
Dimension
|
800x500x680mm (L x W x H)
|
|
Warranty
|
12 Months
|
We are based in Shanghai, China, start from 2008,sell to South America(25.00%),South Asia(20.00%),Mid East(15.00%),Eastern Europe(10.00%),Southeast Asia(9.00%),North America(5.00%),Southern Europe(5.00%),Central America(5.00%),Africa(5.00%),Oceania(1.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Cutting rule,Auto bender,Laser cutting machine
4. why should you buy from us not from other suppliers?
Our company is in the printing and packaging industry since 2008, we provide machines and consumables mainly in the after printing industry, especially diecutting, paper cutting, box folding and pasting, laser cutting and CNC engraving.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,French
-
