Quality Convenient Size Adjustment for Different Rounded Shells Card Cover Corner Round Packaging Machine factory
<
Quality Convenient Size Adjustment for Different Rounded Shells Card Cover Corner Round Packaging Machine factory
>

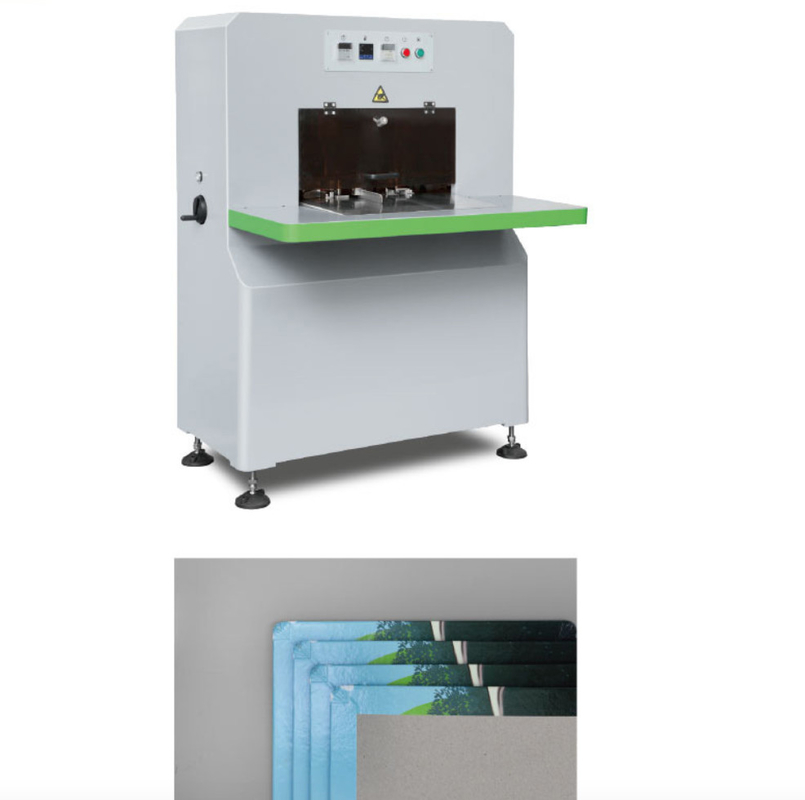

Convenient Size Adjustment for Different Rounded Shells Card Cover Corner Round Packaging Machine

Specifications
Highlight:

Corner Round Packaging Machine

,

Convenient Size Adjustment

,

Shell Card Packaging Machine
Voltage::
220V
Weight::
215 Kg
Production Capacity::
350 M/min
Type::
Paper Folding Machine
Production Speed:::
15-25pcs/min
Application:
Hard Book Cover
Function:
Make Round Corner For Book Cover
Round corner radius:
R6,R8,R10,R12
Max. workable width::
350mm
Tags:

automatic packaging equipment

automatic packing machine

auto packaging machine
Key Attributes
Brand Name: PM
Model Number: RC19
Place of Origin: CHINA
Certification: CE
Minimum Order Quantity: 1 SET
Price: Negotiable
Supply Ability: 20 DAYS/MONTH
Delivery Time: 7 DAYS
Payment Terms: L/C, T/T, Western Union
Standard Packaging: WOODEN CASE
Product Description

Card Cover Corner Round Machine



Product Feature:

The right-angle shell is pressed into rounded shell, without changing the original shell machine production technology, the finished product effect is beautiful.

For different rounded shell, you only need to change the rounded mold, the size adjustment is very convenient, it only takes 1 minute to change the size.

a.Function
1. Temperature adjustment control
2. Pressure delay control
3. Products counter function
b.Workflow
1. Cut the boards into round corner
2. Make the standard case with straight corner in normal process
3. Press the standard case with straight corner into round one by round-in machine

Specification
Model
RC19
Case size
Min.125mm, Max. 415mm
Round corner radius
R6, R8, R10, R12 (One size free)
Case thickness
1~4mm
Working speed
15-25 pcs/min
Air supply
0.6Mpa
Power supply
AC 220V, 50Hz 60Hz
Machine weight
210kg
Machine dimension
L1000*W780*H1370mm

Convenient Size Adjustment for Different Rounded Shells Card Cover Corner Round Packaging Machine 0
Convenient Size Adjustment for Different Rounded Shells Card Cover Corner Round Packaging Machine 1

Convenient Size Adjustment for Different Rounded Shells Card Cover Corner Round Packaging Machine 2​
FAQ
Q1: Are you a manufacturer ?
Yes.We are a professional manufacturer of machine for more than15 years.

Q2:Can your machine be customized?
Yes, almost all of our products can be customized, including the sizes,color, logo, package and so on.
Q3: How about your package?
A: Our machines are well wrapped by plastic film to be water proof first, then loading and fixing in a plywood case. If by
FCL(full container loading) we might use the wooden case.
Q4:How do you ship the finished products?
By Sea, By Plane, By courier, TNT , DHL, Fedex, UPS Etc.
Q5:What's the delivery time?
Within 15-35 days after get the payment
Q6: What is your after sale service?
A: Any questions will be responded within 24 hours by email, Skype, call or Whatsapp/Wechat. In addition, we have professional engineer available for overseas service...
Q7:Does it easy to operate and what can ido if it doesn't work?
First, our machine is stable and easy to operate by one man. What you do is just learn some basic thing like loading the jumbo roll paper, start the machine and cutting the paper. And we will sent you manual and video.we suggest you to come to visit our factory to learn more thing by yourself , and if there is something goes wrong,you can call us video-chat email us. And we will give solutions within 36 hrs.
Q8:If the machines spare parts broken,where can I get ?
We will give you the spare parts which is vulnerable, and some critical parts like gear box our quality is good, in case it broken within one year ,we will sent you for free.
