Place of Origin:
China
Brand Name:
Diamond
Certification:
CE BY SGS
Model Number:
D-1020
Contact Us
Widely used in the window patching to the liquor box, gift box.napkin box,cosmetic box, toy box.

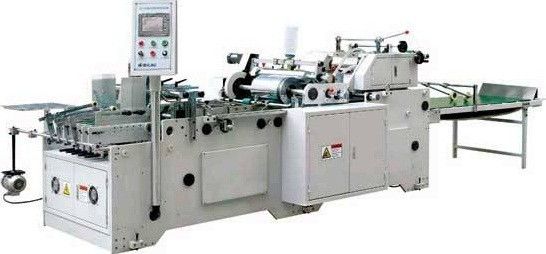

DIAMOND-1020 Window Patching Machine is widely used in the window patching to the liquor box,gift box.napkin box,cosmetic box,toy box,etc.It can be used for window film cut,creasing ,gluing and patching of card 200-500g/m2 and flute l-2.5mm thick. Specifications
| Max.paper size | 650×1020mm |
| Min .paper size | 140×80mm |
| Max. Length | 520×760mm |
| Mini. Length | 80×40mm |
| Sheet Thickness | 0.05-0.20mm |
| Working Speede | 100p/min |
| Carboard | 200-500g/m2 |
| Fitable corrugated paper | ≤2.5mm |
| Net weight | 2300Kg |
| Overall dimension | 4998×1960×1750mm |
