PLC Automatic Thermal Film Lamination Machine / Roll Laminator Machine
Commercial Laminating Machine
,Auto Lamination Machine
,Automatic Thermal Film Laminator

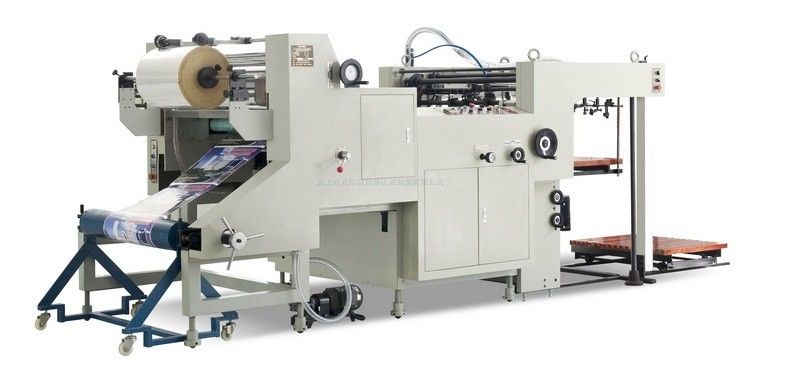

PLC Automatic Thermal Film Lamination Machine / Roll Laminator Machine
Features:
Fully automatic laminator is designed for the lamination of pre-glued film and paper. This laminating machine is composed of feeding system, laminating system and cutting system. The electric and pneumatic devices are controlled by programmable control (PLC) system. Heating roll adopts oil circulation heating system to homogenize and stabilize laminating temperature. This machine centralizes the features of compact structure, high automation, humanized operation design, and is an excellent choice for large and medium-size enterprises.
Technical Parameters:
|
Model |
SAFM-800 |
SAFM-1000 |
|
Max Paper Size |
780*1040mm |
1040*780mm |
|
Min Paper Size |
350*300mmm |
350*440mmm |
|
Paper Thickness |
125-500g/^2 |
125-500g/m^2 |
|
Max Laminating Speed |
40 m/min |
0-40m/min |
|
Gross Power |
22kw |
22kw |
|
Total Weight |
1500kg |
1600kgs |
|
Overall Dimensions |
4800*1650*1700mm |
4800*1850*1700mm |
-
High - End Version 400w 600w 800w Laser Cutting Machine For Die Board Maker
MPS-DS1212 SERIES OF HIGH-END VERSION LASER CUTTING MACHINE FOR DIE BOARD MAKER MPS-DS, the high-end version of medium power laser cutting machine, adopts the principle of constant light path design.it keeps laser in the process of device running, materials are fixed on the platform with the moving ...
-
Laser Cutting Machine 1000W/1500W/2200W Fast Flow Generator For Die Board Making
1500W 3 Phase Metal Laser Cutting Machine for die cutting Factory Specifications: Model PMH-1812 Laser generator power 1500W max. Laser beam wave 10.6 m Power adjustment 50-1500W X axis travel 1250mm Y-axis travel 1850mm Positioning accuracy +/- 0.05mm/m Maximum positioning speed 10m/minute max. ...
-
Fully Automatic Auto Bender With Bending Cutting Notching And Lipping 910C Model For 1.5/2/3pt Steel Rule
Completely Computer Control Diecutting rule Auto Bending Machine for Dieboard making Main technical specifications 90 ° minimum R no repair knife 1.5 mm (support blade thickness 0.71) 2.0mm (support blade thickness 1.07) 180 ° minimum R no repair knife 2.5mm (support blade thickness 0.71) 3mm ...
-
Digital Printing / Graphic Express Printing Unit Hydraulic Paper Cutting Machine
Hydraulic paper cutting machine Guillotine for Digital Printing for Graphic Express Printing Unit Product Description: Cutting knife and paperweight are controlled by hydraulic transmission. Fully hydraulic drive makes the machine more secure and imported hydraulic parts ensure the stability of the ...
