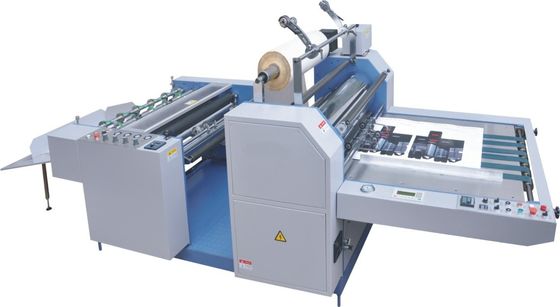

Split Semi Automatic Industrial Laminating Machine / Roll Laminator Machine
Commercial Laminating Machine
,Auto Lamination Machine
PROM-720B / PROM-920B / PROM-1100B Split Semi-Automatic Laminating Film Laminating Machine
Features
PROM series automatic laminating machine is a compound device, it is mainly equipped with transportation system, laminating system and cutting system. The electrical device is contolled by PLC, heating roller use the circulation of heated oil to insure the accuracy of laminating temperature. The whole machine has compact structure, automatization and humanity operation. It is the good choice for the large and medium scale enterprise.
| Technical Parameters | |||
| Model | Prom-720B | Prom-920B | Prom-1100B |
| Max Laminating Size | 680mm | 880mm | 1040mm |
| Paper Thickness | 100-500g/m2 | 100-500g/m2 | 100-500g/m2 |
| Laminating speed | 0-30m/min | 0-30m/min | 0-30m/min |
| Gross Power | 20kw | 22kw | 24kw |
| Total Weight | 1700kg | 1900kg | 2100kg |
| Overall Dimensions | 4600x1560x1500mm | 4600x1760x1500mm | 4600x1960x1500mm |
Configuration
· SCHNEIDER frequency inverter equipped for infinite speed variation ensures speed adjustment much more convenient and efficient, and makes the machine run stably and quietly.
· Enlarged size of chromed heating roller is mounted with built in oil heating system which provides balanced laminating temperature and owns excellent temperature persistence.
· SCHNEIDER PLC system realizes automatic paper separation, breakdown alert for self-protection etc.Functions.
· Pneumatic film unwinding system positions film.roll more accurately, and makes the loading and unloading of film roll and film unwinding tension much more convenient.
· Double sets of serrated perforating wheels provide different choices for different specifications of sheets and film.
· Perfected traction adjusting system makes traction adjustment more convenient and efficient.
· Corrugating delivery system and vibrating receiving system ensure paper collection more regular and convenient.
-
