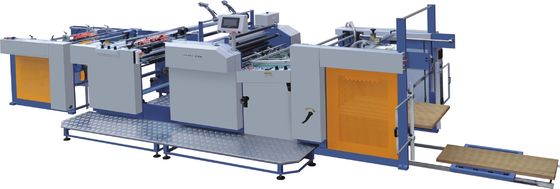

High - Speed Industrial Laminating Machine With Hydraulic Pressuring System
Auto Lamination Machine
,Paper Lamination Machine
PROM-920A / PROM-1050A Fully Automatic High-speed Laminator
Configuration
· Automatic paper feeder adopts oil-free vacuum pump to feed paper automatically.and paper can be added even if the machine is kept running,which improves working efficiency so much．
· Man-machine interface system:color touch screen simplifies the machine operation.on the touch screen,as Iong as the operator inputs paper size, overlap length and working speed etc,.the machine can realize completely automated operation. and on touch screen,working status of the machine can be checked at any time．
· Automatic paper feeding system is equipped with no paper protector,paper break protector and paper superposing protector,which are controlled by photoelectric and mechanical systems.when no paper,paper break or paper superposition occurs,the machine will stop automatically for self-protection．
·Conveying table is furnished with air aspirator and front lay etc.to regulate paper conveying and overlap and improve lamination prevision．
· High precision of big chrome plated heating roller is equipped with built-in oil heating system,which has excellent performance to temperature control.The Iaminating temperature is adjustable upon applications Or electromagnetic heating.．
· Hydraulic pressuring system provides automatically big and steady pressure to guarantee good laminating quality．
· Air expansion shaft releases film,and perfects the precision of film release,and also makes the Ioading and unloading offilm rolI much more convenient．
· The combination of air expansion shaft and braking device can adjust film release tension and release speed．
· Pneumatic cutting system realizes automatic paper cut as Iong as the operator inputs the size of workable paper on the touch screen．
· Collecting unit iS furnished with corrugating paper pressing system,which settles completely the crimping trouble of thin and big size of Iaminated paper．
| Technical Parameters | |
| Model | Prom-920A |
| Max Paper Size | 850x1050mm |
| Min Paper Size | 340x340mm |
| Laminating speed | 0-60m/min |
| Paper weight | 127-400g |
| Gross Power | 30kw |
| Total Weight | 5000kg |
| Overall Dimensions | 9000x2260x1900mm |
-
High - End Version 400w 600w 800w Laser Cutting Machine For Die Board Maker
MPS-DS1212 SERIES OF HIGH-END VERSION LASER CUTTING MACHINE FOR DIE BOARD MAKER MPS-DS, the high-end version of medium power laser cutting machine, adopts the principle of constant light path design.it keeps laser in the process of device running, materials are fixed on the platform with the moving platform, thus, it can ensure the stability of the optical path. The advantage of this laser cutting machine: 1. The laser cutting machine equipped with the laser generators
-
Laser Cutting Machine 1000W/1500W/2200W Fast Flow Generator For Die Board Making
1500W 3 Phase Metal Laser Cutting Machine for die cutting Factory Specifications: Model PMH-1812 Laser generator power 1500W max. Laser beam wave 10.6 m Power adjustment 50-1500W X axis travel 1250mm Y-axis travel 1850mm Positioning accuracy +/- 0.05mm/m Maximum positioning speed 10m/minute max. Control system motion control card / NC Transmission system screw guide Driving system Three-axis servo drive system Optical system X axis Laser moves Y axis table moves Moving system
-
Fully Automatic Auto Bender With Bending Cutting Notching And Lipping 910C Model For 1.5/2/3pt Steel Rule
Completely Computer Control Diecutting rule Auto Bending Machine for Dieboard making Main technical specifications 90 ° minimum R no repair knife 1.5 mm (support blade thickness 0.71) 2.0mm (support blade thickness 1.07) 180 ° minimum R no repair knife 2.5mm (support blade thickness 0.71) 3mm (support blade thickness 1.07) Maximum bending $ 1000 mm Maximum bending angle 120 ° Minimum 90 ° bend size 3 mm Minimum bending full circle diameter 5mm Feeding accuracy ± 0.05mm Tail
-
Digital Printing / Graphic Express Printing Unit Hydraulic Paper Cutting Machine
Hydraulic paper cutting machine Guillotine for Digital Printing for Graphic Express Printing Unit Product Description: Cutting knife and paperweight are controlled by hydraulic transmission. Fully hydraulic drive makes the machine more secure and imported hydraulic parts ensure the stability of the system. The machine has the function of a reference setting and keeping, and the effectiveness of the reference and self-diagnostic function; infrared protection and hands button
