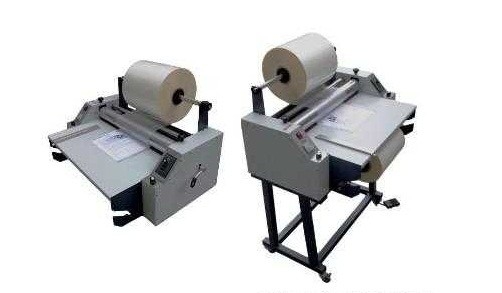

YFMC-720A / 920A / 1100A Manual Laminating Machine for Packing and Printing
Auto Lamination Machine
,Paper Lamination Machine
,880mm Industrial Laminating Machine
The main advantage of this machine:
1. economic price
2. pre-glued film
3. glueless film
4. Hydraulic pressuring system
5. Manual paper feeding
Applications:
Both pre-glued film and glueless film are acceptable.
Roller Diameter:
268mm/320mm
Features:
1. economic price
2. pre-glued film
3. glueless film
4. Hydraulic pressuring system
5. Manual paper feeding
6. easy operation & adjustment
Detailed product description:
1. SCHNEIDER frequency converter is equipped for infinitely variable speed, and operator can change the machine’s speed easily and guarantee the machine’s running stable.
2. One-piece construction design makes the machine run more stably, and lengthens the machine’s lifetime.
3. Manual paper feeding.
4. Magnetic regulating plate can be adjusted easily to regulate manual paper feeding.
5. High precision of chrome plated heating roller is equipped with built-in oil heating system, which has excellent performance to temperature control. The laminating temperature is adjustable upon applications.
6. Hydraulic pressuring system provides big and steady pressure to guarantee good laminating quality.
7. Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.
8. Film perforating wheel perforates film edge to make the separation of laminated paper easy.
9. Laminated paper is rolled up automatically by the winding spindle. Winding speed is adjustable upon.
Technical specifcation:
|
Model |
PR-720A |
PR-920A |
PR-1100A |
|
Max aminating width |
680mm |
880mm |
1040mm |
|
Max laminating Speed |
0-30 m/min |
0-30 m/min |
0-30 m/min |
|
Laminating temprature |
60-130°C |
60-130°C |
60-130°C |
|
Power |
11kw |
13kw |
16kw |
|
Voltage |
380V |
380V |
380V |
|
Total Weight |
600kg |
700kg |
900kg |
|
Overall Dimensions |
2100*1300*1600mm |
2100*1500*1600mm |
2100*1700*1600mm |
Details:
We are packaging and printing industry supplier
Welcome to inquiry us!
-
