500w To 700w Steel Plate Laser Cutting And Engraving Machine For Metal Board
Laser Engraving Machine
,Laser Cutter Machine
,Steel Plate Laser Cutter And Engraver
MPS-HG-500W To 700W Steel Plate LASER CUTTING MACHINE FOR Metal BOARD
Feature Description
- Adopt Co2 DC excitaitve 500w~700w laser tube made by ourself. working stable, good laser beam model
- Path of laser beam compensate system. Realize the laser facula always the same, focus invariable.
- High quality optical device. cooling system by chiller, protect the lens effectively
- Imported servo motor, moving stable
- Cast iron structure of machine tools, laser generator is separate from machine tools, working without shake. Electronic interference.
- Adopt automatic focus adjust system. high precision for cutting
- Work without waiting, Without preheating. Low power consumption. Low cost.

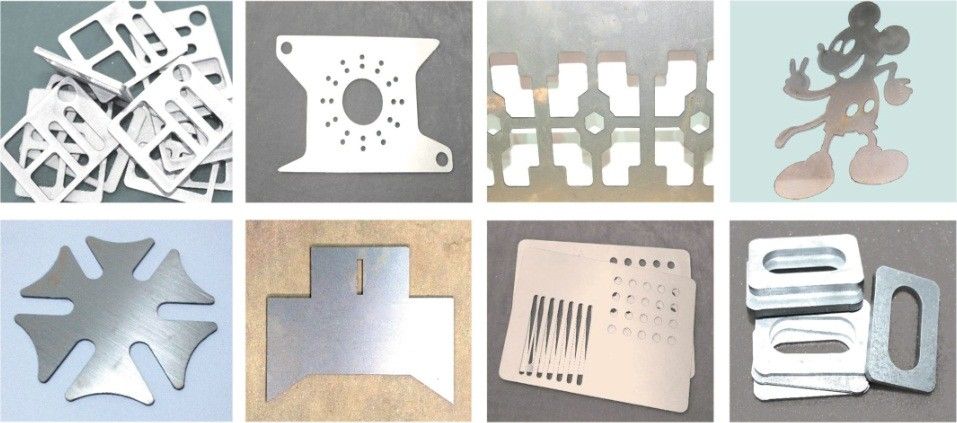

- Apply metal cutting for sheet metal industry, machinery industry, hardware processing. advertisement industry.
Device Configuration
The cooling system for laser equipment, temperature control function is to ensure the stability of the beam quality and greatly improve laser life.
High precision laser cutting system
Pneumatic splint and upper plate rolling device, pull system maximize the use rate of plate and the material processing precision
The transmission system is equipped with imported ball screw and linear guide rail.
|
PARAMETERS OF APPARATUS |
|||
|
Model |
MPS-HG-500W~700W |
||
|
Laser type |
Co2 direct-current excitation glass apparatus |
||
|
Laser wavelength |
10.6um |
||
|
Working area |
1250x2500mm |
||
|
Full width cutting precision |
±0.05mm |
||
|
Repeated Positioning accuracy |
±0.05mm |
||
|
Power supply |
220V ±5% 50Hz |
||
|
The total power |
8KW~10KW |
||
|
Total weight |
3.0T |
||
|
Area of size |
4500mmx3700mmx1600mm |
||
-
