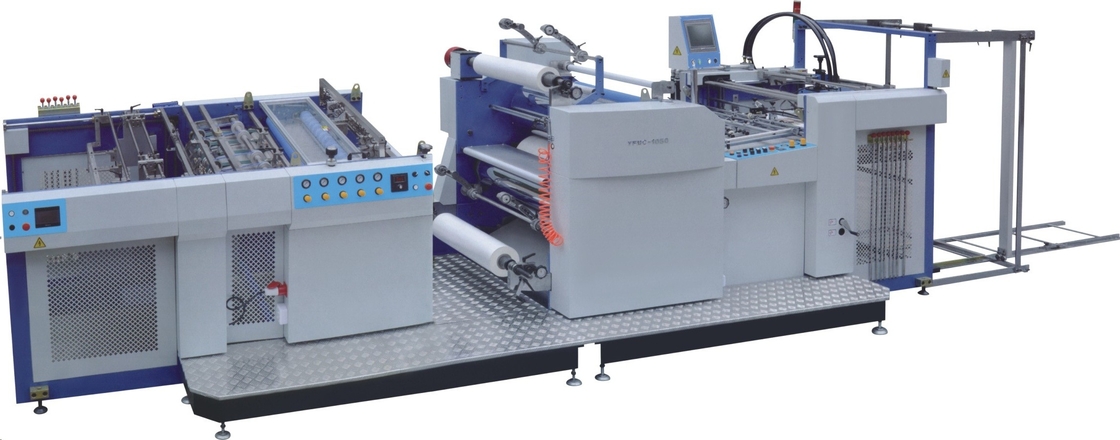

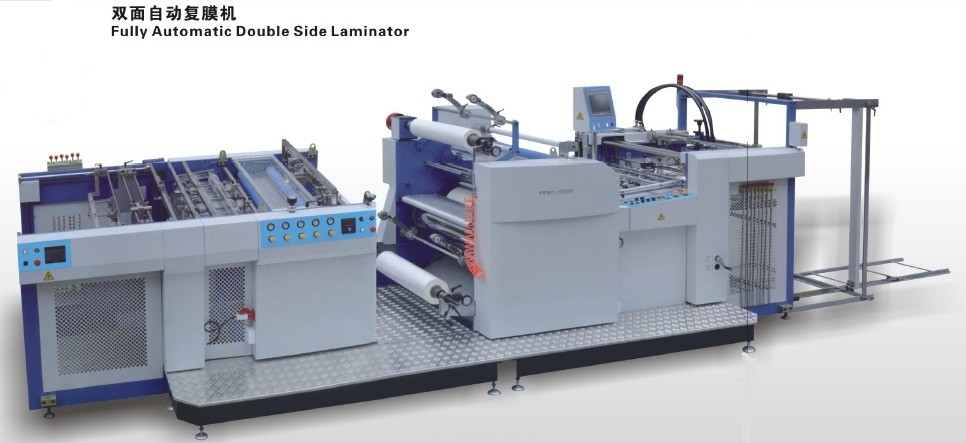

Fully Automatic High speed Paper Lamination Machine Servo control PROM-920B / PROM-1050B
Commercial Laminating Machine
,Paper Lamination Machine
PROM-920B / PROM-1050B Fully Automatic High-speed Laminator
Configuration
· Overlapping regulator: Servo control and front lay to guarantee accuracy of paper overlapping.
· Side lay regulator: Servo control and side lay to guarantee alignment of paper from side.
· Smart constant temperature heating roller: top heating roller equipped with built-in oil heater, temperature measuring sensor and temperature controller to make the temperature stable and constant. bottom heating roller is equipped with cast aluminum heater for temperature control, stable fast temperature raise and constant.
· Film shaft: air shaft with dividing rule make the loading, unloading and positioning of the film more accurate. The extension of film is controlled by pneumatic breaker.
· Separation system: Pneumatic separation system to separate the paper stably and quickly.
· Electrical system: Schneider PLC inverter Omron and other international brand parts make the machine run smoothly, easy adjust.
| Technical Parameters | |
| Model | Prom-920B |
| Max Paper Size | 850x1050mm |
| Min Paper Size | 340x340mm |
| Laminating speed | 0-60m/min |
| Paper weight | 127-400g |
| Gross Power | 30kw |
| Total Weight | 5000kg |
| Overall Dimensions | 9000x2260x1900mm |
| Technical Parameters | |
| Model | Prom-1050B |
| Max Paper Size | 1050x1050mm |
| Min Paper Size | 340x340mm |
| Laminating speed | 0-60m/min |
| Paper weight | 127-400g |
| Gross Power | 30kw |
| Total Weight | 5000kg |
| Overall Dimensions | 9000x2260x1900mm |
-
