Automatic Industrial Laminating Machine / Equipment With Cutting System

Specifications
Highlight:

Commercial Laminating Machine

,

Paper Lamination Machine
Min Laminating Size:
290x290mm
Max Laminating Size:
620x780mm Or 780x1040mm
After sale Service:
Oversea Installation And Training
Automatic Grade:
Fully Automatic
The period of warrnty:
1 Year
Laminating temperature:
20 ~ 130℃
Tags:

Paper Lamination Machine

Auto Lamination Machine

Commercial Laminating Machine
Key Attributes
Brand Name: Promega
Model Number: PROM-650 PROM-800
Place of Origin: Zhejiang, China
Certification: CE
Minimum Order Quantity: One set
Price: USD 8,000 to 12,000 per set
Supply Ability: 2 sets per week
Delivery Time: 15 days
Payment Terms: L/C, T/T
Standard Packaging: Wooden case
Product Description

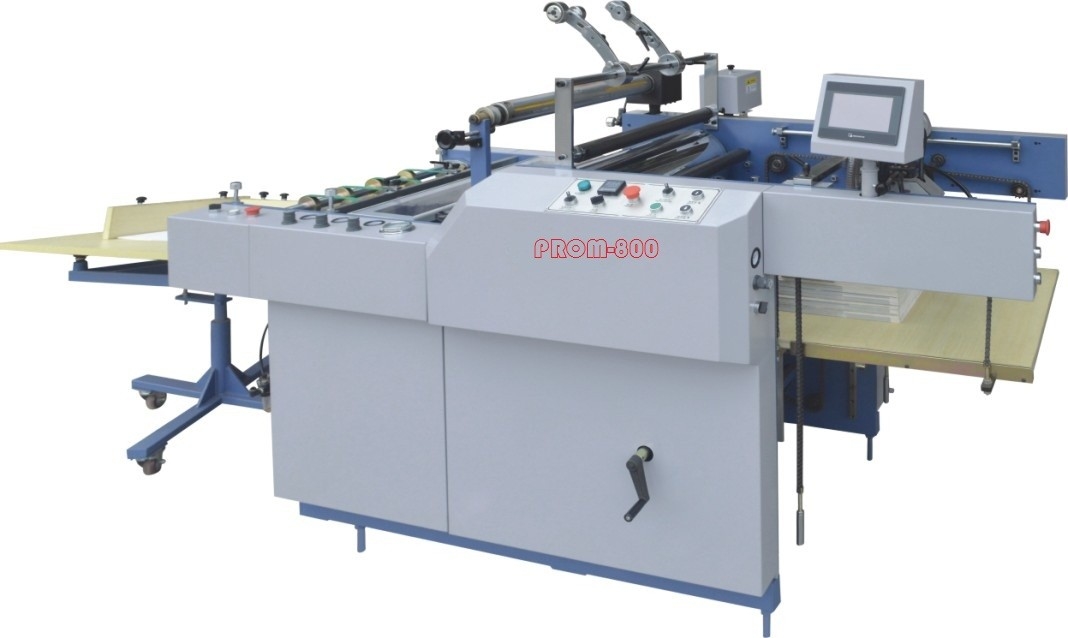

PROM-650 / PROM-800 Automatic  Laminating Film Laminating Machine

Features



PROM series automatic laminating machine is a compound device, it is mainly equipped with transportation system, laminating system and cutting system. The electrical device is contolled by PLC, heating roller use the circulation of heated oil to insure the accuracy of laminating temperature. The whole machine has compact structure, automatization and humanity operation. It is the good choice for the large and medium scale enterprise.




Technical Parameters
Model  Prom-650 Prom-800
Max Laminating Size 620x780mm 780x1040mm
Min Laminating Size 290x290mm 290x290mm
Laminating speed 0-45m/min 0-45m/min
Laminating temperature 20 - 130℃ 20 - 130℃
Paper weight 157-400g 157-400g
Gross Power 13kw 15kw
Total Weight 1200kg 1500kg
Overall Dimensions 3200x1550x1650mm 4000x1850x1650mm





Configuration



· Stream feeder, with automatic sheeting and jogger delivery.



· Oil free vacuum pump on stream feeder with both separating and forwarding suckers.



· Servo-controlled pump on stream feeder with both separating and forwarding sucker.



· Colour touch screen interface, programable for sheet size and overlap.



· Oil heated for stable and precise PID electronic control of temperature.



· Film slitting and perforating system on feed roll.



· Sheet decurling device for production of flat laminated sheets.



· Strong pneumatic laminating pressure.



· Pneumatic film tension brake.



· Swing-away film loading onto airshaft.



· Whole machine is easily moved by pallet trolly for convenient storage in limited spaces.




Automatic Industrial Laminating Machine / Equipment With Cutting System 0





Automatic Industrial Laminating Machine / Equipment With Cutting System 1
