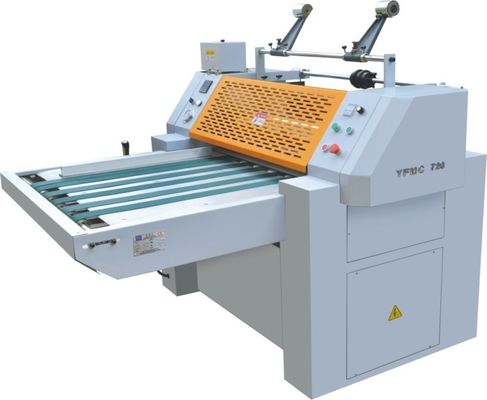

Magnetic Regulating Plate Film Manual Laminator Machine / Lamination Paper Machine
Auto Lamination Machine
,Paper Lamination Machine
Manual Laminating Equipment Film Laminator Machine
Configuration
· SCHNEIDER frequency converter is equipped for infinitely variable speed, and the operator can change the machine's speed easily and guarantee the machine’s running stable.
· Manual paper feeding.
· Magnetic regulating plate can be adjusted easily to regulate manual paper feeding.
· High precision of chrome plated heating roller is equipped with built-in oil heating system, which has excellent performance to temperature control. The laminating temperature is adjustable upon applications.
· Hydraulic pressuring system provides big and steady pressure to guarantee good laminating quality.
· Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.
· Film perforating wheel perforates film edge to make the separation of laminated paper easy.
· Laminated paper is rolled up automatically by the winding spindle. Winding speed is adjustable upon applications.
· One-piece construction design makes the machine run more stably, and lengthens the machine’s lifetime.
| Technical Parameters | |||
|---|---|---|---|
| Model | Prom-M720B | Prom-M920B | Prom-M1200B |
| Max Laminating Width | 620mm | 820mm | 1100mm |
|
Speed of Laminating |
0-30m/min | ||
| Temperature of laminating | 60-130℃ | ||
| Total Power | 10kw | 12kw | 15kw |
| Voltage | 380V | ||
| Weight of Machine | 600kg | 700kg | 900kg |
| Overall Dimensions | 2100x1300x1600mm | 2100x1500x1600mm | 2100x1700x1600mm |
-
