Quality Heavy Dual - use Conputer Foil Hot Stamping Machine With Heating Function factory
<
Quality Heavy Dual - use Conputer Foil Hot Stamping Machine With Heating Function factory
Quality Heavy Dual - use Conputer Foil Hot Stamping Machine With Heating Function factory
>

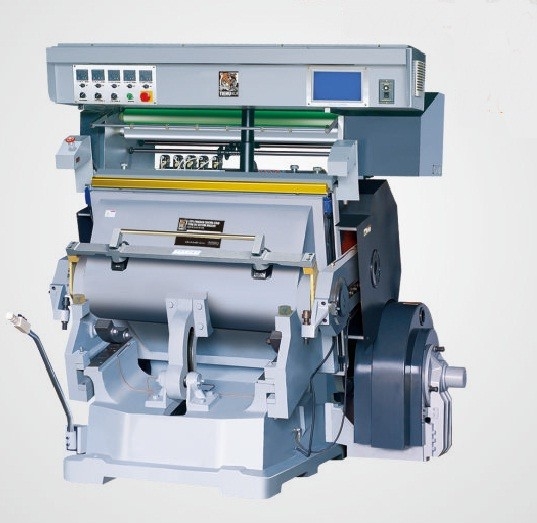

Heavy Dual - use Conputer Foil Hot Stamping Machine With Heating Function

Specifications
Highlight:

Die Cutter Machines

,

Die Cutting Machine
Inner Chase Size:
From 750x520mm To 1300x920mm
Max. Rule Length:
15m~40m
Working Speed:
16~28 Times
Motor Power:
2.2kw~7.5kw
Machine Weight:
2000kg~6200kg
External Dimensions:
From 1350x1500x1600mm To 4200x2400x2580mm
Tags:

Die Cutting Machine

Die Cutter Machines

Hot Foil Stamping Machine
Key Attributes
Brand Name: Promega
Model Number: PRO-HSCC-X
Place of Origin: Zhejiang, China
Certification: CE
Minimum Order Quantity: One set
Price: USD 4800 ~ 20,000 per set
Supply Ability: 30 Sets per week
Delivery Time: 10 Working days
Payment Terms: L/C, T/T
Standard Packaging: In wood case
Product Description

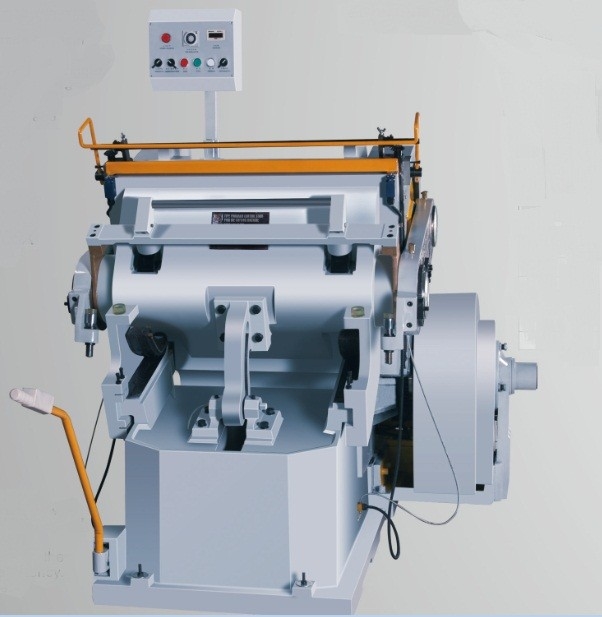

Heavy Series Creasing And Cutting Machine Dual-use Conputer Foil Hot Stamping and Die-cutting Machine

Introduction



Our company is a national hi-tech enterprise which specialized in researching and developing the die cutting and hot stamping equipments. Now it hsa several series including manual, semi-automatic, fully automatic and more than 70 kinds of specifications for customers to choose.



The aim of our company is " Consider honesty as basis, quality first, service first."



Features



Compared to the standard series, the quality of base frame is much stronger. As the following showes:



The High Strength Integral Casting



Heavy Dual - use Conputer Foil Hot Stamping Machine With Heating Function 0



Steel rod

Safety adjustable rod (patent products)



Heavy Dual - use Conputer Foil Hot Stamping Machine With Heating Function 1



Integral main shaft cover



Heavy Dual - use Conputer Foil Hot Stamping Machine With Heating Function 2



Structure Optimization of QSn6.5-01 tin bronze



Heavy Dual - use Conputer Foil Hot Stamping Machine With Heating Function 3



Single line damping oil Separation



Heavy Dual - use Conputer Foil Hot Stamping Machine With Heating Function 4



Main Specification



Model Inner Chase Size Max. Rule Length Speed Motor Power Machine Weight External Dimensions
PRO-HSCC-X750 750x520mm 15 meters 28times/min 2.2kw 2000kg 1540x1650x1650mm
PRO-HSCC-X1100 1100x800mm 30 meters  23times/min 4kw 5000kg 2080x1950x1900mm
PRO-HSCC-X1600 1600x1250mm 43 meters 14times/min 11kw 12000kg 2300x2700x2400mm
PRO-HSCC-X1800 1800x1300mm 50 meters 14times 11kw 14200kg 2300x2900x2400mm
PRO-HSCC-X2200 2200x1400mm 70 meters 13times 15kw 18000kg 3380x2400x2580mm
