Mini size CNC Engraving Cutting Post Press Equipment 300 x 300 mm
UV Coating Machine
,Post Press Machine

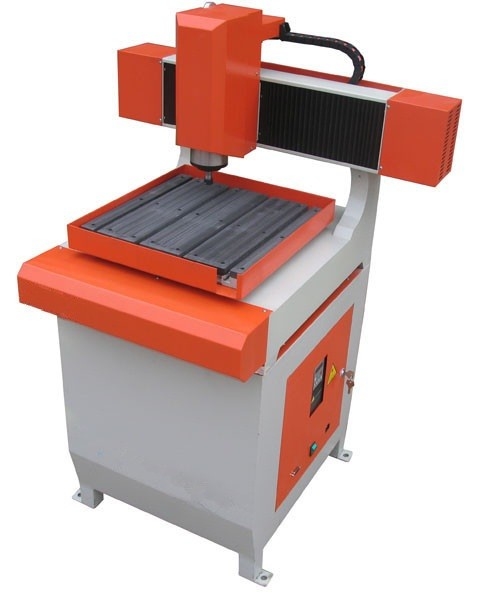

300 x 300 mm CNC Engraving Machine Package Machinery Cutting Machine CNC Router
Product features
Mini size, easy for carrying and processing.
Table movement, stabilizing and precision.
Dust-proof structure, long service life.
Imported ball screw rod and square guide rail, high precision.
Memory on break point, continuous processing on breaking, the next day.
Aluminum surface, convenient to fix materials.
Software update timely.
Connect with all kinds of 3D engraving software.
Applications
Advertisement: Engraving and cutting of various labels and number plate, marble, etc for artistic effects on materials , brass, and other non-metallic material.
Crafts: Engraving characters of any language and patterns on gifts and souvenirs, primitive processing and shaping of artistic crafts, and stiletto.
Moulding: Engraving delicate letter and flower pattern, primitive and fine processing of the small mould.
Architectural models: Engraving fine window, fencing and wall patterns, etc.
Seal: Engraving seals and medal on materials such as buffalo horn, wood etc.
Label: Engraving character, number, and other pattern on label for products and on product directly.
Wood processing: Processing density board, stiletto for surfing board, processing of marbles, cabinet and furniture.
|
Model |
Pro-CNC-3030 |
|
Working Zone: (X Y Z) |
300x 300mm |
|
Z axis working size |
80mm(or higher) |
|
Table Size (W× L) |
300× 300mm |
|
Resolution |
< 0.001mm |
|
Cutting Accuracy |
± 0.01/300mm |
|
Repositioning Accuracy |
± 0.01mm |
|
Axis Drive System (X Y Z) |
Brand new Taiwan HINWIN1605 Ball screw |
|
Guide rails system |
Brand new Taiwan HINWIN HGH20 Linear square rails |
|
Drive Type |
stepper motor |
|
Spindle |
800W water-cooled with 24, 000rpm, VFD |
|
Max. Working speed |
6, 000mm/min |
|
Collets Type |
3.175mm,4mm,6mm |
|
Command Code |
G*. u00*. mmg*nc., HPGL,PLT |
|
Operational System Software |
Type 3/Artcam/Castmate/Wentai/Mastercam/CAD |
|
Interface |
PCI |
|
Max. Power Consumption |
1.8KW |
|
Voltage |
AC220V± 10%/50~60Hz |
|
Weight |
200kg± 10% |
|
Warranty |
12 Months (spindle: 6 months) |
-
