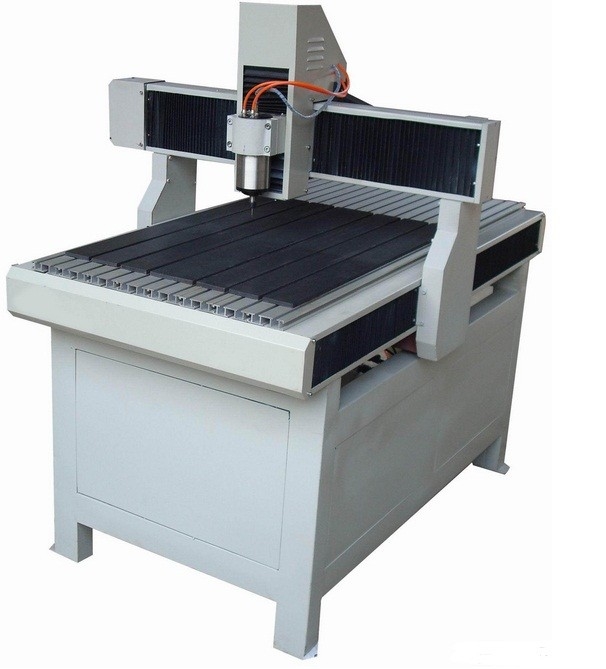

Welded Structure CNC Router Machine / CNC Engraving machine 600 x 900 mm
Post Press Machine
,Automatic Packaging Machines
600 x 900 mm CNC Router Machine Package Machinery Cutting Machine CNC Engraving
features of router cnc
1. High quality domestic water cooling spindle: low noice&cheap price.
2. Original HSD air cooling spindle:high quality & long lifetime
3. High accuracy HIWIN linear & TBI ball screw from Taiwan
4. Thick steel tube structure: strong & stalbe frame
5. Big stepper motor& Yako driver: stable moving system
6. Japanese Yaskawa servo system: much powerful and higher precision
7. DSP/Ncstudio/Syntec control system fits for different machines’ functions.
Parameters of router cnc
|
|
Description |
Parameter |
|
1 |
Type |
router cnc |
|
2 |
X,Y,Z Working Area |
600*900*120mm |
|
3 |
X,Y,Z Traveling Positioning Accuracy |
±0.03 |
|
4 |
X,Y,Z Repositioning Accuracy |
±0.03 |
|
5 |
Table Surface |
T-slot (Option: Vacuum and T-slot table combined) |
|
6 |
Frame |
Welded Structure |
|
7 |
X, Y Transmission |
Rack and Pinion Drive, Hiwin Rail Linear Bearings |
|
8 |
Z Structure |
Hiwin Rail Linear Bearings and Ball Screw |
|
9 |
Max. Power Consumption |
(Without Spindle) 1.5Kw |
|
10 |
Max. Rapid Travel Rate |
20000mm/min |
|
11 |
Max. Working Speed |
15000mm/min |
|
12 |
Spindle Power |
3.0/4.5/6.0/7.0kw HSD |
|
13 |
Spindle Speed |
0-24000RPM |
|
14 |
Drive Motors |
Stepper system |
|
15 |
Working Voltage |
AC380V/60Hz,3PH (Option: 220V)) |
|
16 |
Command Language |
G Code |
|
17 |
Operating System |
DSP System (options: Ncstudio/Mach3 PC Software) |
|
18 |
Computer Interface |
USB |
|
19 |
Flash Memory |
128M(U Disk) |
|
20 |
Collet |
ER32 |
|
21 |
X,Y Resolution |
<0.03mm |
|
22 |
Software Compatibility |
Type3/UcancameV9 Software (Option: Artcam Software) |
|
23 |
Relative Humidity |
30% - 75% |
|
24 |
Packing size |
1500×1170×1300mm |
-
