Quality Small Power Cnc Laser Cutting Machine 50 Watt Or 60 Watt For Plexiglass Wooden Board factory
<
Quality Small Power Cnc Laser Cutting Machine 50 Watt Or 60 Watt For Plexiglass Wooden Board factory
Quality Small Power Cnc Laser Cutting Machine 50 Watt Or 60 Watt For Plexiglass Wooden Board factory
>

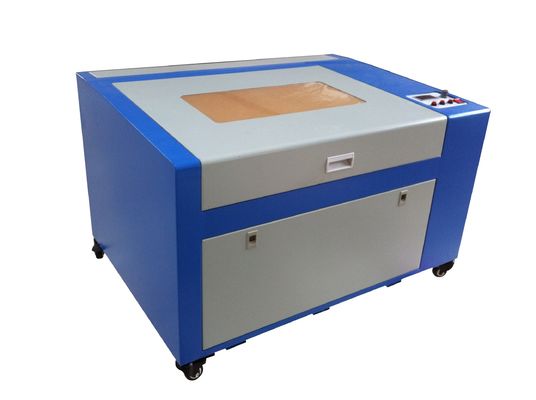

Small Power Cnc Laser Cutting Machine 50 Watt Or 60 Watt For Plexiglass Wooden Board

Specifications
Highlight:

Laser Engraving Machine

,

Laser Cutting Equipment

,

60 Watt Cnc Laser Cutting Machine
Condition:
New
Laser Power:
50~60 Watts
Working area:
600mmx400mm
Moving Speed:
0~50mm/s
Package size:
1050x650x750 Or 1400x650x750
Gross weight:
100~105kg
Tags:

Laser Cutter Machine

Laser Cutting Equipment

Laser Engraving Machine
Key Attributes
Brand Name: Promega
Model Number: Pro-LCM-50/60
Place of Origin: China
Certification: CE
Minimum Order Quantity: one set
Price: USD 600 ~ 1500 per set
Supply Ability: 10 sets per week
Delivery Time: 3 ~ 5 working days
Payment Terms: L/C, T/T
Standard Packaging: In wood case
Product Description

Small Power Laser Engravieng Machine Cnc Laser Cutting Machine 50 Watt Or 60 Watt

Applicable Material



Cloth,leather,wool,fur,acrylic,plexiglass,wooden board,plastic,resin,rubber,bamboo product,resin and other non-metal materials.



Adavantage



The machine is suitable for garment,leather,package and printing,advertisement decoration,building upholster,art gift,computer embroidery,paper product,acrylic board of plastic,middle density board etc.non-metal sheet precision cutting and other industries.



Technical Parameters





 Laser Power

 50W-60W(optional)

 Laser Type

 hermetic co2 glass tube

 Power Supply

 AC220±10% 50HZ/AC 110±10% 60HZ

 Working Area

 600mm×400mm

 Max Moving Speed

 0---500mm/s

 Worktable

 honeycomb worktable/up&down worktable

 Locating Precision

 ＜0.01mm

 Min Shaping Character

 character:3×3mm,letter:2×2mm

 Operating Temperature

 5℃---35℃

 Resolution Ratio

 ≤4500dpi

 DataTransfer Interface

 USB(offline)

 Svstem Environment

 WINDOWS 2000/WINDOWS XP/Vista/win7/win8

 Cooling Way

 water cooling and protection system

 Graphic Format Supported

 the files which CoreDraw,photoshop,AutoCAD can identify(BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DMG,DXF,PAT,CDT,CLK,DEX,

CSL,CMX,AI,WPG,WMF,EMF,CGM,SVG,SVGZ,PCT,FMV,GEM,CMX)

 Compatible software

 CorelDraw,LaserDraw

 Cutting Thickness

 0---10mm(depends on different materials)

 Cuts off the Water Supply the Protection

 yes

 Machine Dimension

(50w--1050×650×750mm)  (60w--1400×650×750mm)

 Package Dimension

 (50w--1160×760×900mm)  (60w--1660×760×900mm)

 New Weight

 50w--90kg    60w—95kg

 Gross Weight

 50w--100kg  60w—105kg
