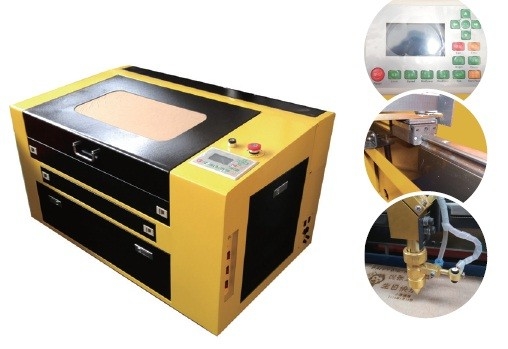

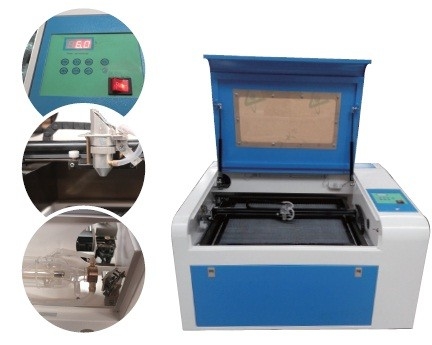

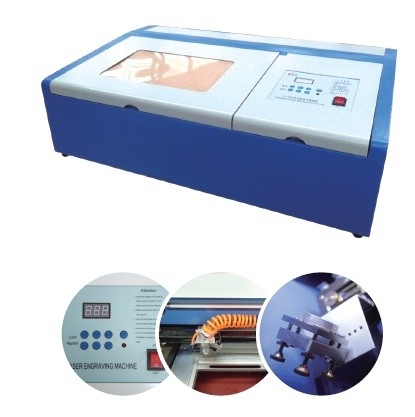

Co2 Laser Engraving Machine 320x200mm For Stamp Making And Timber Engraving
Laser Engraving Machine
,Laser Cutting Equipment
,Co2 Laser Timber engraving Machine
Laser engraving machine for Stamp making and Timber engraving 40/50/60W CO2 laser tube
Applicable Material
Rubber seals/stamp, oxhorn steel, atomic seal, wood seal, plexiglass seals, etc..
Applicable Industris
Seal/Stamp industries, small craft carving industry etc.
Technical Parameters
|
Laser Power |
40W-50W(optional) |
|
Laser Type |
hermetic co2 glass tube |
|
Power Supply |
AC220±10% 50HZ/AC 110±10% 60HZ |
|
Working Area |
320mm×200mm |
|
Max Moving Speed |
0---500mm/s |
|
Worktable |
honeycomb worktable/up&down worktable |
|
Locating Precision |
＜0.01mm |
|
Min Shaping Character |
character:3×3mm,letter:2×2mm |
|
Operating Temperature |
5℃---35℃ |
|
Resolution Ratio |
≤4500dpi |
|
DataTransfer Interface |
USB(offline) |
|
Svstem Environment |
WINDOWS 2000/WINDOWS XP/Vista/win7/win8 |
|
Cooling Way |
water cooling and protection system |
|
Graphic Format Supported |
the files which CoreDraw,photoshop,AutoCAD can identify(BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DMG,DXF,PAT,CDT,CLK,DEX, CSL,CMX,AI,WPG,WMF,EMF,CGM,SVG,SVGZ,PCT,FMV,GEM,CMX) |
|
Compatible software |
CorelDraw,LaserDraw |
|
Cutting Thickness |
0---10mm(depends on different materials) |
|
Cuts off the Water Supply the Protection |
yes |
|
Machine Dimension |
(50w--1050×650×750mm) (60w--1400×650×750mm) |
|
Package Dimension |
(50w--1160×760×900mm) (60w--1660×760×900mm) |
|
New Weight |
50w--90kg 60w—95kg |
|
Gross Weight |
50w--100kg 60w—105kg |
-
High - End Version 400w 600w 800w Laser Cutting Machine For Die Board Maker
MPS-DS1212 SERIES OF HIGH-END VERSION LASER CUTTING MACHINE FOR DIE BOARD MAKER MPS-DS, the high-end version of medium power laser cutting machine, adopts the principle of constant light path design.it keeps laser in the process of device running, materials are fixed on the platform with the moving platform, thus, it can ensure the stability of the optical path. The advantage of this laser cutting machine: 1. The laser cutting machine equipped with the laser generators
-
Laser Cutting Machine 1000W/1500W/2200W Fast Flow Generator For Die Board Making
1500W 3 Phase Metal Laser Cutting Machine for die cutting Factory Specifications: Model PMH-1812 Laser generator power 1500W max. Laser beam wave 10.6 m Power adjustment 50-1500W X axis travel 1250mm Y-axis travel 1850mm Positioning accuracy +/- 0.05mm/m Maximum positioning speed 10m/minute max. Control system motion control card / NC Transmission system screw guide Driving system Three-axis servo drive system Optical system X axis Laser moves Y axis table moves Moving system
-
Fully Automatic Auto Bender With Bending Cutting Notching And Lipping 910C Model For 1.5/2/3pt Steel Rule
Completely Computer Control Diecutting rule Auto Bending Machine for Dieboard making Main technical specifications 90 ° minimum R no repair knife 1.5 mm (support blade thickness 0.71) 2.0mm (support blade thickness 1.07) 180 ° minimum R no repair knife 2.5mm (support blade thickness 0.71) 3mm (support blade thickness 1.07) Maximum bending $ 1000 mm Maximum bending angle 120 ° Minimum 90 ° bend size 3 mm Minimum bending full circle diameter 5mm Feeding accuracy ± 0.05mm Tail
-
Digital Printing / Graphic Express Printing Unit Hydraulic Paper Cutting Machine
Hydraulic paper cutting machine Guillotine for Digital Printing for Graphic Express Printing Unit Product Description: Cutting knife and paperweight are controlled by hydraulic transmission. Fully hydraulic drive makes the machine more secure and imported hydraulic parts ensure the stability of the system. The machine has the function of a reference setting and keeping, and the effectiveness of the reference and self-diagnostic function; infrared protection and hands button
