Place of Origin:
Shanghai, China
Brand Name:
PM
Certification:
CE
Model Number:
2015
Contact Us
Video

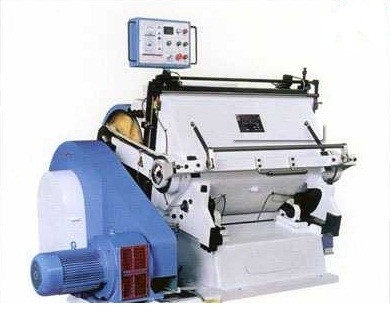

Commercial Manual Paper Die Cutting Machine Mechanical Driven
Features:
1. Sliding bearings are made of high quality alloy cooper, thus to enhance the effect of anti-friction and vibration reducing.
2. Flywheel with big moment of force and big pressure.
3. High strength due to whole iron casting by using high quality material for machine body.
Main Specifications:
|
Model |
Inner Chase Size |
Max. Rule Length |
Speed |
Motor Power |
Machine Weight |
Overall Dimension |
|
ML-750 |
750×520mm |
≤15m |
28±2 |
2.2KW |
2000kg |
1540×650×1650mm |
|
ML-900 |
930×660mm |
≤26m |
25±2 |
4KW |
3500kg |
1960×1760×1720mm |
|
ML-1100 |
1100×800mm |
≤30 |
23±2 |
5.5KW |
5000kg |
2080×1950×1900mm |
|
ML-1200 |
1200×820mm |
≤32 |
23±2 |
5.5KW |
5500kg |
2080×2050×1900mm |
|
ML-1300 |
1300×920mm |
≤38 |
16±2 |
7.5KW |
6500kg |
2050×2350×1900mm |
|
ML-1400 |
1400×1000mm |
≤38 |
16±2 |
7.5KW |
7000kg |
2050×2450×1900mm |
|
ML-1500 |
1500×1060mm |
≤40 |
16±2 |
11KW |
8000kg |
2050×2540×1900mm |
|
ML-1600 |
1600×1250 mm |
≤43 |
14±2 |
11KW |
12000 kg |
2300×2700×2400mm |
|
ML-1800 |
1800×1300 mm |
≤50 |
14±2 |
11KW |
14200 kg |
2300×2900×2400mm |
|
ML-2000 |
2000×1400 mm |
≤58 |
14±2 |
15KW |
16500 kg |
3500×2200×2400mm |
|
ML-2200 |
2200×1400 mm |
≤70 |
13±2 |
15KW |
18000 kg |
3380×2400×2580mm |
|
ML-2500 |
2500×1600mm |
≤80 |
11±3 |
22KW |
22000kg |
3680 ×2400×2580mm |
|
ML-2800 |
2800×1600mm |
≤85 |
11±3 |
30KW |
24000 kg |
4000 ×2400×2580 mm |
|
ML-3000 |
3000×1600mm |
≤90 |
11±3 |
30KW |
26000 kg |
4200 ×2400×2580 mm |
Machine packed in wooden case , standard export packing
Machine shipped within 20 days after receiving payment
1. The whole machine has full 1 year warrantey, we will send the parts for replacing free of charge during warranty.
2. We will provide lifetime service online, you can get technical support within 24 hours by Email/ Skype/ Remote assistance etx.
3. Proffesionl person reply your questions.
