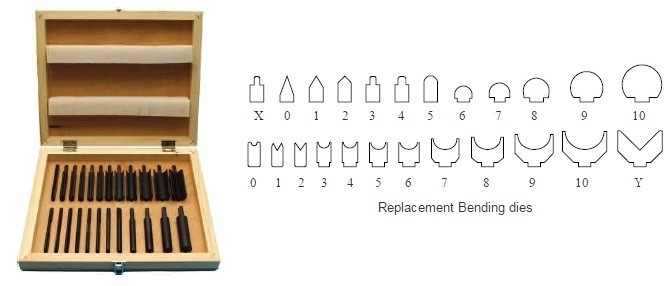

Manual bender Euro Style with 41 pcs matrix for dieboard making and Cutting formes making
Die Cutter Machines
,Die Cutting Machine

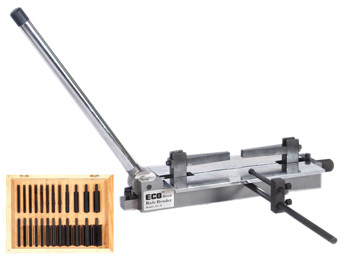

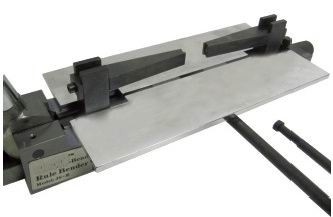

Pioneer-Bend is designed for the purpose of bending for steel rules with high quality requirement.
Max. capacity : 6pt.(soft)×50mm
Size : (L)1100×(W)620×(H)150mm.
Weight : 31.90kg.
Characteristics :
Suitable for any complicated bend.
Solid and rigid steel construction.
Unique adjustment system guarantees handle movement is the same for any bend required.
Large mechanical advantage enable thick rules to be bend with minimum effort.
Repetition bends can be produced without fear of inconsistency.
Field of Application & Work Stations:
Pioneer-Bend is designed for the sole purpose of bending of steel rules used for die-cutting and creasing of paper, cardboard and corrugated board.
·Pioneer-Bend is a manual device, and does not carry magnetic or electric requirements.
·Pioneer-Bend is to be installed on a suitable working table and operated in a die-room.
Operation Diagrams
Product Functions Explanation:
1)Suitable for bending different types of cutting knives set with complex shapes.
2)The machine is made of firm and solid alloyed steel.
3)With the unique adjuster, easy to operate when bending each type of cutting knives set.
4)Through adjusting the screw position, easily achieve the ultimate bending position.
5)The ingenious design makes the bending tools achieve consistency completely.
-
