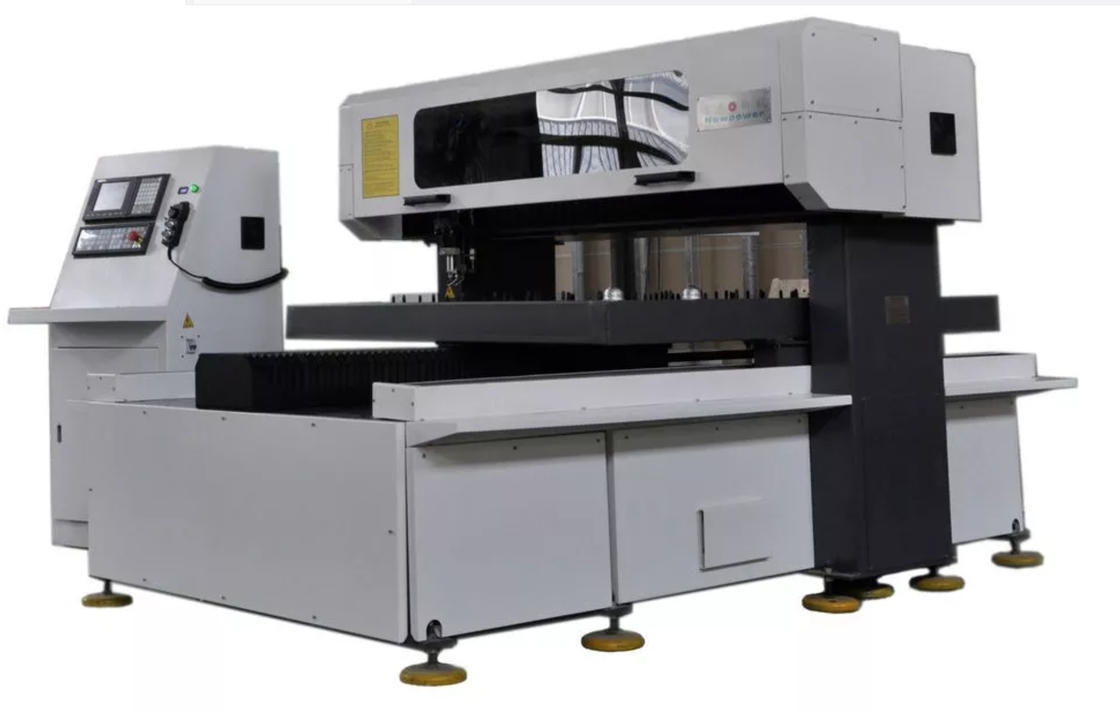

1500W Cnc Laser Cutting Machine For Rotary Die Board

1500W Cnc Laser Cutting Machine For Rotary Die Board

1500W Cnc Laser Cutting Machine

Rotary Die Board Laser Cutting Machine

CO2 Laser Cutter

Contact Us

Request A Quote
Product Details
Model Number::
GSI 2012
Application::
LASER CUTTING
Applicable Material:
Acrylic, MDF, Metal, Plastic, Plywood, Stone, Wood
Laser Type::
CO2
Cutting Area::
1850X1250
Cutting Spee:
0.3M/Min
Cutting Thickness::
21MM
Graphic Format Supported::
AI, DXF, Dwg
CNC Or Not::
Yes
Cooling Mode::
WATER COOLING
Control Software::
AutoCAD
Purpose:

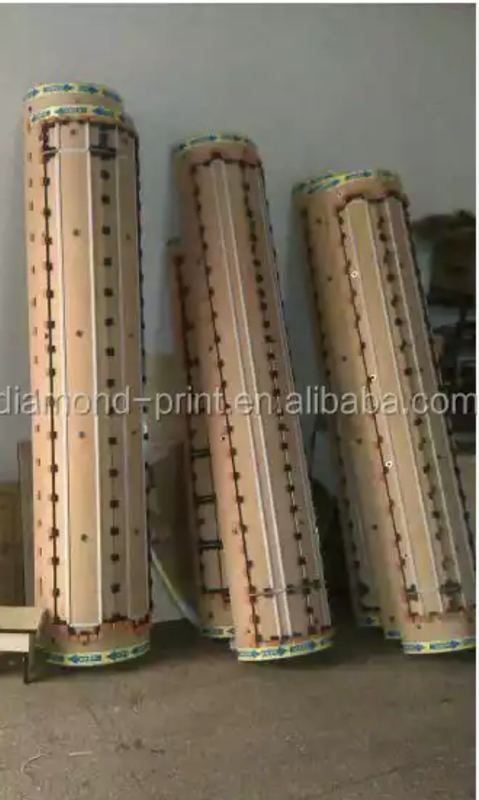

Dieboard For Cutting Formes Making
Speed::
0.3M/Min
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
in wood case, 1x20 container FCL
Delivery Time
within 40 days
Payment Terms
L/C, T/T
Product Description



Model: PM 1218



Laser Power GSI 200W or China 300W



Worktable size, 1250mm* 1850mm



Cutting Capacity

Die-borad,18 -20mm; Mild steel ≤ 3 mm; Stainless steel, ≤ 2 mm



Competitive Advantage:

1. We have been specialized in Diecutting industry since 2001

2. Our machine is similar to Rofin style laser generator, with heavy duty table to ensure fast speed and high accuracy

3. We provide complete set of dieboard making equipment like auto bender, manual bender, jigsaw machine, etc.

4. Customized size and spec /OEM available



Special characteristics of the product



High quality ball screw& linear guide transmission system

Imported Taiwan servo system

Auto-focusing system

Special smoke ventilation system that effectively remove smokes and dusts.

Scientific assembly to insure machine high precision and performance.

Machine mainly movement parts made by Cast-aluminum, to insure machine working at high speed and stable.

Light-duty design, save floor space.



Description:

  1. Technical Features
  2. Enclosure minimalist design, followed the trend for manufacturers to personalized custom.
  3. Control part adopts PLC control, stable and strong anti-jamming capability.
  4. Multi-interface options: laser can be controlled by CNC control or other remote controllers.
  5. PLC based built-in integrated diagnostic system.
  6. Low-voltage electrical part of Schneider Electric components, fully guarantee the stability of the device.
  7. From German high-voltage power supply technology, the use of PLC-based, single-chip supplemented control architecture on the market relatively high voltage power saving of 25%.
  8. Advanced resonator technology
  9. 1 year warranty



Applicable Materials

Plywood, Acrylic, PVC, Steel sheet, etc



Applicable Techniques

Box, lable, electronic borad, carton, cards, etc.



Parameters

Model PM 1218
Laser output power 200W 300w
X-axis path 1250mm
YY-axis path 1850mm
Positioning Precision ± 0.05mm/m
Max.speed of position 10m/min
Control system NC /motion card/cn
Transmission system Ball-screw&linear guide
Driving system 3 axial servo
Optical system semi-flying-optical
Moving structure gantry
Chiller system special chiller system for imported laser tube
Overall dimensions 3850mm× 220 0mm× 1400 mm
Overall Weight 1500KG
Structure open
Power supply 380V/50HZ/ 60A
