Fast Flow Generator laser cutting machine For Dieboard Making

Fast Flow Generator laser cutting machine For Dieboard Making
Fast Flow Generator laser cutting machine For Dieboard Making Fast Flow Generator laser cutting machine For Dieboard Making

Large Image :  Fast Flow Generator laser cutting machine For Dieboard Making

Product Details:
Place of Origin: NANJING, CHINA
Brand Name: DIAMOND
Certification: CE, ISO 9002
Model Number: DH-2512-2200T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 64000 - 88800/SET
Packaging Details: PLYWOOD CASE, 1 SET MACHINE NEEDS 1X40HQ
Delivery Time: 40 DAYS
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 2 SETS PER MONTH

Fast Flow Generator laser cutting machine For Dieboard Making

Description
Product Name: Laser Cutting Machine Application: Dieboard Cutting
Laser Source: Fast Flow Generator Laser Power: 1000W/1500W/2200W
Effective Cutting Area: 2500x1250mm/1850x1250mm/1500x1850mm Gas Used: CO2, Nitrogen, Helium
Plywood Thickness: Max. 50mm Cutting Accuracy: +/- 0.05mm/m
Controlling System: Moving Controlling Card/NC PA System Transmission System: Screw Guide THK Japan
Driving System: X,Y, Z Axis Servo Driver Yaskawa Japan Supporting Design Format: DXF
Electricity: 380V/415V, 50/60Hz, 3 Phase Cooling System: Big Power Chiller
Size Of Machine: 2520mm*5850mm*2035mm Weight: 5500kgs

Laser Cutting Machine For Dieboard Making



Laser cutting machine product series:



1. The machine tool adopts a gantry structure design, which makes the machine tool more stable and reliable, and has a small size.



2. Metal and non-metal automatic switching laser cutting machine, truly realize one machine for multiple uses.



3. Using precision ball screw and linear guide as transmission elements, high accuracy, fast speed, maximum running speed (no load) 24m / min, positioning accuracy ± 0.03mm / m, repeat positioning accuracy ± 0.01mm.



4. Using PA laser special numerical control system, combining the laser and the machine tool control system into one. With the development of HMI, CNC, and PLC, according to the most advanced method in the world, using WINDOWS as the operating platform, independently developed laser-oriented cutting The machine's operating system integrates laser cutting proprietary energy control functions, machine operation functions, laser operation functions, expert cutting process library, remote diagnosis and other functions.





Laser cutting machine model:HY-2512-S2200

  1. Related technical parameters of this model:

max. cutting size

2500×1250 mm
X axis 2550 mm
Y axis 1250 mm
 Z axis 100 mm

X and Y axis position accuracy

±0.03/m mm
X and Y position repeat accuracy ±0.02/m mm
 Table max. moving speed 24 m/min
Generator Different power
Movement way Fixed gantry type machine, mixed light structure
Driving way Precision ball screw + linear guide
Safety protection Fully enclosed protection of the cutting area

With comprehensive safety interlock protection

CNC system PA

Imported from Germany (not Hans laser’s made in China)

Cutting head crash protection

Protect the Z-axis mechanism

Others

Exhaust smoke and dust
Scrap collection trolley
Electric control cabinet is sealed against dust and moisture
Work area lighting
Work warning ribbon
Extended functions General software and hardware interfaces are reserved for subsequent intelligent production

Laser installation method

Fixed
  1. Device detailed configuration list
Bed frame

Interspersed welding, the whole furnace annealing.

CNC system

German PA laser high-performance CNC system

Composition:

(1)with 15 ″ color flat display

(2)Internal distance adjustment function

(3)Adaptive read-ahead function

(4)Advanced adaptive adjustment technology

(5)Laser energy control function

Servo drive Yaskawa
Precision ground screw Japan THK rail lubrication and seal protection system
Linear Guides Japan THK Precision Linear Ball Guide
Bearing

Japan NSK Precision Thrust Angle Bearings

Laser cutting head Independent design with special function to extend the life of focusing lens
Pneumatic Components

Imported SMC, Airtac

Composition:

(1)Pressure reducing valve

(2)Throttle valve, check valve, ball valve

(3)Pressure relay

(4)Cylinder

(5)Solenoid valve

(6)Three major pieces of pneumatic

Three gas automatic conversion systems, directly controlled by the process library, high pressure cutting system



Laser technical characteristics:

1) The advanced gas unit is used to automatically adjust the amount of the mixed gas through the power and then flow into the buffer area and then enter the cavity. Have fast charge, fast pumping and solar terms.



2) Excellent thermal stability The design of the resonant cavity protects all the lenses in the cavity, making the lens longer in service life and ensuring laser power and mode stability. In addition, the cavity has a simple structure, easy alignment, and a high safety factor.



3) All functions of the laser, including programming pulse generators, changing cavity pressure, and daily maintenance, are handled by interface software, which is easy to operate. Now it has been integrated into the machine tool control system to achieve a truly integrated machine control and full digital communication with the laser.



4) The machine tool can directly select a variety of laser working modes through the bus. The combination of super pulse, gate pulse and continuous wave can be arbitrarily combined to meet various complex processing requirements

 performance Parameter
 wave length 10.6um
Rated output power 1500W
Output power Max. ≥1600W
Output power stability ≤±2% Continuous

Continuous wave output power adjustable range

20w~max
Spot size 18mm
mode

TEM10* 45 ° linear polarization to the horizontal plane

Adjustable range of pulse frequency 0—1KHz
Pulse width adjustable range 100us—CW
power supply

AC 380V±5%, 50Hz 3phase,ground, 18KVA

Cooling water

50L/min,0.4—0.5Mpa,20℃

The minimum temperature must be above the dew point

Solid impurities:≤50um

Maximum water hardness: 15 degrees (German standard)

Ambient temperature 12℃—30℃
environment humidity ≤75%
Gas consumption

≤35NL/h Purity:99.996%

Reduced gas consumption if output power is reduced

External working interface of laser working status and power external control system  Digital switching signal
Output power external control 0-10V Analog signal
Same light path indication Yes
Way of working (CW),(GatedPulse)



Training and Technical service:



Warranty: 1 year



During the warranty period, if the contract product is damaged or cannot operate normally due to our manufacturing processes and materials, we will be responsible for repairing the contract product for free.



HY-2512-S1000/1500/2200 Basic components:



Main machine part: one machine tool and one laser generator

Accessories:

a laser chiller,

a set of suction fans and pipes,

a set of precision filters,

a set of two-dimensional laser adjustment frames,

a set of external light guide systems,

a 75 kW regulator set and other small accessories



Laser key components list (TOP GRADE)

No. Name Manufacturer Country
  Turbopump BECKER Germany
  Vacuum pump LEYBOLD Germany
  Resonant cavity adjustment end plate ROFIN-SINAR Tech Germany
  PLC DELTA/HITECH Taiwan
  Squirrel cage fan   Germany
  Power Probe   IMPORTED
  Touch screen DELTA/HITECH Taiwan
  Lens and Mirror II-VI USA
  Switching power supply ROFIN-SINAR Tech Germany

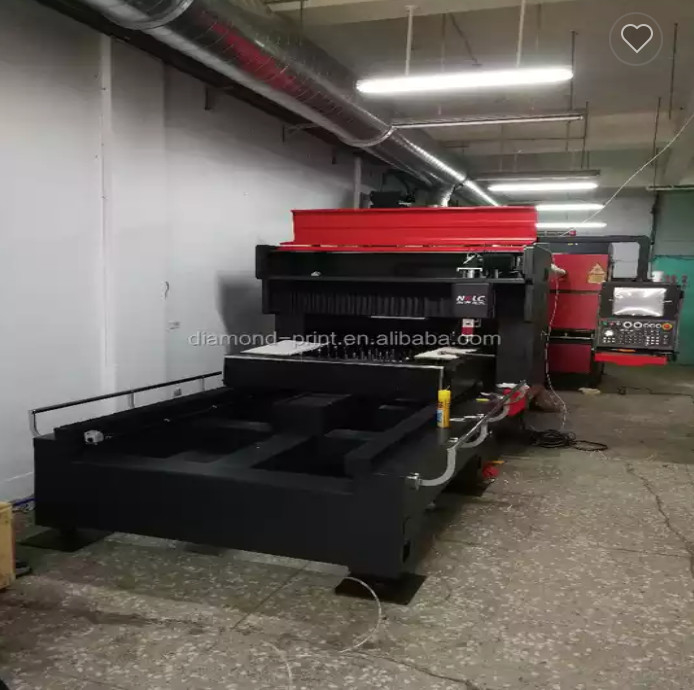

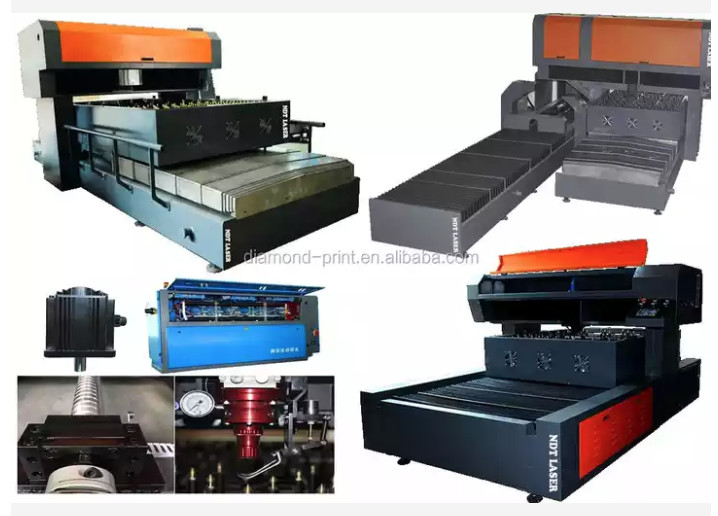

Fast Flow Generator laser cutting machine For Dieboard Making 0Fast Flow Generator laser cutting machine For Dieboard Making 1



Fast Flow Generator laser cutting machine For Dieboard Making 2Fast Flow Generator laser cutting machine For Dieboard Making 3





Fast Flow Generator laser cutting machine For Dieboard Making 4Fast Flow Generator laser cutting machine For Dieboard Making 5





Fast Flow Generator laser cutting machine For Dieboard Making 6Fast Flow Generator laser cutting machine For Dieboard Making 7
