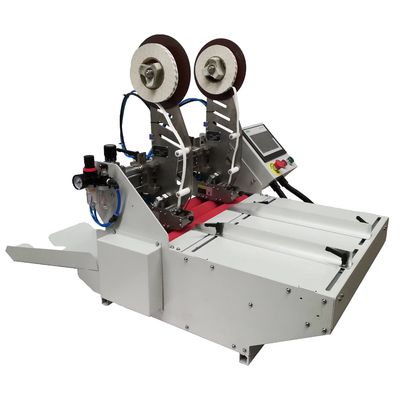

TMB 500 Semi-Automatic double sided tape applicator machine will reduce the time spends handing products which are folders,boxes, displays, stands etc.
The machine can apply the double sided tape to all the material which is with good hardness and flatness similar as
Paper,Cardboard, Corrugated board, Wooden, PVC and the others. The thinnest paper 100 g/m² upto 20 mm thickness wooden.
Specifications:
|
Model
|
TMB 500
|
|
Product width
|
25mm (1") upto 500mm (20")
|
|
Product materials
|
Envelope ,A4 paper ,carton box ,PVC, floor board,and the others
|
|
Product Thickness (Min paper grammage)
|
100 g/m2 (for paper)
|
|
Product Thickness (The other material)
|
0.1mm upto 20mm (0.8")
(Such as floor board ,Corrugated board ) |
|
Applicator Heads standard/max
|
1 upto 3 Heads
|
|
Max number of spots
|
4 spots (8 spots can be customized)
|
|
Min spot length/
Min tape strip length |
25 mm (1")
|
|
Min distance between spots/
Min distance between tape strip and the next |
25 mm (1")
|
|
Min horizontal distance between tape strips
|
76 mm (3") (center to center)
|
|
Tape thickness
|
0.1 mm - 2 mm
|
|
Tape width (max)
|
5mm(0.2") upto 30mm(1.2")
|
|
Internal tape roll diameter
|
76 mm (3")
|
|
Max external tape roll diamete
|
400 mm (15.75")
|
|
Languages
|
English, Italian, German, French, Spanish,Russia
|
|
Speed
|
30m/min (100 ft/min)
|
|
Electricity needs
|
220V 50HZ /110V 50HZ
|
|
Compressor air needs
|
6 bar
|
|
Weight
|
65 kg
|
|
Dimension
|
800x500x680mm (L x W x H)
|
|
Warranty
|
12 Months
|
