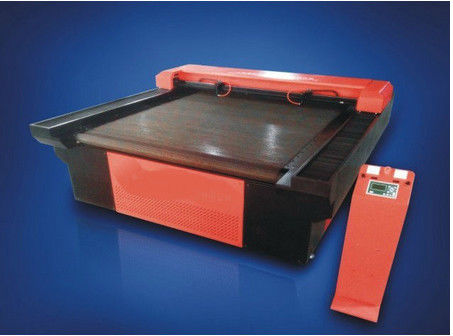

Large Format Double Y-Axis Co2 Fabric Laser Cutting Machine For Home Textile
Laser Engraving Machine
,Laser Cutting Equipment
,Double Y Axis Laser Cutting Machine
Specifications
Fabric Laser Cutting Machine
1. double y-axis high speed laser cutting
2. CNC control
3. high speed
Laser cutting is done by high temperature process. It can make cut edge to close up automatically. Hence, no need to recut the patterns after one-time cutting.
High efficiency and easy operation:
Just upload the graphics into the cutting machine and laser will cut fabric into shapes as designed.
Conveyor working table with auto-feeding device realizes continuous processing and automatic production, saving time and labor cost.
Laser Cutting Machine Applications
It is suitable for textile garment fabrics and flexible fabrics.
It is suitable for home textile industry.
Textile Fabric Laser Cutting Machine:
- Different working sizes available
- No tool wear, non-contact processing
- Smooth, clean cutting edges; no reworking necessary
- No fraying of fabric, No deformation of fabric
- High precision, high speed and accuracy of repeatability
- Automated processing with conveyor and feeding systems
- Processing of very large formats by edgeless continuation of cuts possible
- Complete exhaust and filtering of cutting emissions possible
- Easy to use via a PC design program
- Optional marking systems (e.g. Ink Marker)
Laser Cutting Machine Technical Parameter
cutting area:1800×1600mm
laser power: 100W/ 150W
Max cutting speed:36000mm/min
Repeating location:<0.01/mm
power supply :AC110/ 220±10%, 50HZ
Total power:<1250W
working type: Double cutting
Format support :BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DMG,DXF etc.
-
