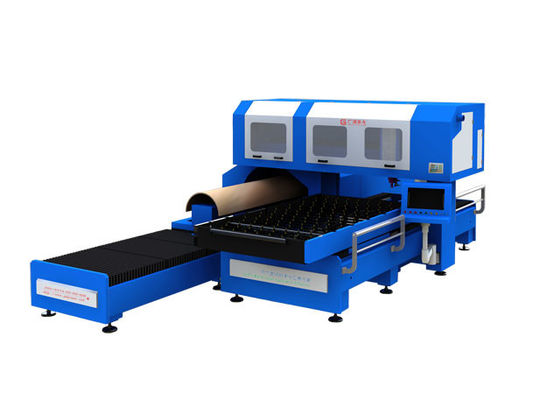

1500w 3 Phase CO2 Metal Laser Cutting Machine With Flat / Rotary Die Cutting
Laser Engraving Machine
,Laser Cutter Machine
,1500w CO2 Laser Cutting Machine
1500W 3 Phase Metal Laser Cutting Machine for Flat and Rotary die cutting Factory
Specifications:
| Model | PMH-1812R |
| Cutting area |
1300mm×2500mm 300mm-800mm*3000mm |
| Laser generator | Axis fast current carbon dioxide laser |
| Laser beam wave length | 10.6um |
| Laser power | 1500w |
| Beam way | Mixed beam shooting |
| Moving way | Accurate Leading Bar |
| Position accuracy | <0.05mm |
| Working speed | 0-1000mm/min |
| Working voltage | AC380V±10% 50HZ |
| Total power | <20Kw |
| Working temperature | 0℃~45℃ |
| Working moisture | 5%-95% (no cooling water) |
| Cooling way | Intelligent water cooling |
| Design format | PLTAI,DWG,DXF, etc. |
| Total machine weight | 3500kg |
| Size | 7500mm*3500mm*2100mm (LxWxH) |
Description:
- Technical Features
- Enclosure minimalist design, followed the trend for manufacturers to personalized custom.
- Control part adopts PLC control, stable and strong anti-jamming capability.
- Multi-interface options: laser can be controlled by CNC control or other remote controllers.
- PLC based built-in integrated diagnostic system.
- Low-voltage electrical part of Schneider Electric components, fully guarantee the stability of the device.
- From German high-voltage power supply technology, the use of PLC-based, single-chip supplemented control architecture on the market relatively high voltage power saving of 25%.
- Advanced resonator technology
- 1 year warranty
Applications:
|
Business Organizations |
Dieshop, Dieboard factory, Printing press, Packaging factory, Moulding factory |
Competitive Advantage:
1. We have been specialized in Diecutting industry since 2001
2. Our machine is similar to Rofin style laser generator, with heavy duty table to ensure fast speed and high accuracy
3. We provide complete set of dieboard making equipment like auto bender, manual bender, jigsaw machine, etc.
4. Customized size and spec /OEM available

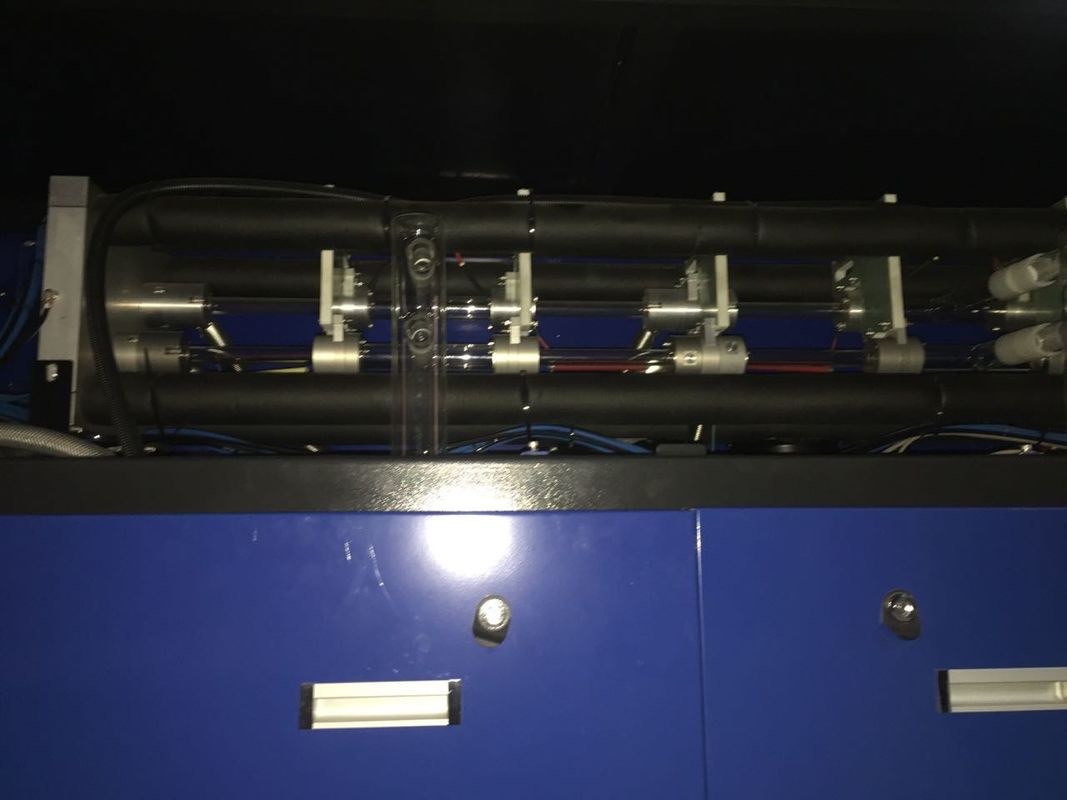

Laser system diagram
Using multiple stable resonator design to improve power stability and laser mode stability
1. Light bridge supports, trachea and activities center with three positioning system consisting of thermal deformation
2. The heat from the rack, the heat exchanger consisting of a turbine fan mount dual seismic isolation system
3. The beam shaping system with integrated resonator design
-
